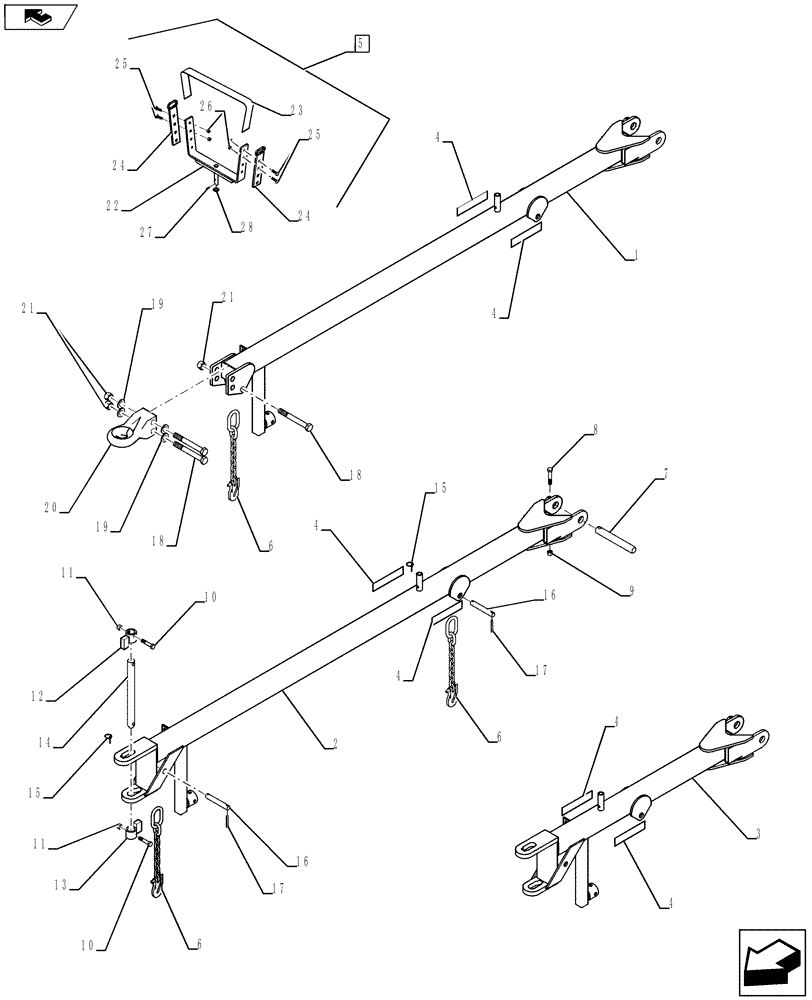

Запчасти Case IH 3580 (39.100.03[01]) - FRONT HITCH REVISED (YCS015063 - CURRENT) (39) - FRAMES AND BALLASTING

1

84547532

HITCH

1шт.

2

84547530

HITCH

60' AND 70' DRILL. LENGTH OF PART 130.90".

1шт.

3

84547534

HITCH

50' DRILL. LENGTH OF PART IS 64.96".

1шт.

4

22903

DECAL

2шт.

5

GH-951A

SUPPORT

Does Not Include 26 & 27

1шт.

6

87619912

CHAIN

3шт.

7

84205397

PIN

1шт.

8

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

9

19670

NUT,5/8"-11, GB

1шт.

10

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

11

85700693

NUT,5/8" - 11, Gr C

2шт.

12

87505049

LOCK PIN

Top

1шт.

13

87505047

LOCK PIN

Bottom

1шт.

14

87420139

PIN,38.1mm OD x 439mm L

1шт.

15

6874

LINCH PIN

2шт.

16

87420138

PIN

2шт.

17

3661

LOCK PIN,3/8" x 3", Slotted

2шт.

18

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

3шт.

19

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

20

87506220

HITCH

1шт.

21

9626600

NUT,1"-8, GC

3шт.

22

GH-951

STRAP

1шт.

23

9283

STRAP

1шт.

24

GH-952

STRAP

2шт.

25

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

4шт.

26

9637692

NUT,3/8"-16, GB

4шт.

27

38-11620

PIN,1/4" x 1 1/4", Slotted

1шт.

28

3443

WASHER,0.75" ID x 1.25" OD x 0.07" Thk

1шт.

29

84335866

WARNING DECAL

Hitch Bend Hazard

1шт.
