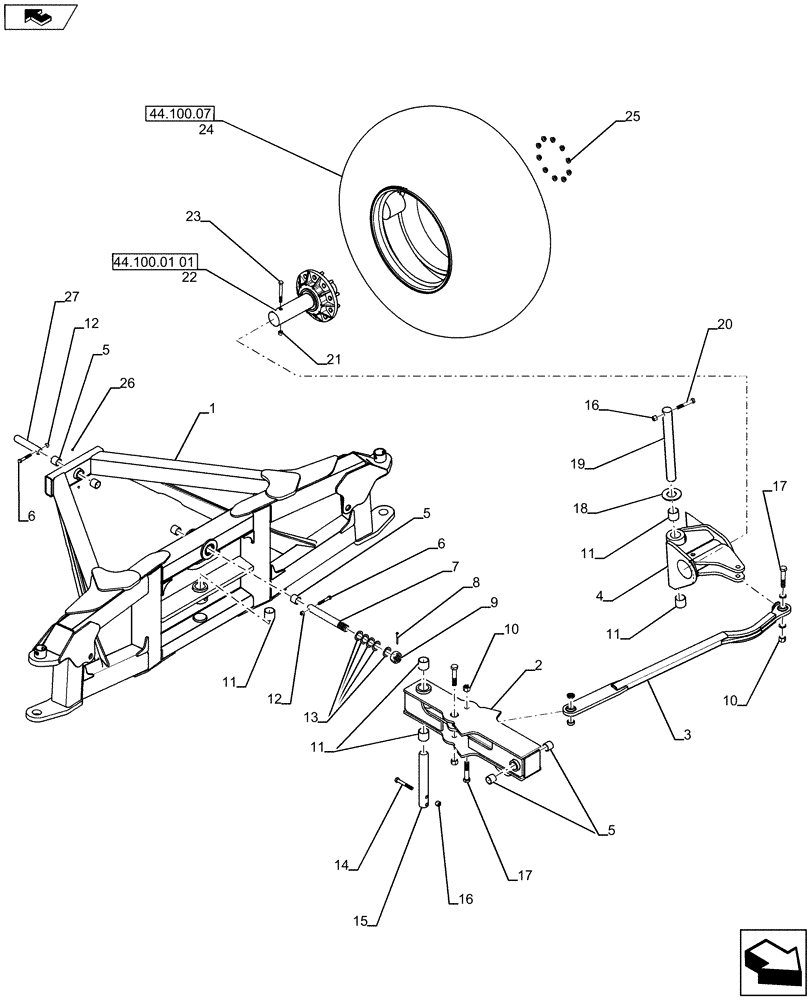

Запчасти Case IH 3580 (39.100.02[01]) - FRONT AXLE REVISED (YCS015063 - CURRENT) (39) - FRAMES AND BALLASTING

1

84543847

FRAME

Not Serviceable Please See Notes

1шт.

2

84544043

FRAME

Includes 5 & 11 As Shown

1шт.

3

84544029

ADJUSTER

LH Or RH

1шт.

4

84205381

HOUSING

RH, Includes 11 As Shown

1шт.

4

84205385

HOUSING

LH, Includes 11 As Shown

1шт.

5

87686636

BUSHING,1-1/2" ID x 1-3/4" OD x 1-1/2" Thk

6шт.

6

88403

SCREW

2шт.

7

84249764

PIN

1шт.

8

80752

COTTER PIN,1/4" x 2 1/2"

1шт.

9

86528705

SLOTTED NUT

1шт.

10

231-41414

NUT,7/8"-9, GB

3шт.

11

87686077

BUSHING

5шт.

12

87530607

NUT

1шт.

13

87334418

WASHER,1.5" ID x 2.25" OD x 0.07" Thk

1шт.

14

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

1шт.

15

84546010

PIN

1шт.

16

86639566

NUT,5/8"-11, GB

2шт.

17

426-1472

BOLT,Hex, 7/8" - 9 x 4-1/2", Gr 8

3шт.

18

4219

WASHER

Washer, 2.062" I.D. X 4.250" O.D. X 0.188" Thick

1шт.

19

84205400

PIN

1шт.

20

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

21

280375

NUT,3/4"-10, GC

1шт.

22

84551188

SPINDLE

Spindle, Slotted Nut And Washer(51200133) Only

1шт.

23

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

1шт.

24

Procure Locally, Tire 30.5L-32 12PR R3 AWT T/L

1шт.

25

7667

FLANGE NUT,Flg, 3/4"-16, G8

10шт.

26

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

2шт.

27

84205398

PIN

1шт.
