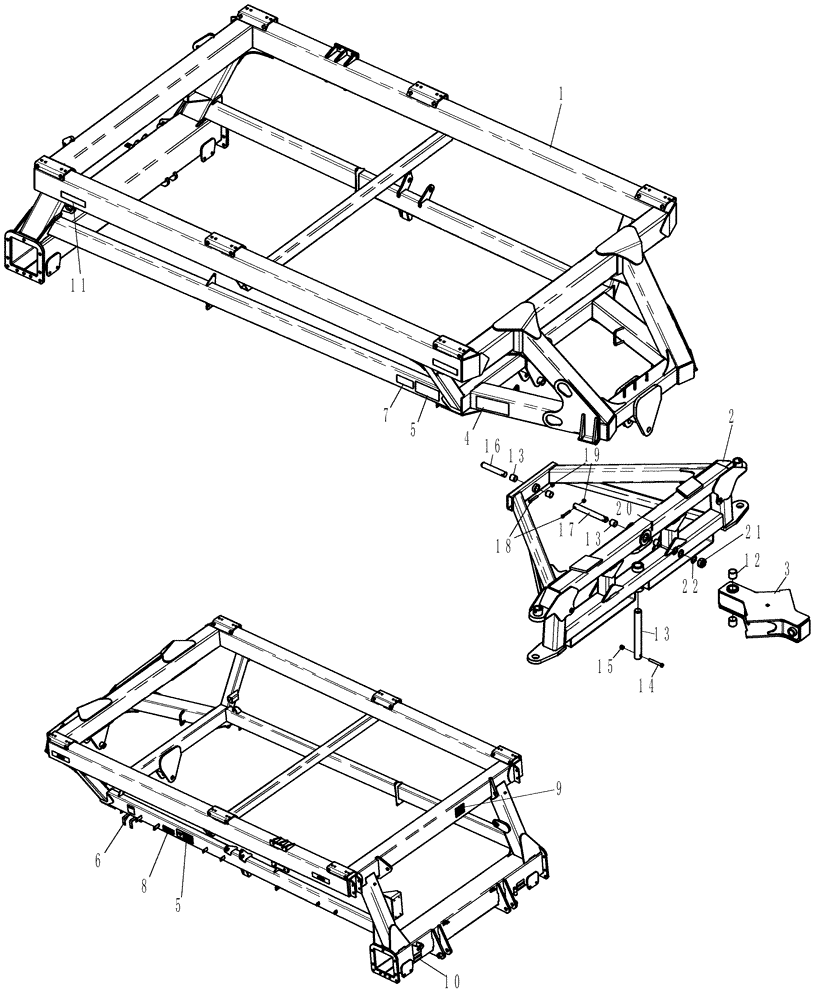

Запчасти Case IH 3580 (39.100.01) - FRAME - DECALS / FRONT AXLE (39) - FRAMES AND BALLASTING

1

84205324

FRAME

580 Air Cart

1шт.

2

84205365

FRAME

Front Axle

1шт.

3

84205395

HITCH

Front

1шт.

4

GL-700.19

DECAL

electrocution hazard

2шт.

5

GD-500.77

CAUTION DECAL

hydraulics

2шт.

6

87503916

DECAL

hydraulic flow

1шт.

7

22408

DECAL

vr drive filter maintenance

1шт.

8

GL-700.01

DECAL

manifold lift lever

1шт.

9

GD-300.05

DECAL

attention fan

1шт.

10

412907A1

DECAL

reflector red 2.9" x 4.3"

2шт.

11

22903

DECAL

retroreflective amber 2" x 9"

4шт.

12

84205418

SPACER

Tube, Spacer 20.5mm

2шт.

13

84205414

PIN

50.8 mm x 388 mm ul

1шт.

14

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

1шт.

15

86639566

NUT,5/8"-11, GB

3шт.

16

84205398

PIN

38.1 mm x 188 mm ul

1шт.

17

84249764

PIN

38.1 mm x 254 mm ul Chrome

1шт.

18

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

19

87530607

NUT

1/2"-13, GB

2шт.

20

432-1640

COTTER PIN,1/4" x 2 1/2"

1шт.

21

86528705

SLOTTED NUT

1 1/2"-12, G2

1шт.

22

87334418

WASHER,1.5" ID x 2.25" OD x 0.07" Thk

1 33/64" id 2 1/4" 14ga

5шт.
