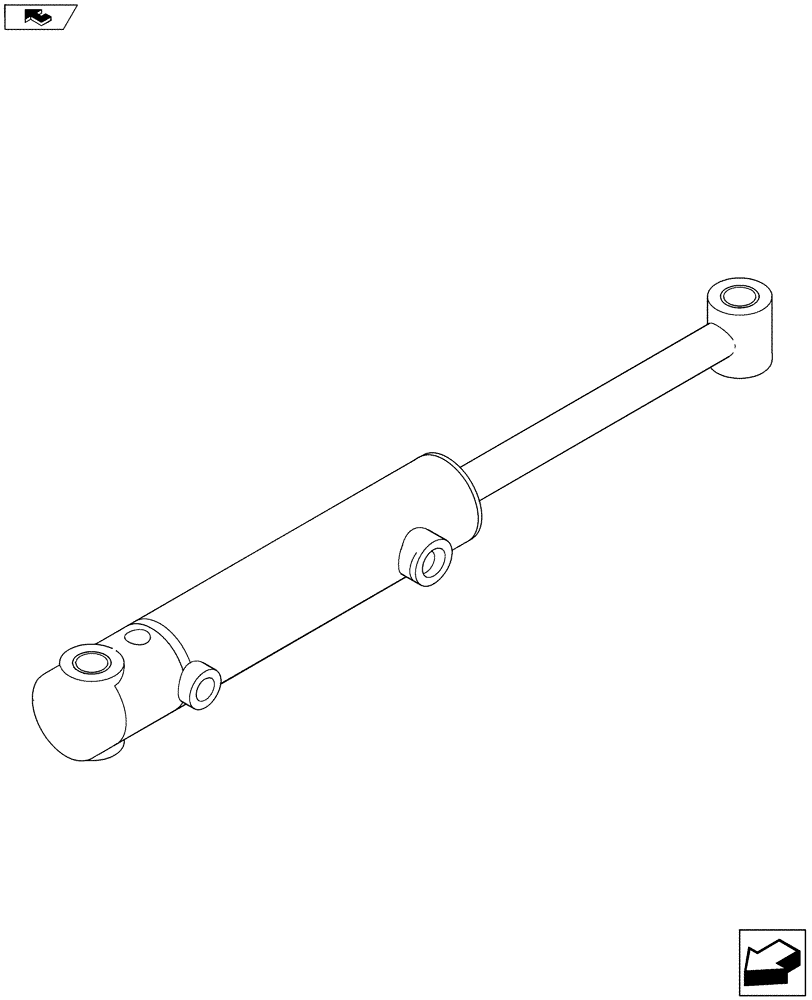

Запчасти Case IH 3580 (35.116.02[01]) - DELUXE AUGER CYLINDER INNER (35) - HYDRAULIC SYSTEMS

1

87737800

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 162.05mm Stroke

1.5" X 6.375", 3000 Psi, Complete Assembly As Shown

1шт.

87737800R

REMAN-HYD CYLINDER

3580 (3/10-)

1шт.

87737800C

CORE-HYD CYLINDER

Return Number

1шт.

2

87737802

BUSHING

Composite, .75X.625X1.875L

1шт.

3

87737801

BUSHING

Composite, .75 X .625X1.5L

1шт.

4

87333768

NUT,1/2" - 20

.500-20 GRC Z

1шт.

5

87034454

HEAD

1шт.

6

87029766

PISTON,1/2" ID x 1-1/2" OD x 1/2" Thk

1.5"

1шт.

7

84262412

HYD TUBE,6.38" L

Cylinder, 1.5"- 06.38" - 0.50"

1шт.

8

84262414

PISTON ROD

Weldment, 4.00" - 06.38"

1шт.

9

84262415

SEAL KIT

For Ref 1

1шт.
