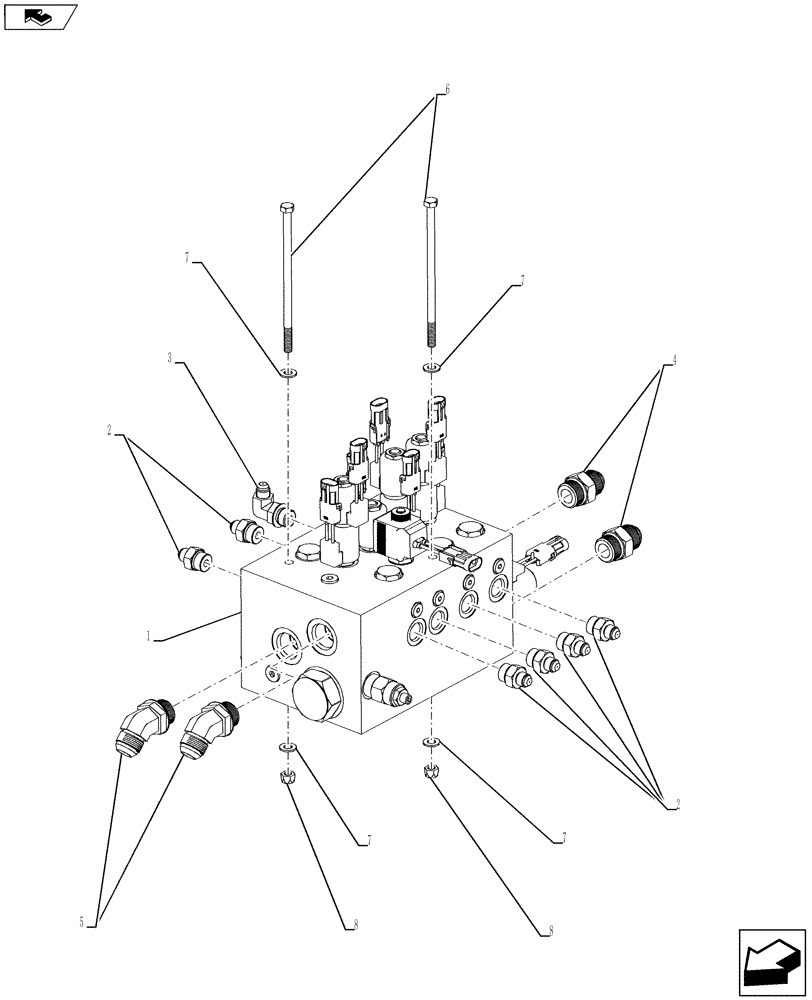

Запчасти Case IH 3580 (35.104.02[01]) - HYDRAULICS - DELUXE AUGER VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

84556425

VALVE

Assembly, Incl 35.104.02 [02]

1шт.

2

84555687

HYD CONNECTOR

Incl O-Ring

6шт.

3

367841A1

ELBOW

1шт.

4

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl O-Ring

2шт.

5

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl O-Ring

2шт.

6

85807859

BOLT,Hex, 5/16" - 18 x 6 1/2", Gr 5

2шт.

7

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

4шт.

8

86629544

NUT,5/16” – 18, GR B

2шт.
