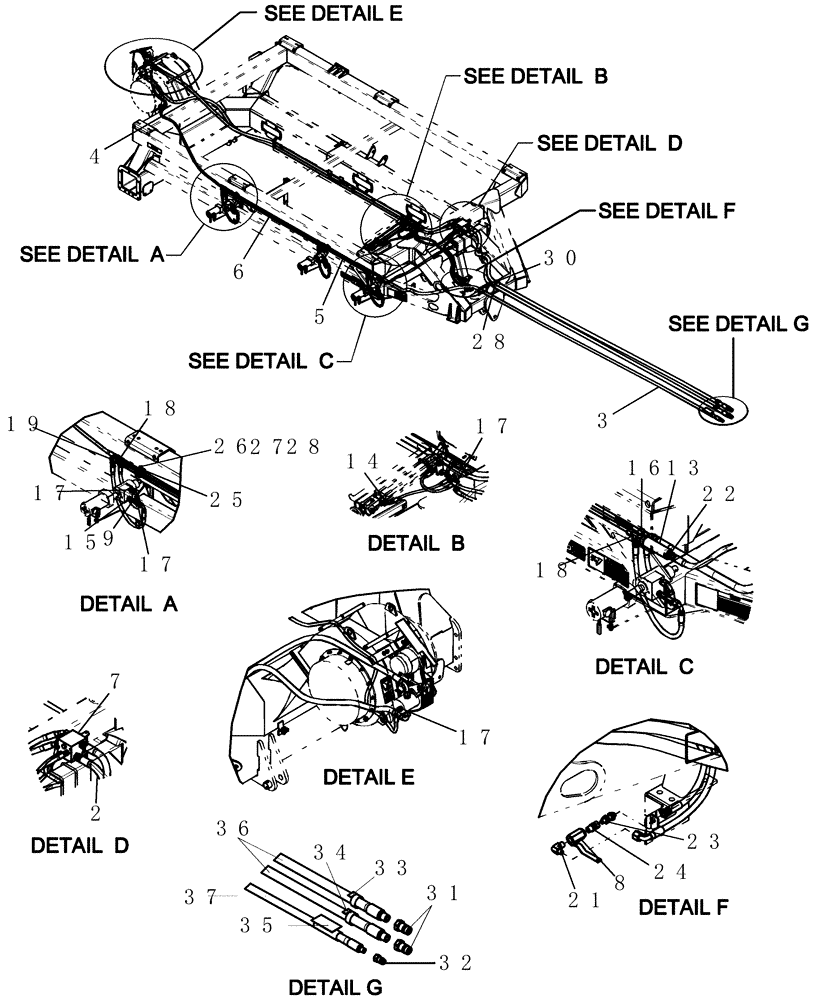

Запчасти Case IH 3580 (35.104.00) - HYDRAULICS - LAYOUT (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

HYD HOSE TBH CART PRESSURE

1шт.

2

NSS

NOT SOLD SEPARAT

HYD HOSE TBH CART RETURN

1шт.

3

NSS

NOT SOLD SEPARAT

COL CASE DRAIN VR TBH

1шт.

4

NSS

NOT SOLD SEPARAT

KIT,HYD HOSE FAN, METER, MNFLD

1шт.

5

22517

LINE

hydraulic 1/2" od x 31" ~ 1/2" fjic x 1/2" fjic

2шт.

6

84268227

HYD TUBE,12.70 mm OD x 1550 mm L

12.7 mm x 1550 mm

2шт.

7

NSS

NOT SOLD SEPARAT

1шт.

Refer to 35.104.02

1шт.

8

412764A1

HYDRAULIC VALVE,3/8" FPT x 3/8" FPT

ball 3/8" fpt

1шт.

9

22447

VALVE

1 1/4" gpm p. comp deltrol pressure compensated

3шт.

13

87504025

FILTER

hyd in-line 8forb 25 m

1шт.

14

21395

FITTING

3/8" mpt x 1/4" mjic with .0313" orifice

2шт.

15

22448

FITTING

hydraulic - straight adapter 3/8" morb x 3/8" morb

3шт.

16

412756A1

FITTING

1/2" mb 1/2" fjx

1шт.

17

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

11шт.

18

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

5шт.

19

216791

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

21

235131

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.

22

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

23

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

24

86533577

HYD CONNECTOR

#6 9/16-18 37º 3/8-18

1шт.

25

FLX3169

CLAMP

plastic, hydraulic tube

4шт.

26

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

27

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

28

9637692

NUT,3/8"-16, GB

3шт.

30

CC-106

HOSE CLAMP

for 4 hoses

1шт.

31

9358

QUICK MALE COUPLING,1" - 11.5 NPTF

1"

2шт.

32

9412

QUICK MALE COUPLING

1/2"

1шт.

33

GL-700.32

DECAL

fan pressure

1шт.

34

GL-700.33

DECAL

fan return

1шт.

35

GL-700.42

DECAL

drain

1шт.

36

87500077

HYDRAULIC HOSE,25.4mm ID x 6401mm L, SAE 100R17

1" x 252" fl

2шт.

37

87500627

HYDRAULIC HOSE,19mm ID x 5512mm L

3/4" x 217" fl, 1/2" mpt x 1/2" fjic

1шт.
