(61.904.AC[01]) - TANK PRESSURE, 555 TOE BEHIND, DOUBLE SHOOT

Запчасти Case IH 3555 (61.904.AC[01]) - TANK PRESSURE, 555 TOE BEHIND, DOUBLE SHOOT (61) - METERING SYSTEM

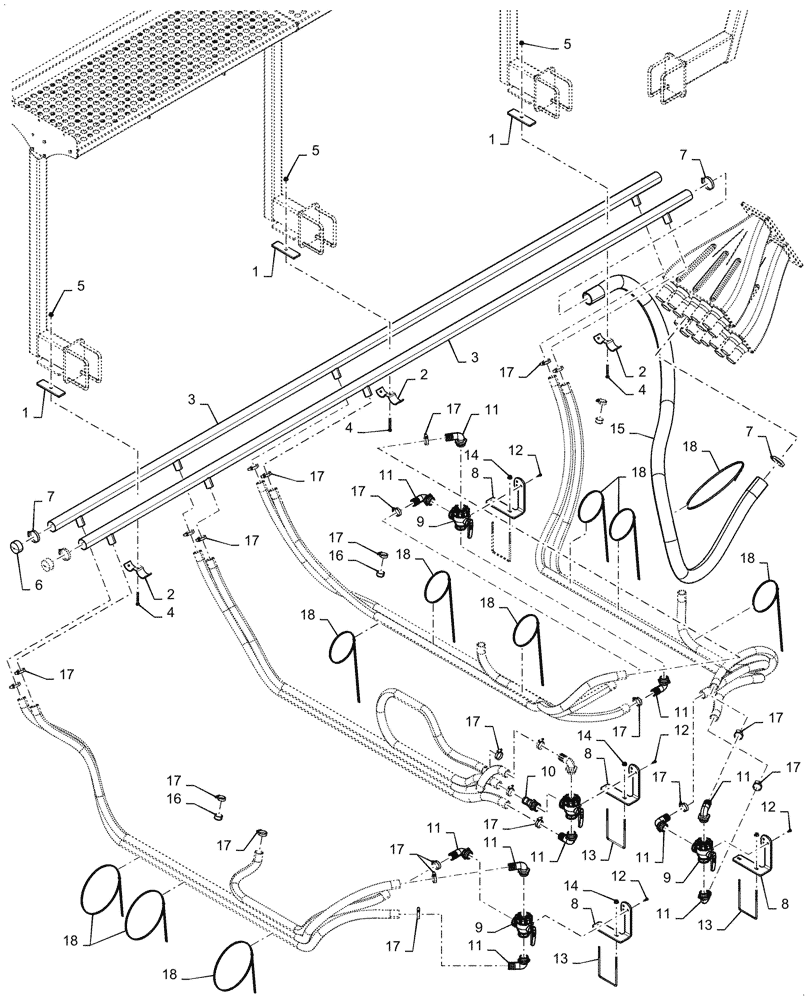

Схема запчастей Case IH 3555 - (61.904.AC[01]) - TANK PRESSURE, 555 TOE BEHIND, DOUBLE SHOOT (61) - METERING SYSTEM
11
17
4
7
18
15
10
11
7
17
17
1
17
17
18
18
18
11
8
17
14
18
1
17
9
5
5
11
18
17
12
17
17
17
5
13
11
3
13
14
2
6
17
12
11
17
12
2
17
11
18
2
1
7
3
16
9
12
13
18
8
8
4
17
16
9
11
4
17
17
11
8
14
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47615447

PLATE

Mounting Black

3шт.

2

VF-503

CLAMP

Tube

3шт.

3

47614344

TUBE

Pressure

2шт.

4

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

3шт.

5

86619802

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

6

4731

CAP

2.5" ID

2шт.

7

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

6шт.

8

47602941

BRACKET

Pressurization Valve Black

3шт.

9

47602986

VALVE BODY

3 Way

3шт.

10

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

2шт.

11

87419378

FITTING,1-1/2" Male Thread x 1-1/2" 90 Degree Hose Barb

1.5" x 1.5" Hose Barb

7шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

13

47602771

U-BOLT

M8

3шт.

14

86619801

FLANGE NUT,M8 x 1.25, Cl 8

6шт.

15

47688565

HOSE, BULK

50 Foot Bulk Roll Cut To Length

1шт.

16

8060

CAP

38.1 x 19.05 mm

5шт.

17

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

23шт.

18

87557086

CABLE TIE

30"

15шт.
