(61.904.AB[07]) - TANK PRESSURE, 435 BUSHEL 6 RUN, 435 BUSHEL 8 RUN SINGLE SHOOT, TOW BETWEEN

Запчасти Case IH 3445 (61.904.AB[07]) - TANK PRESSURE, 435 BUSHEL 6 RUN, 435 BUSHEL 8 RUN SINGLE SHOOT, TOW BETWEEN (61) - METERING SYSTEM

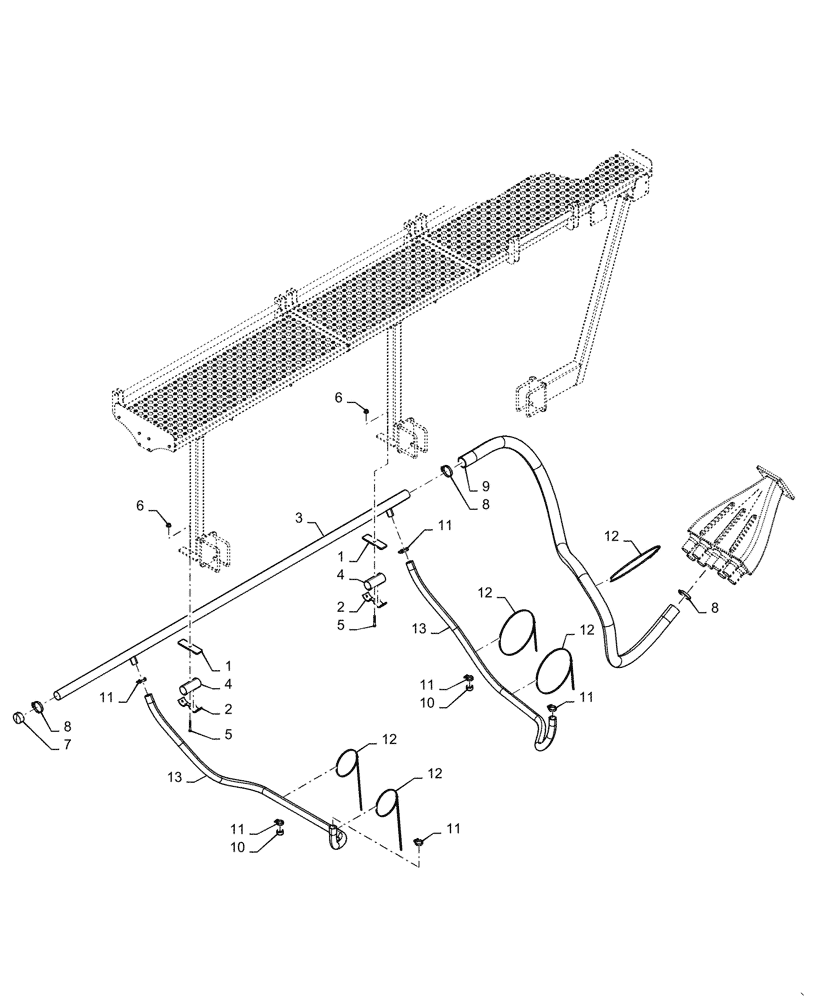

Схема запчастей Case IH 3445 - (61.904.AB[07]) - TANK PRESSURE, 435 BUSHEL 6 RUN, 435 BUSHEL 8 RUN SINGLE SHOOT, TOW BETWEEN (61) - METERING SYSTEM
6
4
11
2
8
10
8
3
5
12
1
9
10
11
7
1
12
5
11
13
13
8
2
12
11
11
11
12
12
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47615447

PLATE

Mounting

2шт.

2

VF-503

CLAMP

Distribution Tube Clamp

2шт.

3

47614338

TUBE

Pressurization

1шт.

4

47456417

TUBE

Product Delivery, Short

2шт.

5

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

2шт.

6

86619802

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

7

4731

CAP

1шт.

8

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

3шт.

9

47679558

HOSE, BULK

Cut to Length of 2600mm

1шт.

9

47688565

HOSE, BULK

Bulk 50 Foot Cut to Length of 2100mm

1шт.

9

47688565

HOSE, BULK

Bulk 50 Foot Cut to Length of 2000mm

2шт.

10

8060

CAP

2шт.

11

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

6шт.

12

87557086

CABLE TIE

8шт.

13

47688565

HOSE, BULK

50 foot bulk 1.5" PVC Cut To Length

1шт.
