(61.904.AB[04]) - METERING SEED TUBE, 435 BUSHEL, 8 RUN, SINGLE SHOOT

Запчасти Case IH 3445 (61.904.AB[04]) - METERING SEED TUBE, 435 BUSHEL, 8 RUN, SINGLE SHOOT (61) - METERING SYSTEM

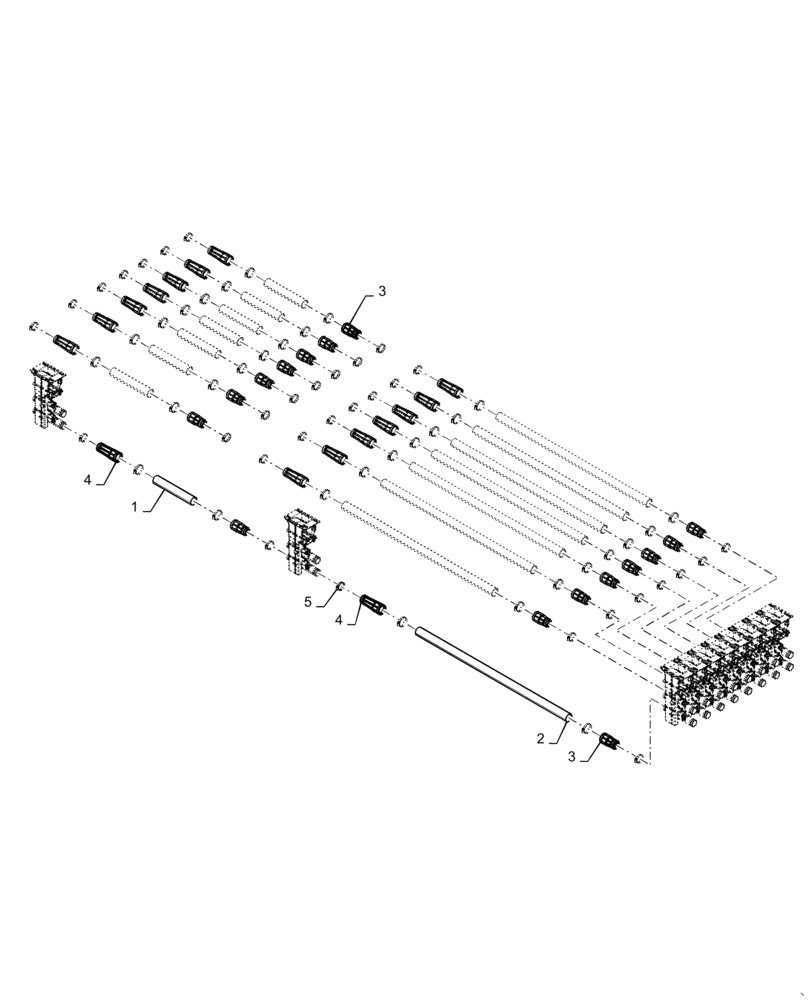

Схема запчастей Case IH 3445 - (61.904.AB[04]) - METERING SEED TUBE, 435 BUSHEL, 8 RUN, SINGLE SHOOT (61) - METERING SYSTEM
3
4
2
5
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47615437

TUBE

Product Delivery

6шт.

2

47538016

TUBE

Product Delivery

6шт.

3

47532190

COUPLING

Venturi, Inlet

12шт.

4

47532192

COUPLING

Venturi, Inlet

12шт.

5

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

48шт.

Выбрано товаров: 0
