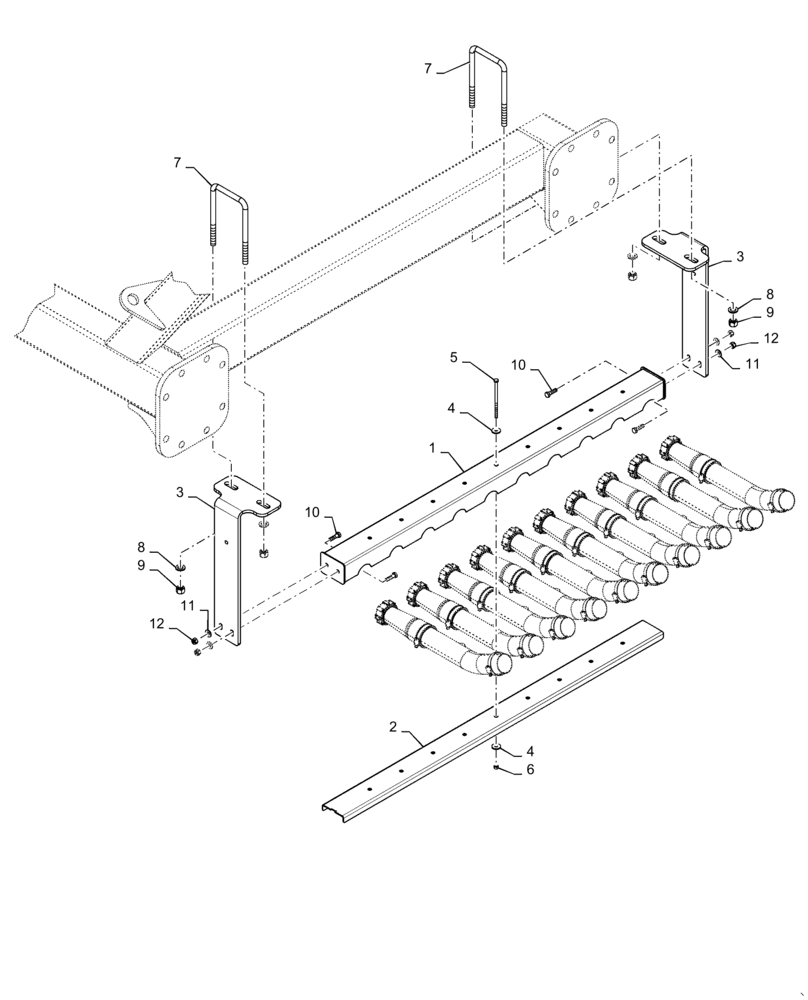

Запчасти Case IH 3445 (61.904.AB[03]) - METERING SEED TUBE MOUNT, 435 BUSHEL 6 RUN, 435 BUSHEL 8 RUN, SINGLE SHOOT, TOW BEHIND (61) - METERING SYSTEM

1

47602947

BRACKET

Tube, 10 Run

1шт.

2

47548964

TUBE

Mount, 10 Run

1шт.

3

47602968

PLATE

Tube Mount

2шт.

4

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

18шт.

5

300807

BOLT,Hex, M8 x 140, 8.8

9шт.

6

68841

NUT,M8 x 1.25, Cl 8

9шт.

7

47532012

U-BOLT

2шт.

8

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

9

146988

LOCK NUT,M16 x 2, Cl 8

4шт.

10

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

11

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

12

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.
