(61.904.AC[02]) - TANK PRESSURE, 435 TOE BETWEEN, DOUBLE SHOOT

Запчасти Case IH 3445 (61.904.AC[02]) - TANK PRESSURE, 435 TOE BETWEEN, DOUBLE SHOOT (61) - METERING SYSTEM

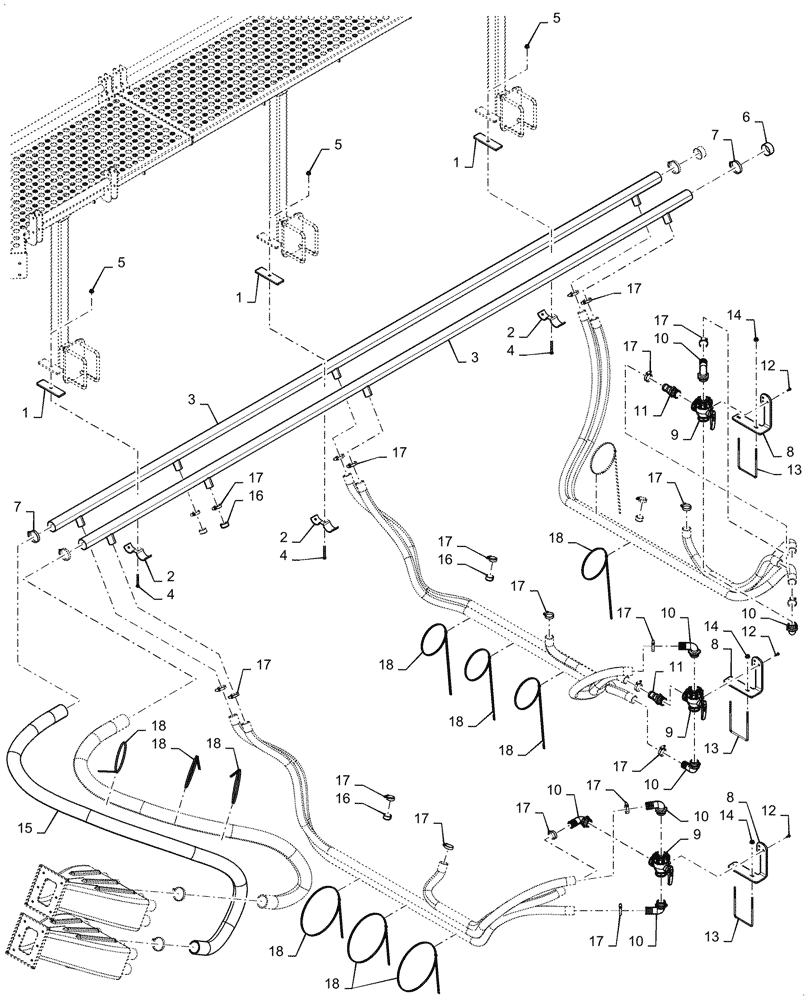

Схема запчастей Case IH 3445 - (61.904.AC[02]) - TANK PRESSURE, 435 TOE BETWEEN, DOUBLE SHOOT (61) - METERING SYSTEM
6
7
16
10
5
17
16
17
8
18
4
3
11
5
1
18
17
1
14
2
13
12
10
13
10
15
2
17
17
17
10
14
17
7
4
17
17
18
16
4
18
3
13
1
2
17
11
9
17
18
12
9
17
12
17
17
18
18
10
17
10
17
8
14
5
18
18
9
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47615447

PLATE

Mounting Black

3шт.

2

VF-503

CLAMP

Tube

3шт.

3

47614340

TUBE

Pressure

2шт.

4

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

3шт.

5

86619802

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

6

4731

CAP

2.5" ID

2шт.

7

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

6шт.

8

47602941

BRACKET

Pressurization Valve Black

3шт.

9

47602986

VALVE BODY

3 Way

3шт.

10

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

2шт.

11

87419378

FITTING,1-1/2" Male Thread x 1-1/2" 90 Degree Hose Barb

1.5" x 1.5" Hose Barb

7шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

13

47602771

U-BOLT

M8

3шт.

14

86619801

FLANGE NUT,M8 x 1.25, Cl 8

6шт.

15

47688565

HOSE, BULK

50 Foot Bulk Roll Cut To Length

1шт.

16

8060

CAP

38.1 x 19.05 mm

5шт.

17

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

23шт.

18

87557086

CABLE TIE

30"

15шт.
