Запчасти Case IH 3430 (39.110.04) - TOW BEHIND PLANTER FIELD HITCH CONNECTIONS (39) - FRAMES AND BALLASTING

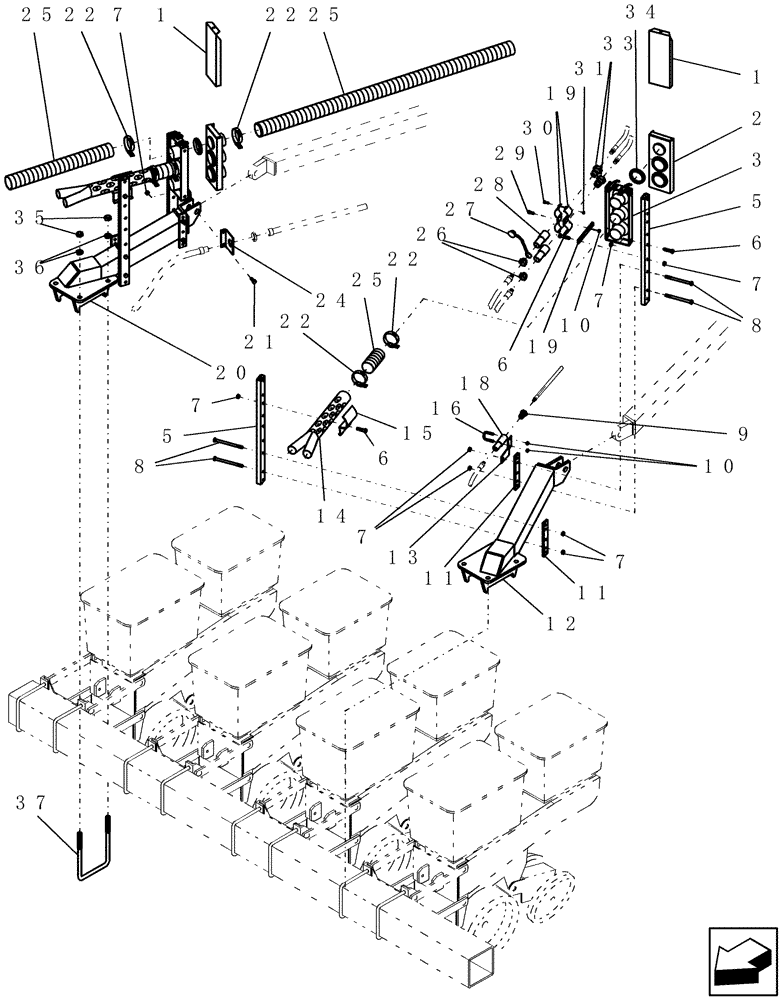

Схема запчастей Case IH 3430 - (39.110.04) - TOW BEHIND PLANTER FIELD HITCH CONNECTIONS (39) - FRAMES AND BALLASTING
7
16
25
9
15
1
1
5
7
29
2
11
13
7
5
20
8
25
7
30
37
6
14
7
19
7
12
6
18
22
10
25
19
34
21
28
8
10
36
22
22
31
22
24
27
35
3
33
26
6
11

Артикул

Название

Примечание

Количество

1

GD-254

COVER

plate hose connect

1шт.

2

GD-673

FITTING

hose connector 2 1/2"

1шт.

3

GD-672A

HOLDER

quick connect 2 1/2" female

1шт.

Includes two 413-620, four 425-146, two 5625 and four 4630

1шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

3

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

3

5625

LATCH

clamp over center

2шт.

3

4630

RIVET,Pop, 3/16" x .690"

4шт.

5

GR-102

SUPPORT TUBE,26" L

tube

1шт.

6

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

7

88902

NUT,3/8"-16

1шт.

8

280258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

1шт.

9

51200890

QUICK MALE COUPLING

3/8"

1шт.

10

281010

LOCK NUT,7/8"-14, GC

1шт.

11

GR-109

STRAP

bolt

1шт.

12

GH-442

BRACKET

mount, field hitch RH

1шт.

13

GH-601

COUPLING

hydraulic mount third line

1шт.

14

GR-101

MANIFOLD

header 1:2 primary 2 1/4" : 1 3/4"

1шт.

15

GR-103

HOSE CLAMP

primary single

1шт.

16

7938

U-BOLT

ur 5/16"-18 x 1 3/8" w x 1 5/8" d

1шт.

18

51200889

COUPLING, QUICK, FEM

3/8"

1шт.

19

GE-202

CLAMP

for two 3/4" couplers

1шт.

20

GH-441

BRACKET

mount, field hitch LH

1шт.

21

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

22

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

24

GH-139

BRACKET

plug support

1шт.

25

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

This is used from the quick connects to the header elbow

1шт.

26

3800

FITTING

reducer hydraulic bushing 3/4" mpt x 1/2" fpt

1шт.

27

6934

PLUG

dust, pioneer coupler - 3/4"

1шт.

28

6935

COUPLING, QUICK, FEM

3/4"

1шт.

29

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

30

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

1шт.

31

280129

NUT,1/4"-20

1шт.

33

6936

QUICK MALE COUPLING,3/4" - 14 NPTF

3/4"

1шт.

34

6177

OIL SEAL

quick connect 2 1/2" id

1шт.

35

280954

NUT,3/4"-10, G5

1шт.

36

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

37

7887

U-BOLT

us 3/4"-10 7 1/8" w 11" d gr5

1шт.

100

GE-518K

HOSE KIT

hose - 2 1/2"

1шт.

Includes splice tube GE-518 and two 214-1444 hose clamps

1шт.

Not Shown

1шт.

100

GE-518

TUBE

splice hose - 2 1/2"

1шт.

100

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

Выбрано товаров: 44
