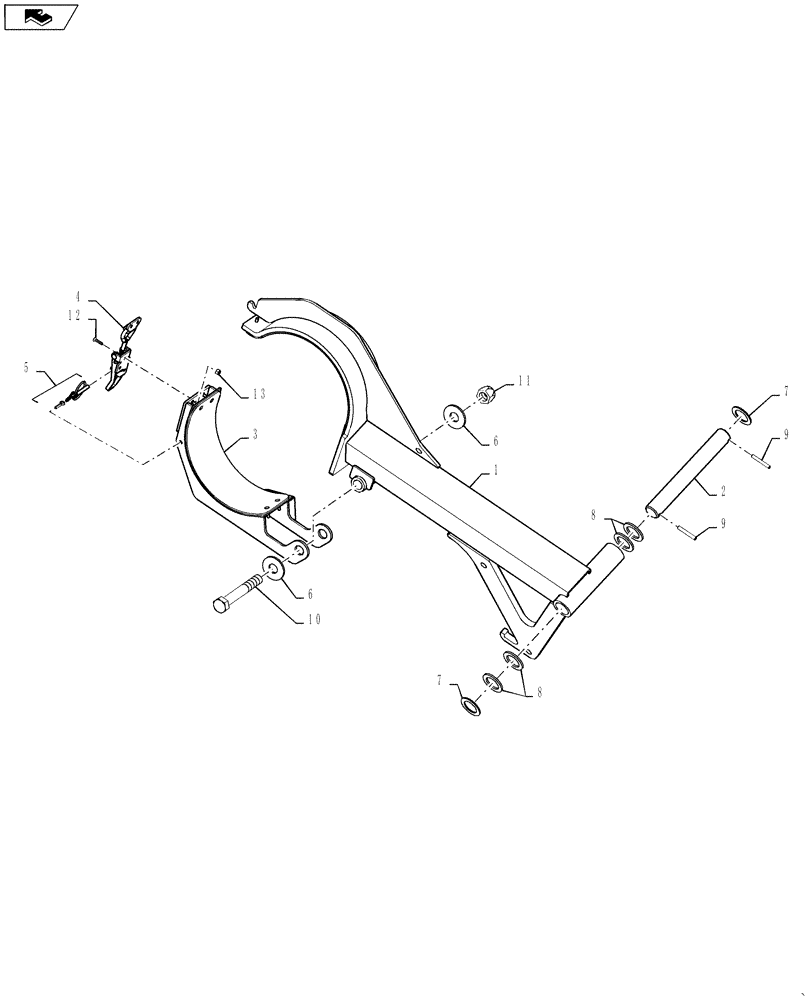

Запчасти Case IH 3430 (80.180.AU[03]) - DELUXE AUGER FRONT SADDLE SUPPORT (80) - CROP STORAGE/UNLOADING

1

47403317

SUPPORT

Bottom Front Saddle

1шт.

2

GL-791

HEADLESS PIN

Lower Auger Support

1шт.

3

47404589

SUPPORT

Top Fron Saddle

1шт.

4

47445222

LATCH

Adjustable Draw

1шт.

5

87106279

PIN,6.4mm OD

Klik

1шт.

6

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

7

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1.250 X 1

2шт.

8

1312

WASHER,1 9/32" x 2" x .120"

4шт.

9

87343

LOCK PIN,6.35mm OD x 44.45mm L, Slotted

2шт.

10

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

11

280375

NUT,3/4"-10, GC

1шт.

12

442-11012

SCREW,Cross Oval Hd, #10-24 x 3/4"

3шт.

13

86632551

NUT,#10-24, GB

3шт.

14

8670

RIVET,Pop, 3/16" OD x 3/4" L

.188 X .75

8шт.

15

47404590

PAD

Lower

1шт.

16

47406571

PAD

Upper

1шт.
