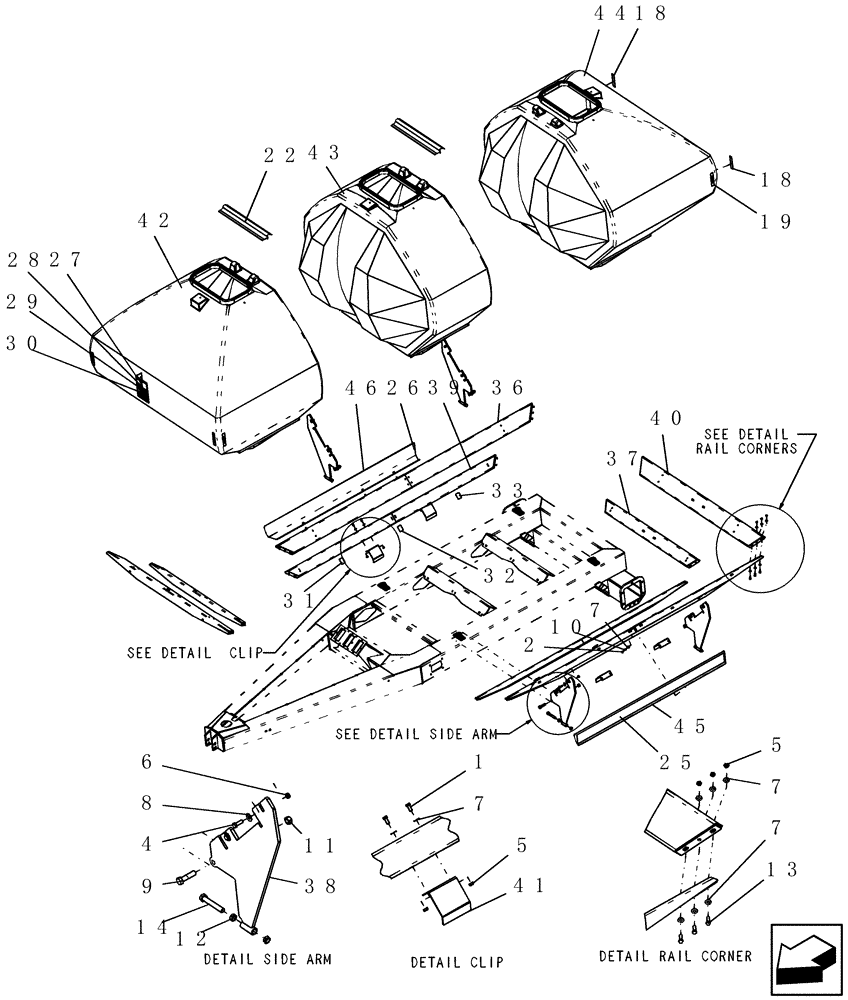

Запчасти Case IH 3430 (80.150.01) - TANKS, SUPPORTS, KEY COVER (3 TANK) (80) - CROP STORAGE/UNLOADING

1

9706729

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

8шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

4

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

8шт.

5

280980

NUT,7/16"-14, GC

28шт.

6

86992215

LOCK NUT,1/2"-13, GC

8шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

54шт.

8

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

9

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

11

280375

NUT,3/4"-10, GC

4шт.

12

86632557

JAM NUT,Jam, 3/4"-10, G5

8шт.

13

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

20шт.

14

6717

BOLT,Hex, 3/4" - 10 x 5", Gr 5, Full Thd

4шт.

18

311863A1

REFLECTOR

reflector red 1 3/8" x 7 1/4"

2шт.

19

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

6шт.

22

51200060

SEAL

wide tank interface

2шт.

25

87544831

DECAL

adx3380 LH

1шт.

25

87643144

DECAL

Precision Air 3380 LH

1шт.

25

87643146

DECAL

Precision Air 3430 LH

1шт.

26

87643145

DECAL

Precision Air 3380 RH

1шт.

26

87643147

DECAL

Precision Air 3430 RH

1шт.

27

GD-500.71

WARNING DECAL

Do Not Ride

1шт.

28

GD-500.79

WARNING DECAL

Stop Fan

1шт.

29

GL-294

PLATE

decal tank safety

1шт.

30

GL-700.08

DECAL

attention before filling

1шт.

31

GL-700.15

DECAL

tank 1

2шт.

31

87544841

DECAL

118 bu

1шт.

Used on 3380

1шт.

31

87545170

DECAL

142 bu

1шт.

Used on 3430

1шт.

32

GL-700.16

DECAL

tank 2

2шт.

32

87544840

DECAL

93 bu

1шт.

Used on 3380

1шт.

32

87545169

DECAL

102 bu

1шт.

Used on 3430

1шт.

33

GL-700.17

DECAL

tank 3

2шт.

33

87544839

DECAL

169 bu

1шт.

Used on 3380

1шт.

33

87545168

DECAL

186 bu

1шт.

Used on 3430

1шт.

36

GL-130FR

SUPPORT

tank side rail top

2шт.

37

GL-131FR

SUPPORT

tank end rail bottom

2шт.

38

GL-140FR

SUPPORT

tank rail

4шт.

39

GL-153FR

SUPPORT

tank side btm

2шт.

40

GL-156FR

SUPPORT

tank end top

2шт.

41

GL-607FR

STRAP

anchor tank seal

4шт.

42

87420890

TANK

116 bushel female

1шт.

Used on 3380

1шт.

42

87420924

TANK

142 bushel female

1шт.

Used on 3430

1шт.

43

GM-622

TANK

89 bushel center

1шт.

Used on 3380

1шт.

43

87420922

TANK

102 bushel center

1шт.

Used on 3430

1шт.

44

GM-623

TANK

154 bushel male

1шт.

Used on 3380

1шт.

44

87420926

TANK

186 bushel male

1шт.

Used on 3430

1шт.

100

GM-304K

KIT

tank pull down

1шт.

Includes four 88011, four 9637692, two GM-307, two GM-308, four GM-309 and GM-310

1шт.

Not Shown

1шт.
