Запчасти Case IH 3430 (75.100.20[01]) - HALF WIDTH SECTION CONTROL METER ROLLERS (75) - SOIL PREPARATION

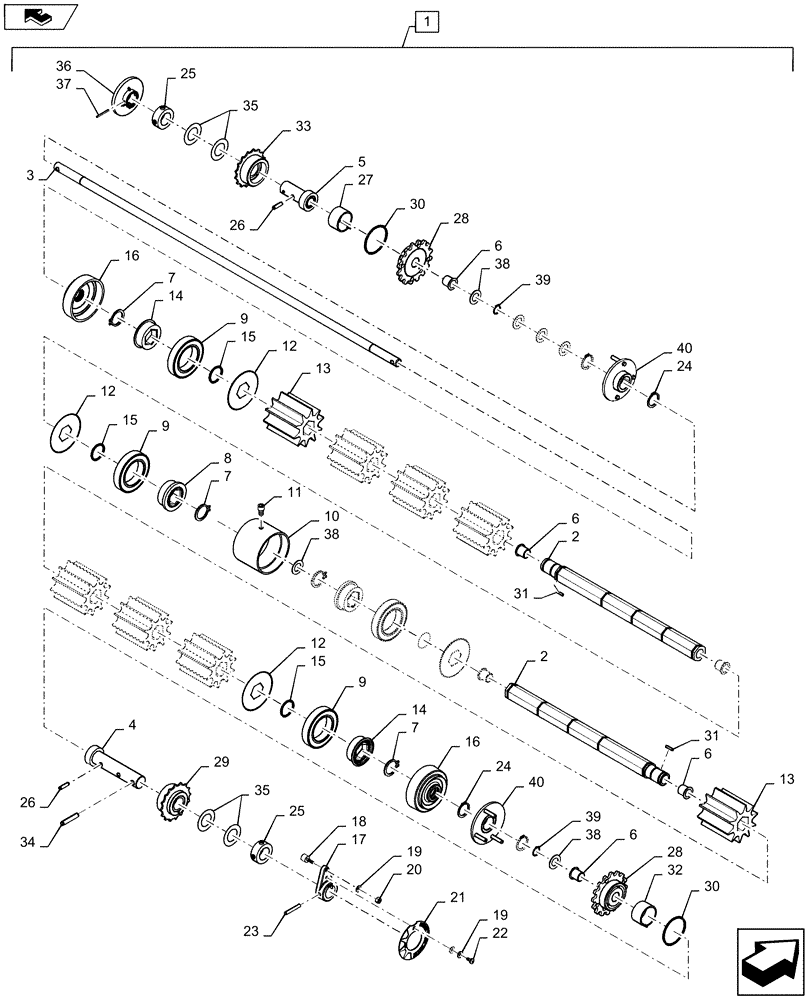

Схема запчастей Case IH 3430 - (75.100.20[01]) - HALF WIDTH SECTION CONTROL METER ROLLERS (75) - SOIL PREPARATION
8
12
27
39
5
30
29
33
28
31
25
14
15
26
14
40
16
9
22
13
38
35
38
2
home
2
17
6
9
6
30
9
10
24
40
16
7
6
37
6
15
20
4
38
19
35
28
25
23
36
34
12
7
24
3
19
39
1
18
11
13
31
12
21
32
7
26
15

Артикул

Название

Примечание

Количество

1

47367317

SERVICE KIT

PACKAGE, RLR 580 8RUN X-F 1/2W

1шт.

1

47367303

SERVICE KIT

PACKAGE, RLR 580 8RUN F 1/2W

1шт.

1

47358993

SERVICE KIT

PACKAGE, RLR 580 8RUN C 1/2W

1шт.

1

47367331

SERVICE KIT

PACKAGE, RLR 580 8RUN X-C 1/2W

1шт.

1

47367318

SERVICE KIT

PACKAGE, RLR 580 7RUN X-F 1/2W

1шт.

1

47367304

SERVICE KIT

PACKAGE, RLR 580 7RUN F 1/2W

1шт.

1

47367279

SERVICE KIT

PACKAGE, RLR 580 7RUN C 1/2W

1шт.

1

47367332

SERVICE KIT

PACKAGE, RLR 580 7RUN X-C 1/2W

1шт.

1

47367319

SERVICE KIT

PACKAGE, RLR 580 6RUN X-F 1/2W

1шт.

1

47367305

SERVICE KIT

PACKAGE, RLR 580 6RUN F 1/2W

1шт.

1

47367280

SERVICE KIT

PACKAGE, RLR 580 6RUN C 1/2W

1шт.

1

47367333

SERVICE KIT

PACKAGE, RLR 580 6RUN X-C 1/2W

1шт.

1

47367320

SERVICE KIT

PACKAGE, RLR 580 5RUN X-F 1/2W

1шт.

1

47367306

SERVICE KIT

PACKAGE, RLR 580 5RUN F 1/2W

1шт.

1

47367281

SERVICE KIT

PACKAGE, RLR 580 5RUN C 1/2W

1шт.

1

47367334

SERVICE KIT

PACKAGE, RLR 580 5RUN X-C 1/2W

1шт.

1

47478944

SERVICE KIT

PACKAGE, RLR 8RUN 50S X-F 1/2W

1шт.

1

47478947

SERVICE KIT

PACKAGE, RLR 8RUN 50S F 1/2W

1шт.

1

47478950

SERVICE KIT

PACKAGE, RLR 8RUN 50S C 1/2W

1шт.

1

47478958

SERVICE KIT

PACKAGE, RLR 8RUN 50S X-C 1/2W

1шт.

1

47478959

SERVICE KIT

PACKAGE, RLR 7RUN 50S X-F 1/2W

1шт.

1

47479003

SERVICE KIT

PACKAGE, RLR 7RUN 50S F 1/2W

1шт.

1

47479008

SERVICE KIT

PACKAGE, RLR 7RUN 50S C 1/2W

1шт.

1

47479009

SERVICE KIT

PACKAGE, RLR 7RUN 50S X-C 1/2W

1шт.

1

47479013

SERVICE KIT

PACKAGE, RLR 6RUN 50S X-F 1/2W

1шт.

1

47479014

SERVICE KIT

PACKAGE, RLR 6RUN 50S F 1/2W

1шт.

1

47479017

SERVICE KIT

PACKAGE, RLR 6RUN 50S C 1/2W

1шт.

1

47479019

SERVICE KIT

PACKAGE, RLR 6RUN 50S X-C 1/2W

1шт.

1

47479020

SERVICE KIT

PACKAGE, RLR 5RUN 50S X-F 1/2W

1шт.

1

47479021

SERVICE KIT

PACKAGE, RLR 5RUN 50S F 1/2W

1шт.

1

47479023

SERVICE KIT

PACKAGE, RLR 5RUN 50S C 1/2W

1шт.

1

47479025

SERVICE KIT

PACKAGE, RLR 5RUN 50S X-C 1/2W

1шт.

2

47357152

SHAFT

Hex Meter Roller AL

2шт.

3

47357169

SHAFT

Meter Roller Center

1шт.

4

47451245

SHAFT

Drive Meter Rollers

1шт.

5

47451247

SHAFT

Driven Meter Rollers

1шт.

6

84604820

BUSHING

.719 X .625 "

6шт.

7

244245

SNAP RING,#112, Ext

4шт.

8

8826

RUBBER PAD

Inner Puck

2шт.

9

51200149

BEARING

Ball

4шт.

10

GL-580

SPACER

Outer

1шт.

11

7247

HEX SOC SCREW

.313-18 X .5"

1шт.

12

GH-891

BEARING COVER

Shield

4шт.

13

9825

ROLLER

Meter Section Extra Fine

1шт.

13

7245

ROLLER

Meter Section Fine

1шт.

13

7246

ROLLER

Meter Section Course

1шт.

13

21813

ROLLER

Meter Section Extra Course

1шт.

14

47380524

SPACER

Meter Roller Outer

2шт.

15

51200142

O-RING,2.375" ID x 2.5" OD x 0.63"

4шт.

16

84539720

SEAL

Meter Roller End

2шт.

17

CA-123

AGITATOR

Poly Cam

1шт.

18

6893K

KIT

Studs Incl 19-20

1шт.

19

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

3шт.

20

20332

LOCK NUT,#10-32, GB

1шт.

21

9826

DISC

Tag Extra Fine

1шт.

21

8096

DISC

Tag Coarse

1шт.

21

22435

DISC

Tag Extra Coarse

1шт.

21

412783A1

DISC

Tag Fine

1шт.

21

47480568

NAMEPLATE

Coarse For 50S

1шт.

21

47480569

NAMEPLATE

Extra Coarse For 50 S

1шт.

21

47480566

NAMEPLATE

Fine For 50 S

1шт.

21

47480560

NAMEPLATE

Extra Fine For 50 S

1шт.

22

9773

SCREW,#12 x 0.50"

1шт.

23

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

24

87019495

SNAP RING,#98, Ext

4шт.

25

2259

COLLAR

Lock

2шт.

26

47465247

PIN

Slotted 1/4X7/8 ZND

2шт.

27

7301

TORSION SPRING

1шт.

28

84600032

HUB

Driven

2шт.

29

47488249

SPROCKET

Control

1шт.

30

7170

O-RING

2.062 ID X 2.375 OD

2шт.

31

47357879

KEY

2шт.

32

51200048

TORSION SPRING

1шт.

33

47488243

SPROCKET

Control

1шт.

34

70921559

ROLL PIN,7.94mm OD x 41.27mm L

1шт.

35

84586244

SHIM

44 OD X 26 ID

4шт.

36

87506452

ACTUATOR

Rotor Meter Box

1шт.

37

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

38

86624154

WASHER,0.66" ID x 1.12" OD x 0.05" Thk

3шт.

39

83902308

SNAP RING

2шт.

40

47451767

HUB

2шт.

Выбрано товаров: 81
