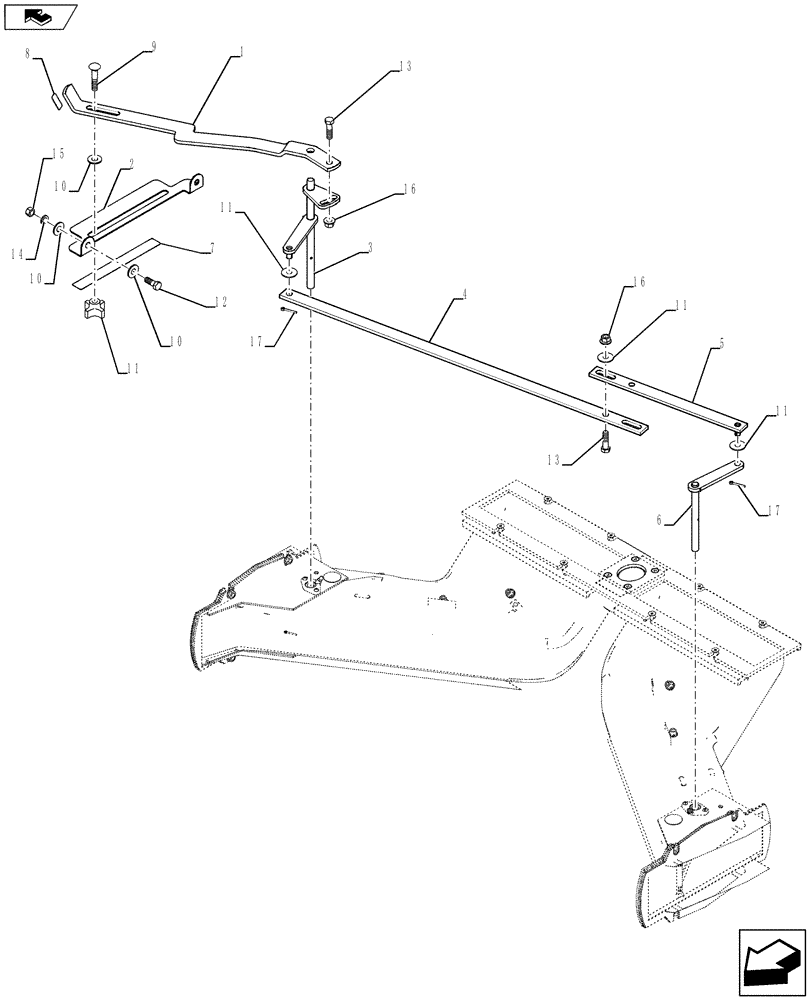

Запчасти Case IH 3430 (75.100.07[02]) - AIR DAMPER LINKAGE (ASN YBS015201 - CURRENT) (75) - SOIL PREPARATION

1

84483295

CONTROL LEVER

3 Tank, TBT, Incl 7

1шт.

1

84483293

LINKAGE

2 & 3 Tank Rear, 3 Tank Middle, Incl 7

1шт.

1

84478429

CONTROL LEVER

3 Tank Front, TBH, Incl 7

1шт.

1

84466912

HANDLE

2 Tank Front, TBT, Incl 7

1шт.

1

84466916

HANDLE

2 Tank Front, TBH, Incl 7

1шт.

2

84466727

ADJUSTING PLATE

3 Tank Front, TBT, Incl 7

1шт.

3

84466095

CONTROL LEVER

1шт.

4

84478428

LINKAGE

1шт.

5

84483289

LINKAGE

All Except 2 & 3 Tank Rear Models

1шт.

5

84478696

LINKAGE

2 & 3 Tank Rear Models Only

1шт.

6

84466677

CONTROL LEVER

1шт.

7

84485649

DECAL

Air Damper Control

1шт.

8

GL-700.24

DECAL

Control Pointer

1шт.

9

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

11

6909

KNOB

4шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

280206

BOLT,Hex, 3/8" - 16 x 1 3/8", Gr 5

3шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

15

2335

NUT,3/8"-16, G5

2шт.

16

86521609

FLANGE NUT,Flg, 3/8"-16

3шт.

17

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.
