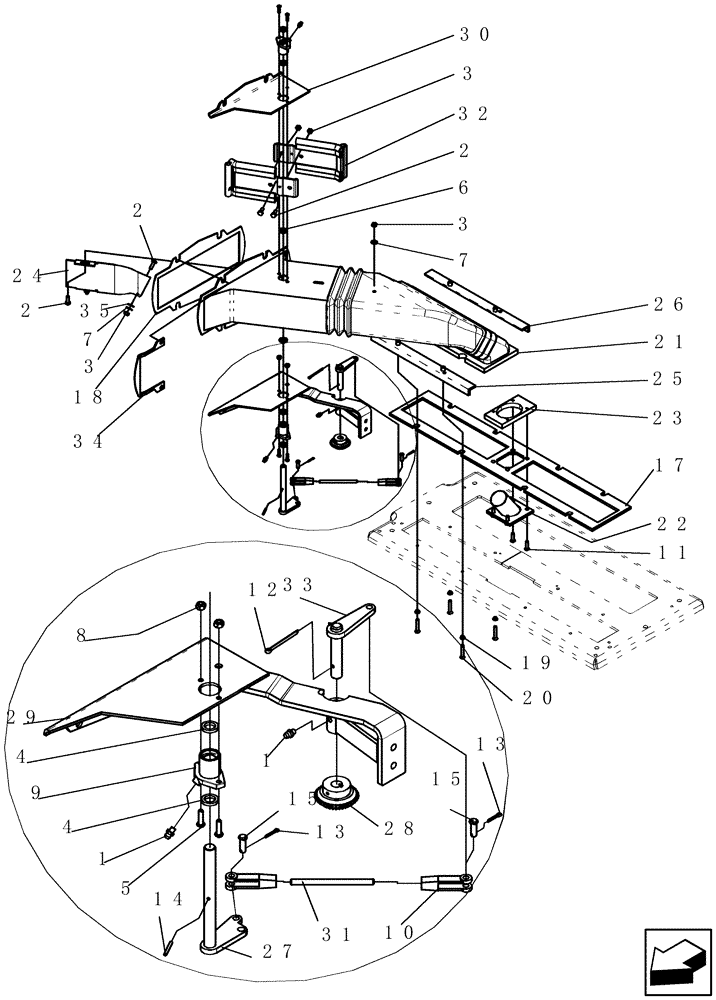

Запчасти Case IH 3430 (75.100.06) - AIR PLENUM RIGHT HAND (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
1
87414
LUBE NIPPLE,1/4" - 28
2шт.
2
9707580
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
4шт.
3
280129
NUT,1/4"-20
4шт.
4
22172
SEAL
3/4" od x 1/2" id x 1/8" w
4шт.
5
459-11020
SCREW,Slotted Pan Hd, #10-32 x 1 1/4"
2шт.
6
8289
WASHER
1/2" id 13/16" od 3/32"
4шт.
7
87361
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
2шт.
8
9148
LOCK NUT
#10-32, stainless steel
2шт.
9
9704
FLANGED BEARING,0.51" ID x 0.938" OD x 1.25"
support shaft air damper
1шт.
10
51200063
LINKAGE YOKE
clevis end 1/4" x 2"
2шт.
11
9982
HEX SOC SCREW,Flat Hd, 1/4" - 20 x 1"
hex socket 1/4" x 20" x 1" ss fh
4шт.
12
87673
COTTER PIN,1/8" x 1 3/4"
1шт.
13
88788
COTTER PIN,3/32" x 1/2"
2шт.
14
22152
ROLL PIN
1/8" x 1"
1шт.
15
22153
CLEVIS PIN
1/4" x 3/4"
2шт.
17
22328
SEAL
plenum mount plate
1шт.
18
22362
SEAL
air plenum
1шт.
19
22444
SEALING WASHER
rolled nyltite sealing
4шт.
20
161-116
HEX SOC SCREW,Flat Hd, 1/4" - 20 x 1 1/2", SST
4шт.
21
87486697
PLENUM
meterbox RH
1шт.
22
GL-251
AIR INTAKE TUBE,4.062" L
air sub hopper
1шт.
23
GL-252
PLATE
air tube clamp sub hopper
1шт.
24
GL-455
VALVE
right air plenum
1шт.
25
84173601
STRAP
hold down RH
1шт.
Used with 87486695 & 87486697
1шт.
25
GL-491
STRAP
hold down, right
1шт.
Required for service with existing GL-104 & GL-105
1шт.
26
84173602
STRAP
hold down LH
1шт.
Used with 87486695 & 87486697
1шт.
26
GL-605
STRAP
hold down, left
1шт.
Required for service with existing GL-104 & GL-105
1шт.
27
GL-717
SHAFT
air damper, right
1шт.
28
GL-724
GEAR
miter, air system
1шт.
29
GL-774
BRACKET
bottom right air plenum
1шт.
30
GL-775
BRACKET
air plenum - top right
1шт.
31
GL-869
ROD
control, air damper - threaded
1шт.
32
GL-716A
HALF BLADE
assembly, air damper
2шт.
33
GM-424
ARM
air damper control right
1шт.
34
GM-361
BRACKET
Air Plenum
1шт.
35
21676
RUBBER WASHER
1/4"id 5/8" 7/16"tk
1шт.
Выбрано товаров: 40
