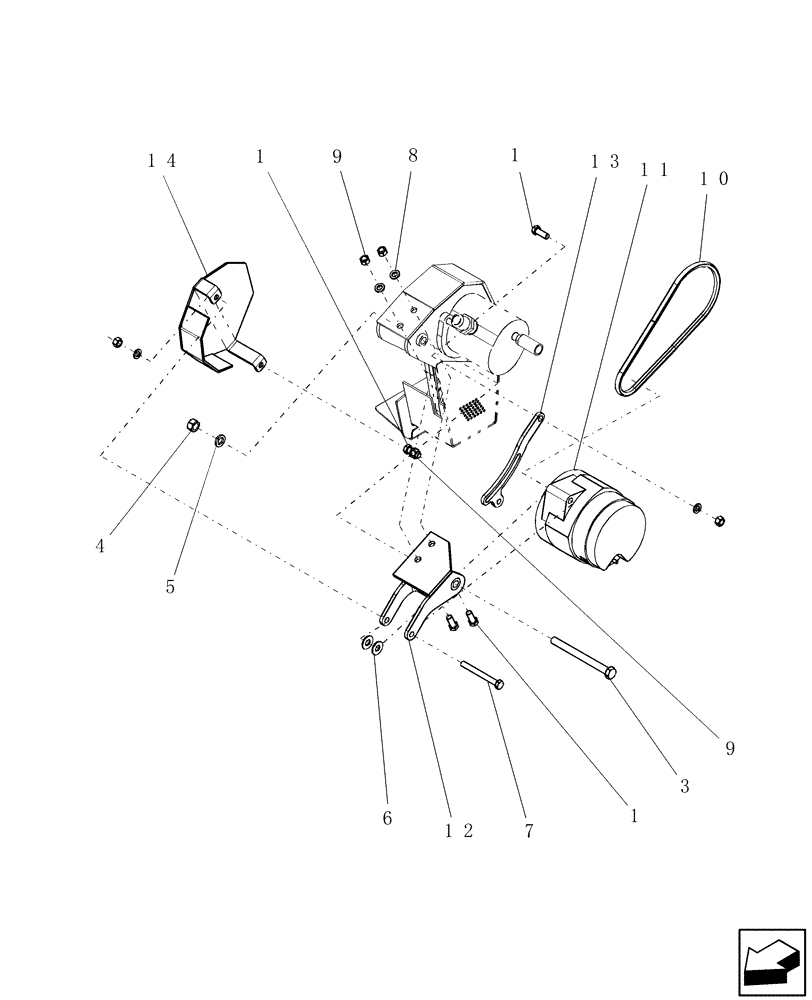

Запчасти Case IH 3430 (75.100.03) - SINGLE FAN ALTERNATOR ASSEMBLY (75) - SOIL PREPARATION

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

4

280431

NUT,1/2"-13, G5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

7

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

1шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

5шт.

9

9628503

NUT,3/8"-16, G5

5шт.

10

21486

BELT

3vx265

1шт.

11

22248

ALTERNATOR

60 amp c/w bi-directional fan & chaff guard

1шт.

84485249R

REMAN-ALTERNATOR

2280, 2330, Both (1/08-), 3380, 3430, Both (7/08-), Reman for New PN 22248

1шт.

84485249C

CORE-ALTERNATOR

Return Number

1шт.

12

GI-352

BRACKET

alternator mount

1шт.

13

GI-353

BRACKET

alternator adjustment

1шт.

14

GI-356

SHIELD

alternator - single fan

1шт.
