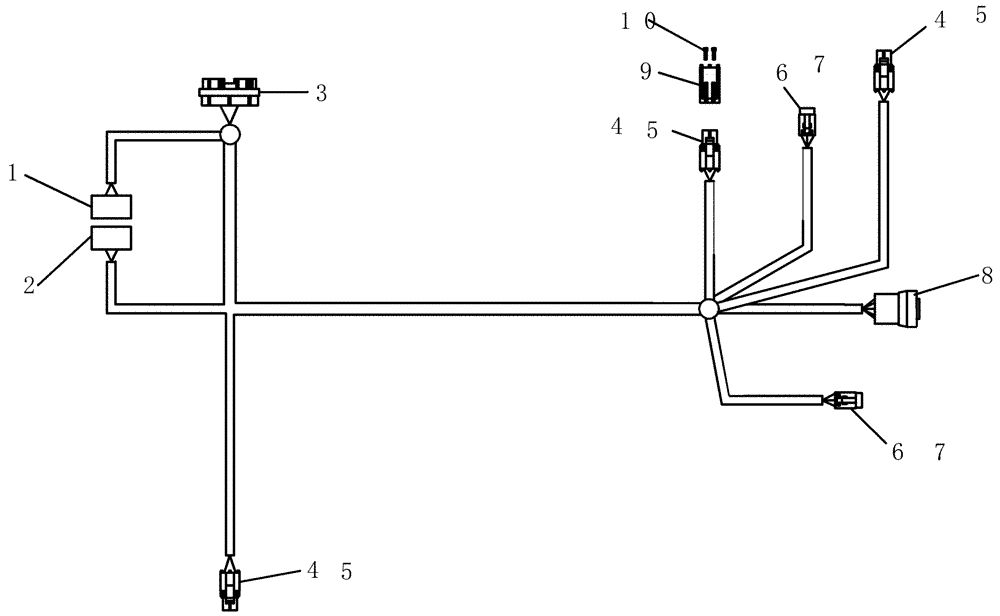

Запчасти Case IH 3380 (55.100.13) - 3RD TANK HARNESS ISOBUS (3 TANK) (55) - ELECTRICAL SYSTEMS

0

87641811

HARNESS

3rd tank

1шт.

1

182079A1

TERMINAL CONNECTOR,Male, 5 Pin

Shroud 5 Way Metri-Pak 280

1шт.

2

182081A1

TERMINAL CONNECTOR,Female, 5 Pin

Tower 5-way Metri-pak

1шт.

3

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

3шт.

5

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

6шт.

6

51200009

STOP LOCK

3c plug

6шт.

7

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

2шт.

8

225224C1

ELEC CONNECTOR,Female, 5 Pin

plastic 5c plug

1шт.

9

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.

10

225127C1

PLUG

cavity, green rubber

2шт.
