Запчасти Case IH 3380 (39.110.03) - TOW BEHIND PLANTER FIELD HITCH (39) - FRAMES AND BALLASTING

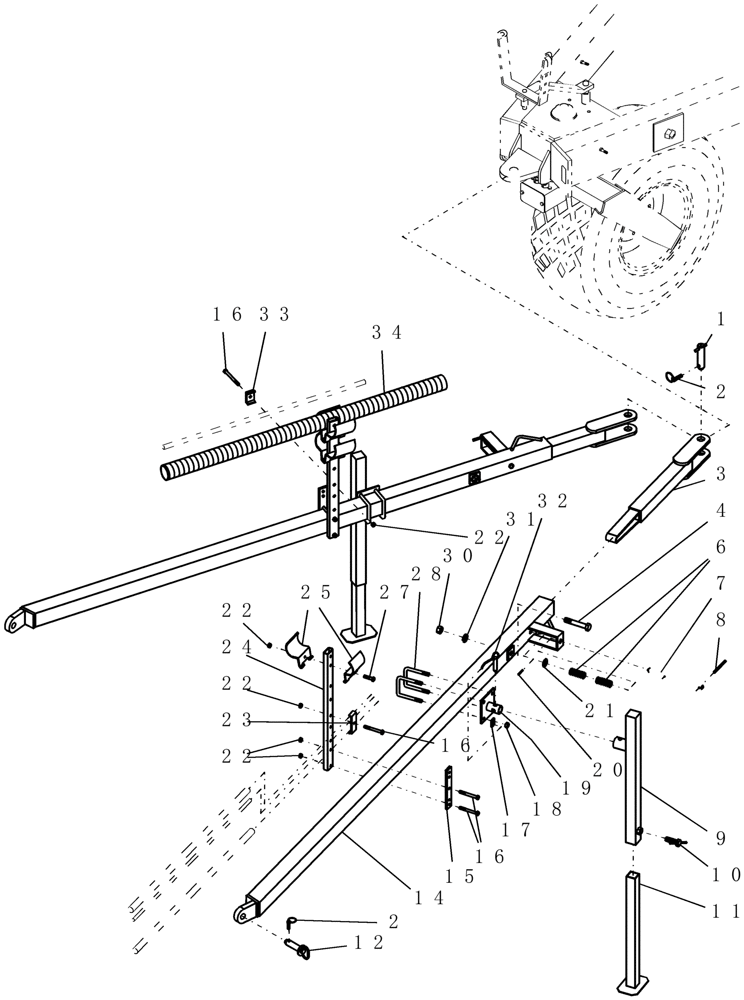

Схема запчастей Case IH 3380 - (39.110.03) - TOW BEHIND PLANTER FIELD HITCH (39) - FRAMES AND BALLASTING
16
8
15
33
2
16
34
21
6
28
27
19
31
2
16
9
22
17
22
4
30
1
24
18
12
23
14
25
32
10
11
22
7
20
3
22

Артикул

Название

Примечание

Количество

1

GE-293A

HITCH PIN

draw assembly

1шт.

Includes GE-293, 6425 and 86544809

1шт.

2

6425

LINCH PIN

7/16" x 1 3/8"

1шт.

3

GH-440

EXTENSION

arm field hitch

1шт.

4

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

6

87506250

COMPRESSION SPRING

3/32" wire x 1 1/8" od x 3"

1шт.

7

GH-439

HITCH PIN

lock

1шт.

8

6270

ROLL PIN

5/16" x 4"

1шт.

9

GE-359

STAND

field hitch - upper

1шт.

10

GE-193A

HANDLE

height adjustment

1шт.

11

GE-358

STAND

field hitch - lower

1шт.

12

412769A1

HITCH PIN

1" x 3 1/2" usable

1шт.

Includes 6425

1шт.

14

GH-437

ARM

main, hitch rail - planter hitch

1шт.

15

GR-109

STRAP

bolt

1шт.

16

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

1шт.

17

GH-530

BRACKET

mount, fan shield chain

1шт.

18

86992215

LOCK NUT,1/2"-13, GC

1шт.

19

GH-444

PLATE

mounting hitch support

1шт.

20

87757

LOCK PIN,3/16" x 1 1/2", Slotted

1шт.

21

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

22

88902

NUT,3/8"-16

1шт.

23

CC-106

HOSE CLAMP

for 4 hoses

1шт.

24

GR-102

SUPPORT TUBE,26" L

tube

1шт.

25

GR-103

HOSE CLAMP

primary single

1шт.

27

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

28

1404

U-BOLT

us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

1шт.

30

280954

NUT,3/4"-10, G5

1шт.

31

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

32

412752A1

PIN

and chain assembly jack mount

1шт.

33

CC-105

HOSE CLAMP

for 2 hoses

1шт.

34

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

This is used from the quick connects to the header elbow

1шт.

100

GE-518K

HOSE KIT

hose - 2 1/2"

1шт.

Includes splice tube GE-518 and two 214-1444 hose clamps

1шт.

Not Shown

1шт.

100

GE-518

TUBE

splice hose - 2 1/2"

1шт.

100

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

Выбрано товаров: 38
