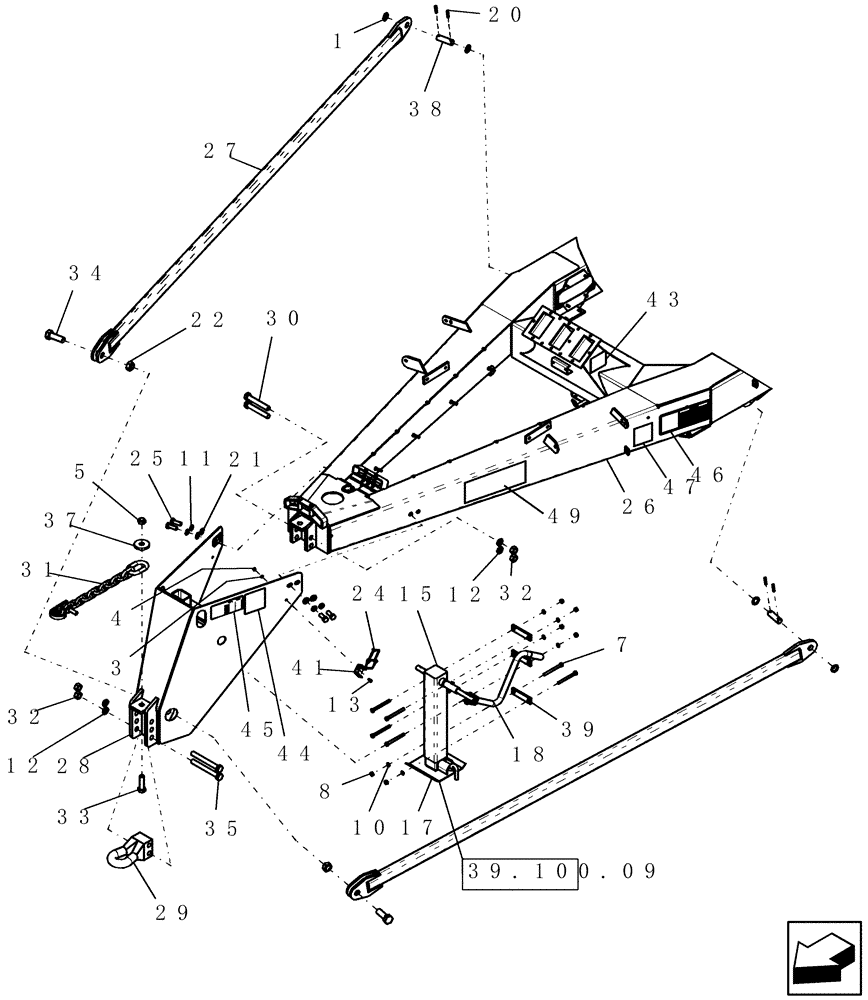

Запчасти Case IH 3380 (39.100.06) - FRONT FRAME - TOW BETWEEN HITCH ASSY (39) - FRAMES AND BALLASTING

1

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

4шт.

3

80681

LOCK WASHER,5/16"

1шт.

4

9635082

NUT,5/16" - 18, Gr 5

1шт.

5

280286

NUT,1"-8, GB

1шт.

7

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

6шт.

8

280431

NUT,1/2"-13, G5

6шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

11

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

12

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

4шт.

13

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

15

21803

JACK

assembly - 10,000lb x 26"

1шт.

Refer to 39.100.09

1шт.

17

22031

JACK

10,000lb x 26" - without crank

1шт.

18

22032

CRANK

assy for jack 10000 lb x 26

1шт.

Includes 231-4146, two 495-21038 and 413-640

1шт.

20

87577

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

4шт.

21

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

22

86609684

NUT,1 1/4"-7, GB

2шт.

24

6854

PIN

quick - 1/4" x 2 1/2" usable

1шт.

25

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

26

87601429

FRAME

2 tank

1шт.

26

87505223

FRAME

ADX3380/3430

1шт.

27

87433839

LINK

tension tow between hitch

2шт.

28

87433840

HITCH

front 380/430

1шт.

29

87506220

HITCH

hitch

1шт.

29

84471082

HITCH

CAT 4,5, Not Shown

1шт.

30

426-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 8

2шт.

31

87619912

CHAIN

safety, 40,400 lb

1шт.

32

86511609

NUT,1"-8, G8

4шт.

33

86979387

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

1шт.

34

87037002

BOLT,Hex, 1 1/4" - 7 x 3 1/2", Gr 8

2шт.

35

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

2шт.

37

GD-622

WASHER

safety chain

1шт.

38

GL-499

HEADLESS PIN

1 1/4" x 2 15/16" usable

2шт.

39

GL-639

PLATE

retainer, jack

3шт.

41

GL-958

BRACKET

jack handle rest

1шт.

43

GD-300.05

DECAL

attention fan

1шт.

44

GD-500.72

CAUTION DECAL

2шт.

45

GD-500.77

CAUTION DECAL

hydraulics

2шт.

46

GL-700.19

DECAL

electrocution hazard

2шт.

47

87503916

DECAL

hydraulic flow

1шт.

48

GL-700.01

DECAL

manifold lift lever

1шт.

Not Shown

1шт.

49

87643140

DECAL

Precision Air 2280 LH

1шт.

49

87643141

DECAL

Precision Air 2280 RH

1шт.

49

87643142

DECAL

Precision Air 2330 LH

1шт.

49

87643143

DECAL

Precision Air 2330 RH

1шт.

49

87643144

DECAL

Precision Air 3380 LH

1шт.

49

87643145

DECAL

Precision Air 3380 RH

1шт.

49

87643146

DECAL

Precision Air 3430 LH

1шт.

49

87643147

DECAL

Precision Air 3430 RH

1шт.
