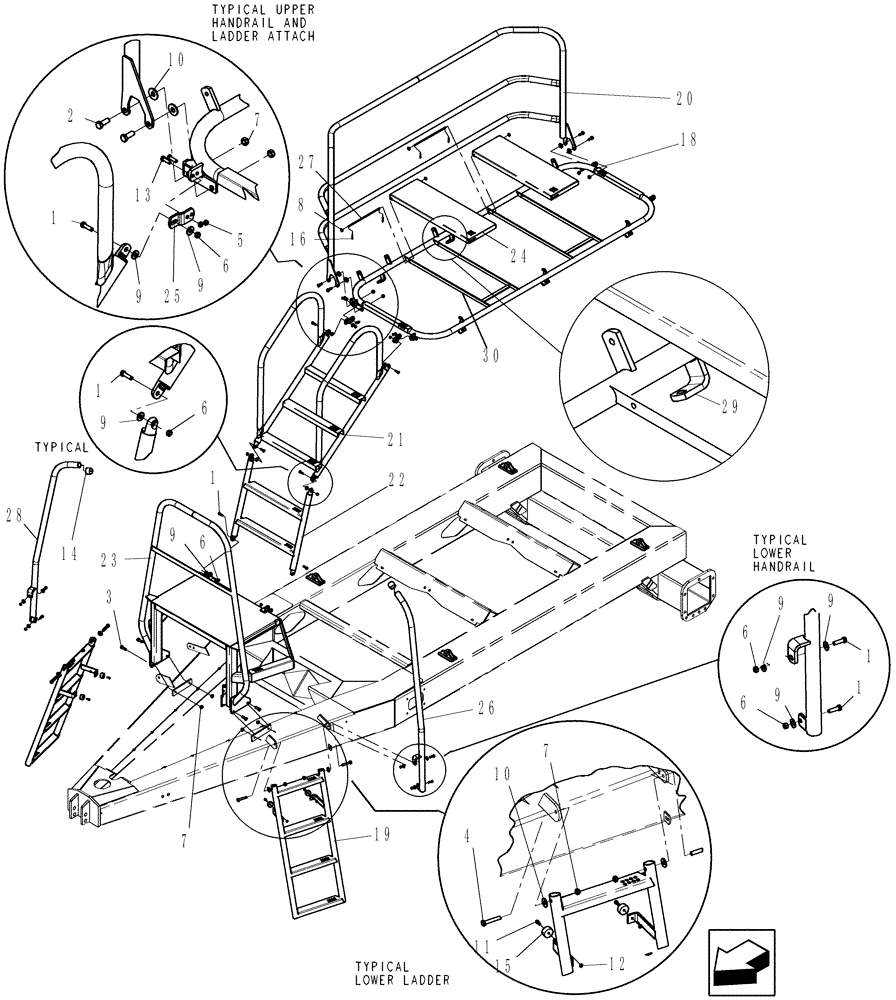

Запчасти Case IH 3380 (39.100.04[01]) - PLATFORMS AND EXTERNAL LADDERS (3 TANK) (39) - FRAMES AND BALLASTING

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

11шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

4

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

4шт.

5

9637692

NUT,3/8"-16, GB

4шт.

6

88902

NUT,3/8"-16

10шт.

7

280129

NUT,1/4"-20

12шт.

8

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

14шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

11

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

12

280129

NUT,1/4"-20

4шт.

13

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

14

3419

CAP

vinyl 1 5/8" x 1 1/2"

2шт.

15

51200147

FOOT

rubber, 1 1/2" od x 1/4" id x 3/4"

4шт.

16

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

4шт.

18

GL-186

PLATFORM

tank top

1шт.

19

GL-188

LADDER

hitch frame

2шт.

20

GL-190

HANDRAIL

tank

1шт.

21

GL-192

LADDER

upper

1шт.

Common to both 380 and 430 bushel carts

1шт.

22

GL-193

LADDER

lower tank

1шт.

Only used on 380 bushel carts

1шт.

22

87420825

LADDER

lower tank 430 bushel cart

1шт.

Only used on 430 bushel carts

1шт.

23

GL-330

PLATFORM

frame

1шт.

24

GL-350

GRATING

top platform - flip up

2шт.

25

84496340

BRACKET

ladder top platform RH

1шт.

25

84496341

BRACKET

ladder top platform LH

1шт.

26

GL-356

HANDRAIL

frame LH

1шт.

27

GL-747

PIN

step grating platform

2шт.

28

GL-755

RAIL ASSY.

right - frame mount

1шт.

29

84333264

LUG

Mounting Top Platform

3шт.

30

84333266

BRACKET

Brace, Floor, Platform

4шт.
