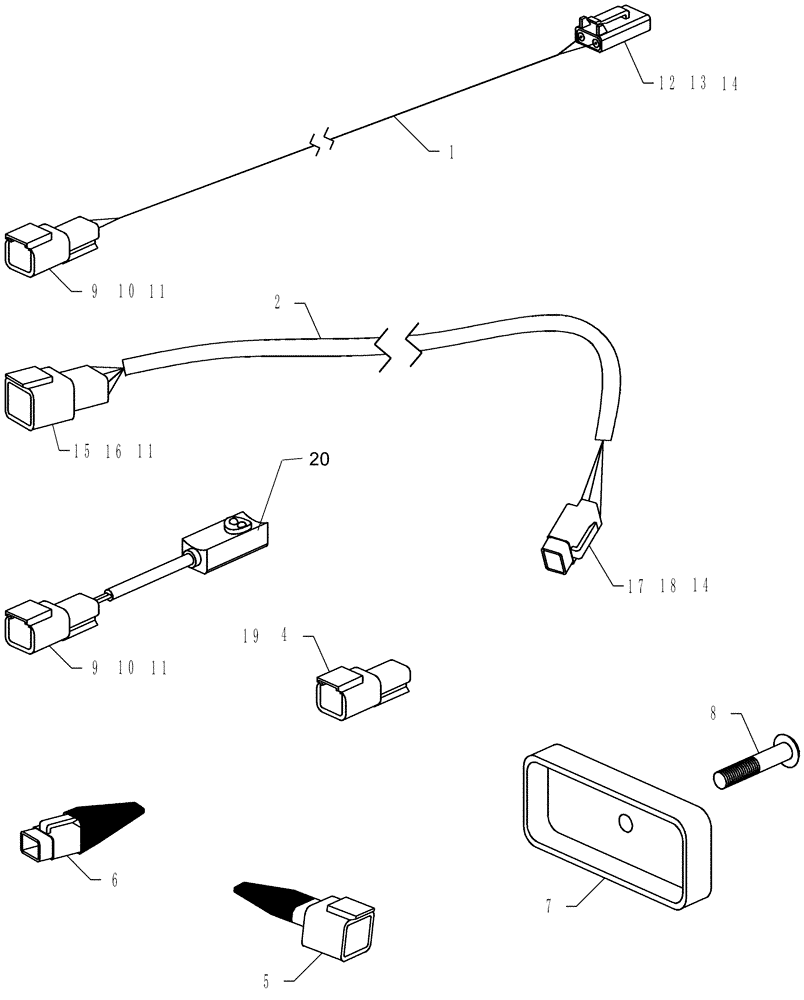

Запчасти Case IH 3380 (55.640.02) - FLOW PARTS (55) - ELECTRICAL SYSTEMS

1

87419314

HARNESS

extension 4 m x 2c dtm

1шт.

1

87419315

HARNESS

extension 6 m x 2c dtm

1шт.

1

84213846

WIRE HARNESS

extension 9 m x 2c

1шт.

1

87419316

HARNESS

extension 13m 2 cond twist dtm

1шт.

2

87419317

HARNESS

seedflow interconnect 4.9 m

1шт.

2

87506449

HARNESS

seedflow interconnect 7.5 m

1шт.

4

87407453

DUST CAP

2c Deutsch receptacle

1шт.

5

87419318

TERMINAL CONNECTOR

terminator receptacle, 120 ohm - dtm 4

1шт.

6

87419319

PLUG

terminator, 120 ohm - dtm 4

1шт.

7

425269A1

DUST CAP

30 conductor

1шт.

8

470-11016

SCREW,Pan HD, #10 - 24 x 1"

1шт.

9

222136A1

ELEC CONNECTOR,Male, 2 Pin

plastic 2c receptacle

2шт.

10

222848A1

ELEC CONNECTOR

lock 2c receptacle

2шт.

11

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

8шт.

12

222135A1

CONNECTOR, ELEC

CONNECTOR plastic 2c plug

1шт.

13

222846A1

STOP LOCK

2c plug connector

1шт.

14

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

6шт.

15

277904A1

ELEC CONNECTOR,Female, 4 Pin

plastic 4c plug

1шт.

16

279794A1

STOP LOCK,Locking, Orange

4c plug connector

1шт.

17

277905A1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

1шт.

18

279795A1

STOP LOCK

4c receptacle connector

1шт.

19

225055C1

PLUG

connector 20awg

2шт.

20

87458502

SENSOR

Optical Flow

1шт.

100

87057798

INSTRUCTION

optical flow monitor

1шт.
