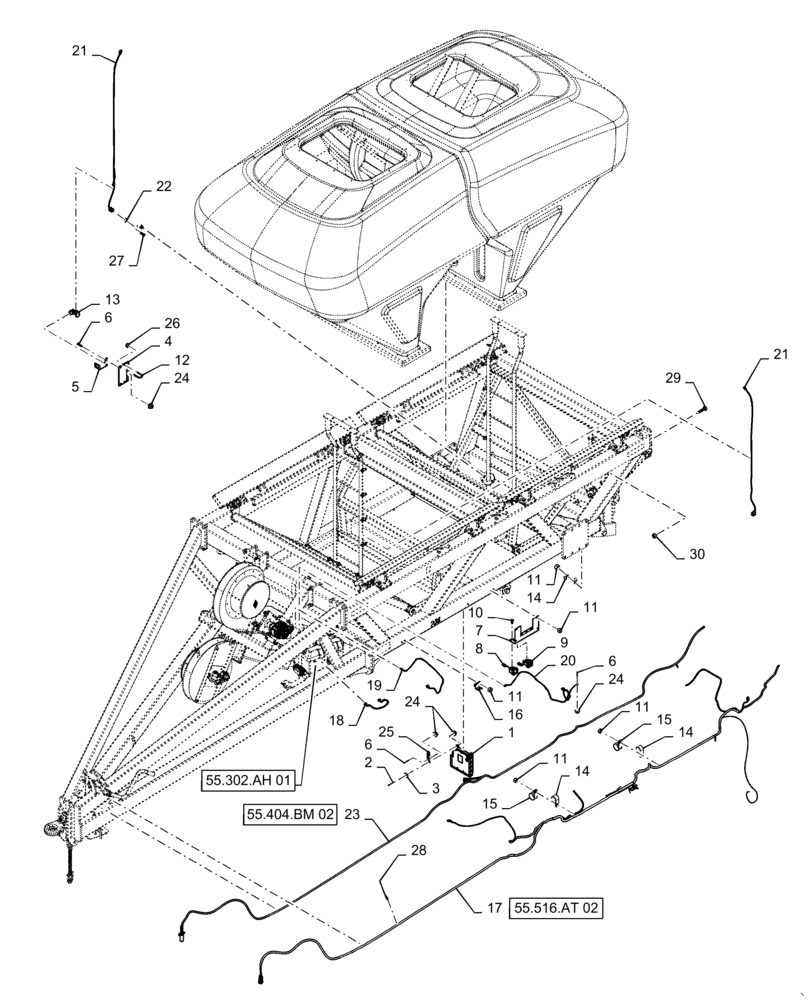

Запчасти Case IH 2355 (55.516.AA[02]) - 350 BUSHEL TOW BETWEEN ELECTRICAL (55) - ELECTRICAL SYSTEMS

1

47632699

ECU

UCM2, 12V, STD8

1шт.

2

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

4шт.

3

21675

WASHER,0.28" ID x 0.63" OD x 0.05" Thk, SST

4шт.

4

47675200

BRACKET

Aux Low Bin Sensor

2шт.

5

47596275

BRACKET

Low Bin Sensor

2шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

10шт.

7

47743845

BRACKET

Switch Mount, Multiple

1шт.

8

47739163

TOGGLE SWITCH

Calibration

1шт.

9

47737283

TOGGLE SWITCH

Meter

2шт.

10

8258

SELF-TAP SCREW,Phillips Drive, Pan Head, #8 - 32 x 3/8"

3шт.

11

68841

NUT,M8 x 1.25, Cl 8

8шт.

12

233381A1

U-BOLT,M10 x 1.5 x 73mm, Carbon Steel

4шт.

13

47625038

SENSOR

Motion, Autoguidance Override

2шт.

14

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

6шт.

15

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

16

47743844

BRACKET

Scale Hanger

1шт.

17

47625035

WIRE HARNESS

350 Bushel Tow Between Cart

1шт.

See Fig 55.516.AT 02 For Service Parts

1шт.

18

47625040

CABLE

Negative, Inter Battery

1шт.

19

47480698

CABLE

Negative Battery

1шт.

20

47480697

CABLE

Positive Battery

1шт.

21

47480702

WIRE HARNESS

In Tank Sensors

2шт.

22

51200017

GASKET,25.4mm ID x 1.6mm Thk

Rubber

2шт.

23

47649221

WIRE HARNESS

Tow Between Cart Lighting

1шт.

See Fig 55.404.BM 02 For Service Parts

1шт.

24

86619800

FLANGE NUT,M6 x 1, Cl 8

12шт.

25

635541

GROUND CABLE

1шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

27

5452

RIVET,Pop, 0.125" OD x 0.775" L

8шт.

28

87557084

CABLE TIE,14"

23шт.

29

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

30

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.
