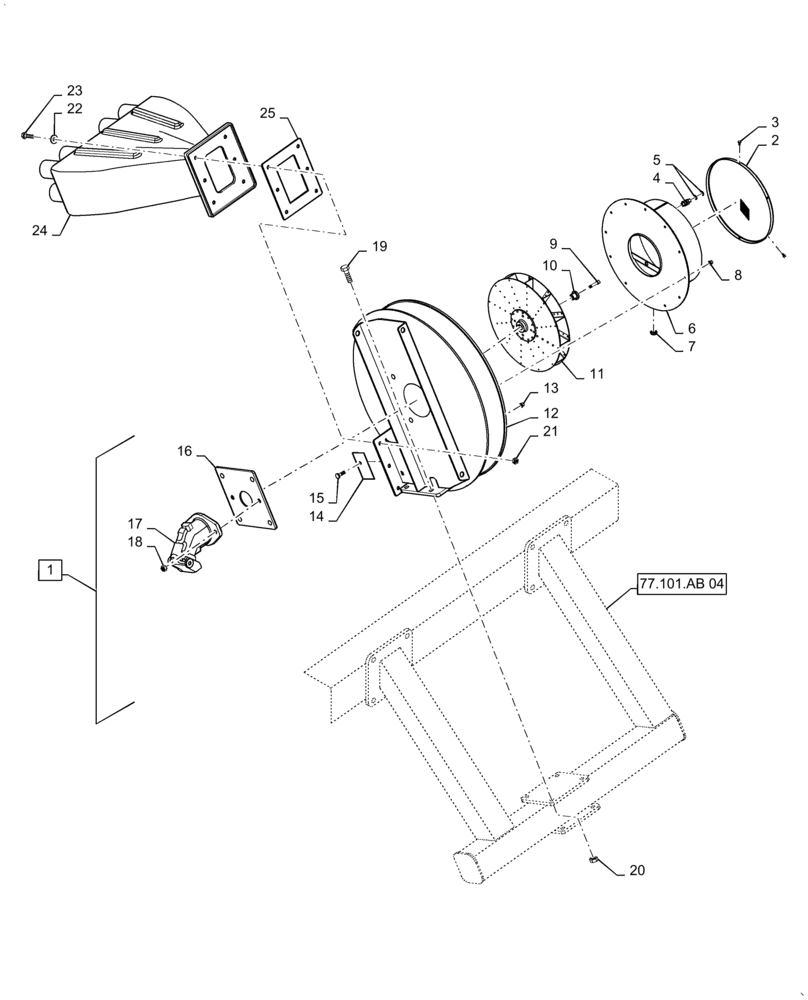

Запчасти Case IH 2355 (77.101.AB[05]) - TOP FAN, 8 RUN DOUBLE SHOOT (77) - SEEDING/PLANTING

1

47678910

BLOWER

Fan, Complete. Incl 2 - 18

1шт.

2

47678918

SCREEN

Fan Cover

1шт.

3

86625162

SELF-TAP SCREW,HWH, 1/4" - 14 x 1/2"

6шт.

4

324049A1

SENSOR

1шт.

5

86977690

LOCK WASHER,Ext Tooth, 5/8"

2шт.

6

47678917

INTAKE AIR HOSE

Fan

1шт.

7

435810A1

GROMMET,5/8" ID x 1-1/8" OD x 3/8" Thk

1шт.

8

87383746

FLANGE NUT,M8 x 1.25, Flg, Cl 10

12шт.

9

47738527

SCREW,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

10

47678919

HUB CAP

Fan

1шт.

11

47678915

IMPELLER

Fan

1шт.

12

47678914

FAN HOUSING

1шт.

13

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

14

47687935

DEFLECTOR

1шт.

15

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

16

47687942

MOUNT

Fan Motor

1шт.

17

47640700

HYDROSTATIC MOTOR

16cc, Piston

1шт.

18

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

6шт.

19

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

20

118490

NUT,M12 x 1.75, Cl 8

4шт.

21

8475948

NUT,M10 x 1.5, Cl 8

6шт.

22

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

23

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

6шт.

24

47602961

PLENUM

Fan, 8 Run

1шт.

25

47602964

SEAL

Fan, 8 Run

1шт.

26

48018198

SEAL

Motor 16 cc Piston

1шт.
