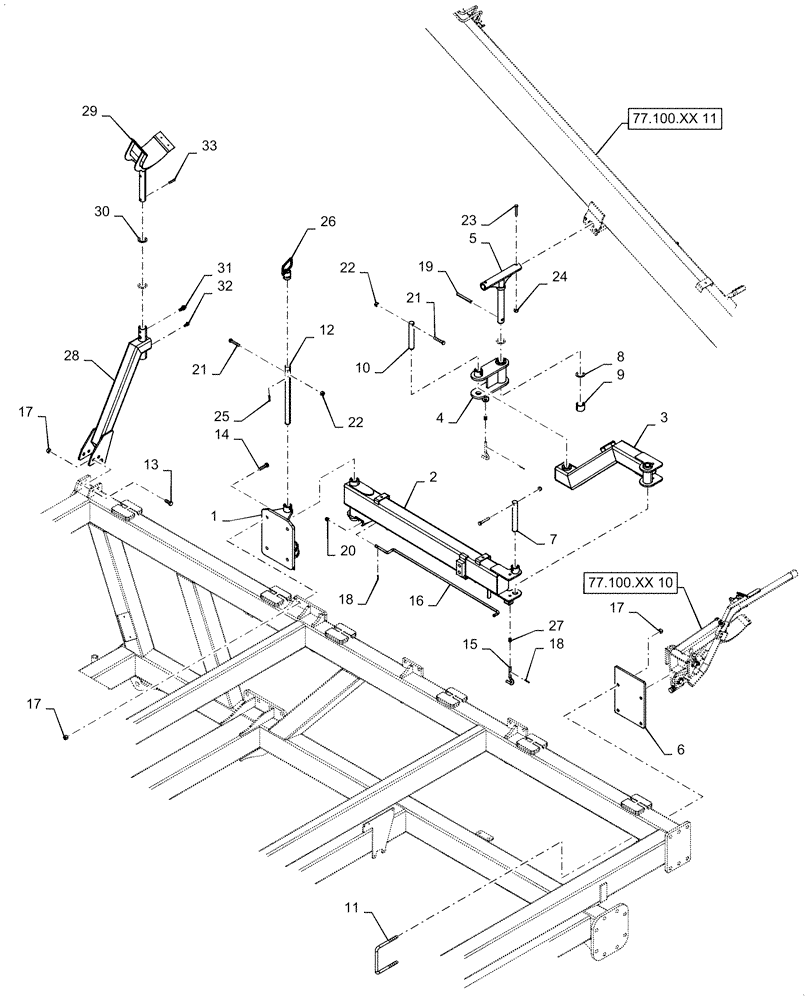

Запчасти Case IH 2355 (77.100.XX[09]) - MANUAL CONTROL AUGER MOUNTS 435/460 BUSHEL (77) - SEEDING/PLANTING

1

47747646

MOUNT

Manual Auger Black

1шт.

2

47748034

ARM

Auger Inner

1шт.

3

47748035

ARM

Auger Outer

1шт.

4

47748037

ARM

Auger Pivot

1шт.

5

84262710

MOUNT

1шт.

6

47744272

SUPPORT

Saddle Plate

1шт.

7

47747698

PIN

1шт.

8

23261

WASHER

1.515 ID 2.25

2шт.

9

47748281

TUBE

Spacer

1шт.

10

47747699

PIN

31.75 X 197 mm

1шт.

11

47534143

U-BOLT,M16 x 2, Square, 180mm W x 175mm L

2шт.

12

84557601

PIN,31.75mm OD x 442mm L

1шт.

13

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

2шт.

14

323866

BOLT,Hex, M16 x 2.0 x 60mm, Cl 8.8

4шт.

15

47748660

PIN

Auger Arm

2шт.

16

47748659

ROD

1шт.

17

146988

LOCK NUT,M16 x 2, Cl 8

10шт.

18

130078

LOCK PIN,M4 x 30, Slotted

3шт.

19

4770

ROLL PIN

.5 x 3 mm

1шт.

20

87505489

COMPRESSION SPRING

Harrow Pin

1шт.

21

86518210

BOLT,Hex, M14 x 75mm, Cl 8.8

3шт.

22

412370

NUT,M14 x 2, Cl 8

3шт.

23

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

24

100038

NUT,M12 x 1.75, Cl 8

2шт.

25

87020818

LOCK PIN,1/4" OD x 2" OAL, Slotted

1шт.

26

84583373

SUPPORT

1шт.

27

87000071

COMPRESSION SPRING,47.2mm Free Length

2шт.

28

47744192

SUPPORT

Auger Rear Black

1шт.

29

47744197

SUPPORT

Rear Black

1шт.

30

1313

WASHER,1-1/2" ID x 2-1/4" OD x 10 Ga Thk

2шт.

31

80718

LUBE NIPPLE,1/4"-28 x 90 Degree

1шт.

32

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

33

381928

ROLL PIN,10mm OD x 50mm L, Slotted

2шт.
