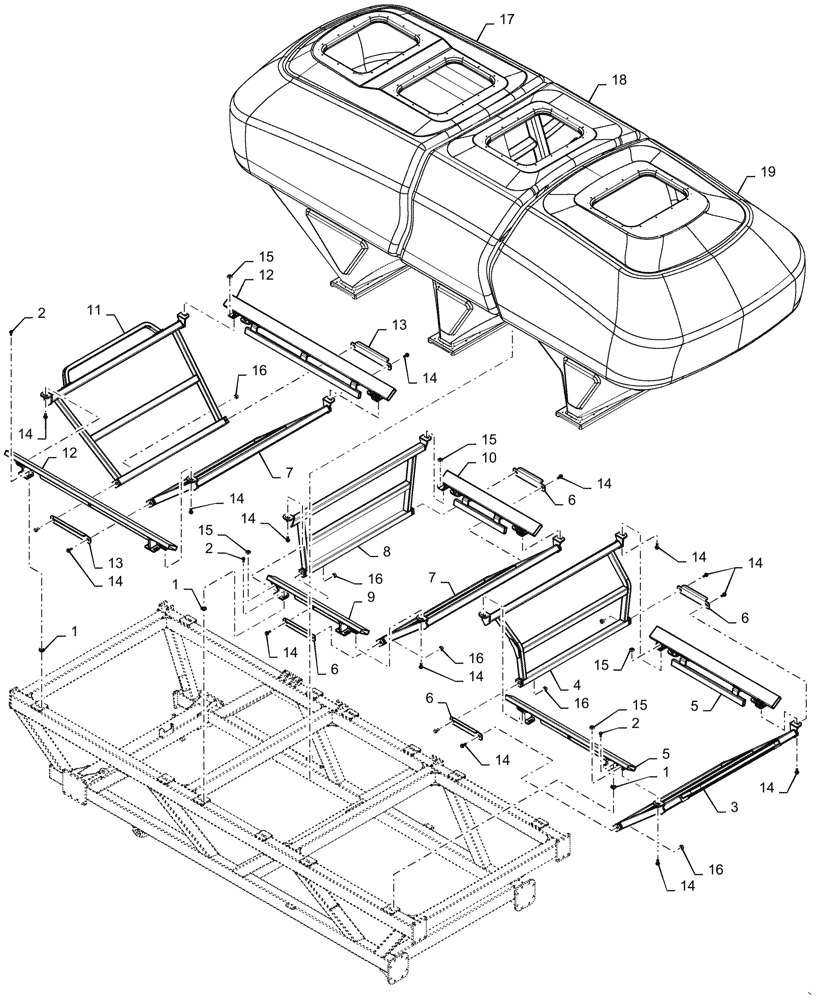

Запчасти Case IH 2355 (77.100.AC[09]) - TANK CRADLE 950 BUSHEL (77) - SEEDING/PLANTING

1

47642012

FASTENER

T-Nut M16

24шт.

2

47427860

BOLT,Hex, M16 x 35mm, Cl 8.8

24шт.

3

47561860

SUPPORT

Tank Cradle Black

1шт.

4

47561871

SUPPORT

Tank Cradle Bent Black

1шт.

5

47632662

SIDE RAIL

Cradle 190 Bushel Black

2шт.

6

47638718

SUPPORT

Cradle Lower Black

4шт.

7

47561651

SUPPORT

Tank Cradle Black

2шт.

8

47561653

SUPPORT

Tank Cradle Black

1шт.

9

47632868

SIDE RAIL

Cradle 150 Bushel

1шт.

10

47632866

SIDE RAIL

Cradle 150 Bushel

1шт.

11

47561860

SUPPORT

Tank Cradle Black

1шт.

12

47632864

SIDE RAIL

Cradle 260 Bushel Black

2шт.

13

47638720

SUPPORT

Cradle Lower Black

2шт.

14

86511852

BOLT,Hex Flg, M20 x 50, 8.8

24шт.

15

87535798

SQUARE NUT

12шт.

16

9847024

NUT,M20, Cl 10

12шт.

17

47451571

TANK

420 Bushel

1шт.

18

47451565

TANK

170 Bushel

1шт.

19

47451569

TANK

325 Bushel

1шт.
