(61.904.AB[10]) - METERING SEED SMALL HOSE, 350, 435 BUSHEL, 6 RUN, SINGLE SHOOT, TOW BEHIND

Запчасти Case IH 2355 (61.904.AB[10]) - METERING SEED SMALL HOSE, 350, 435 BUSHEL, 6 RUN, SINGLE SHOOT, TOW BEHIND (61) - METERING SYSTEM

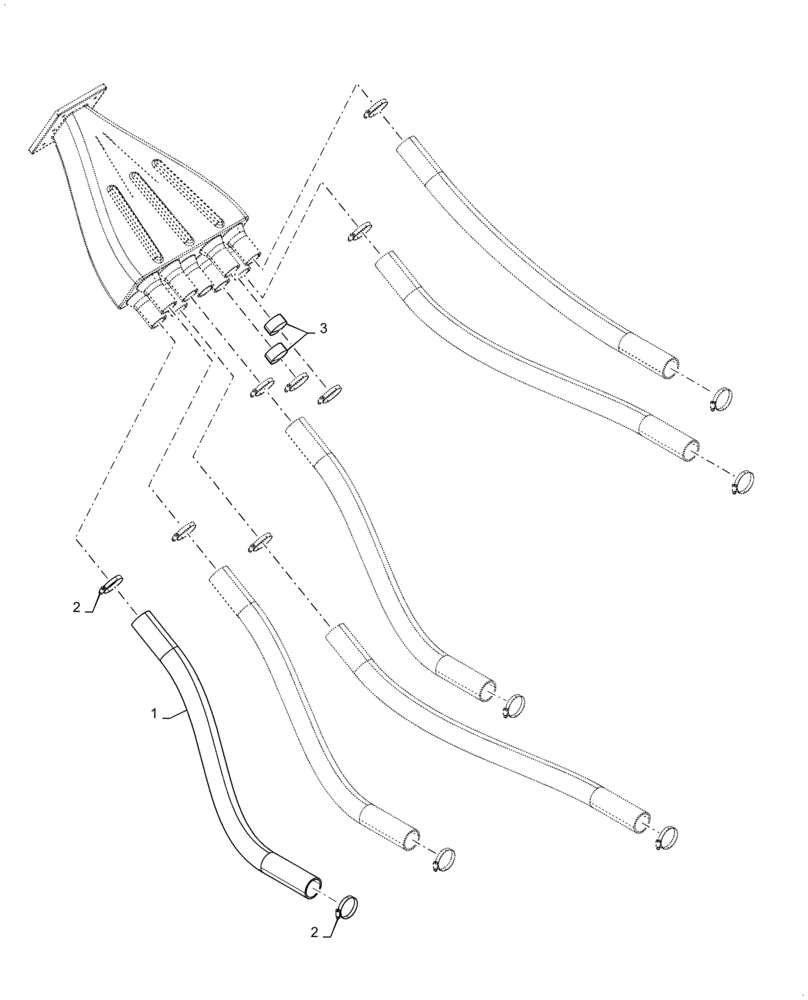

Схема запчастей Case IH 2355 - (61.904.AB[10]) - METERING SEED SMALL HOSE, 350, 435 BUSHEL, 6 RUN, SINGLE SHOOT, TOW BEHIND (61) - METERING SYSTEM
1
2
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47679558

HOSE, BULK

Cut to Length of 1150mm

2шт.

1

47679558

HOSE, BULK

Cut to Length of 1200mm

2шт.

1

47679558

HOSE, BULK

Cut to Length of 1250mm

2шт.

2

86050197

HOSE CLAMP,58.6mm - 82.5mm, Worm Gear

14шт.

3

4731

CAP

2шт.
