Запчасти Case IH 2330 (55.100.08) - TOW BETWEEN SEED TOOL HARNESS (55) - ELECTRICAL SYSTEMS

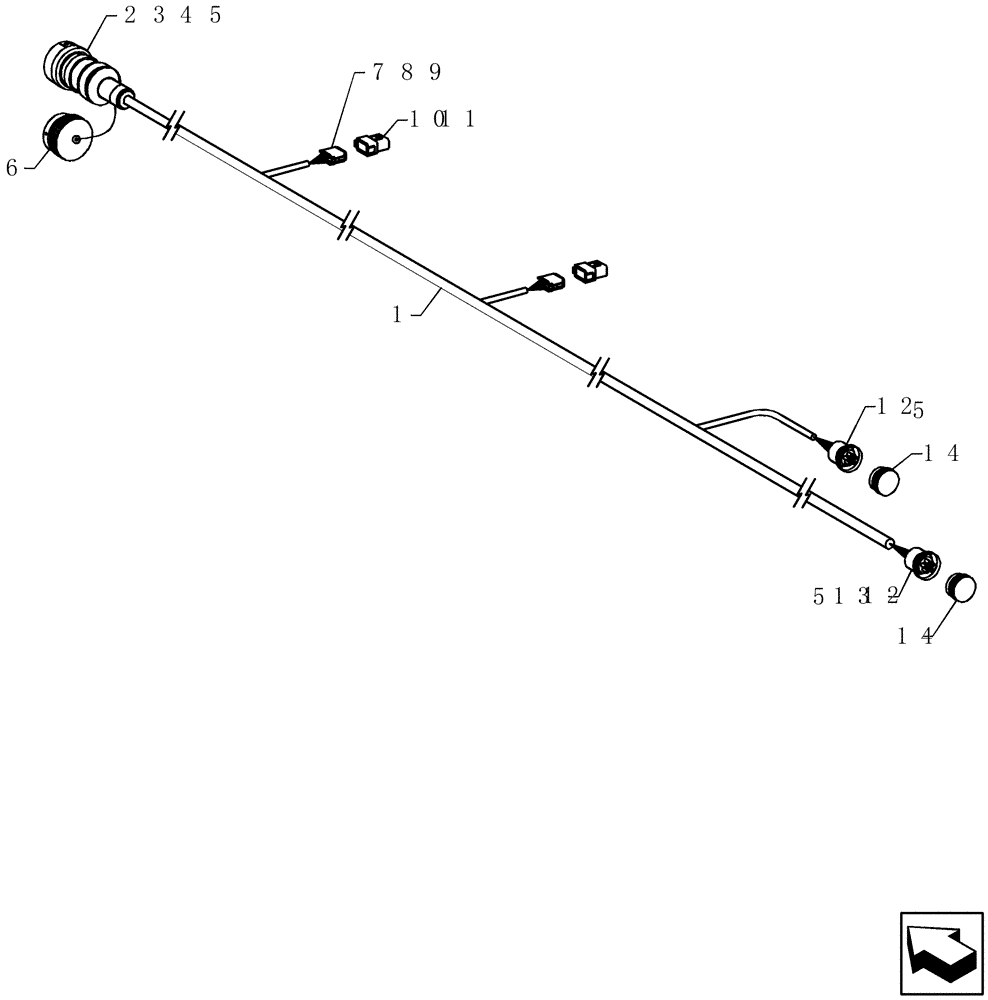

Схема запчастей Case IH 2330 - (55.100.08) - TOW BETWEEN SEED TOOL HARNESS (55) - ELECTRICAL SYSTEMS
14
10
3
5
5
9
13
4
11
2
7
8
1
12
14
6
12
5

Артикул

Название

Примечание

Количество

1

14044V2

HARNESS

seedtool 10.8 m tow between, Serial Range: -Y8S015000

1шт.

1

84368482

WIRE HARNESS

Seedtool, TBT, 10.7m, Start Serial: Y8S015001

1шт.

2

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug, Serial Range: -84368482

1шт.

3

425083A1

POWER SOCKET

contact socket 8-10 Deutsch

2шт.

4

900302

TERMINAL

12-14awg

2шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

14шт.

6

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

7

87700156

CONTACT HOUSING,Female, 12 Pole

Deutsch 12 way dtm plug, grey

1шт.

8

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

12шт.

9

223674A1

WEDGE

lock 12c plug

1шт.

10

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

11

225055C1

PLUG

connector 20awg

12шт.

12

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

2шт.

13

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

2шт.

14

14045

DUST CAP

6 cond rcp Deutsch

2шт.

Выбрано товаров: 15
