Запчасти Case IH 2330 (44.103.01) - FRONT CASTER ASSEMBLY (44) - WHEELS

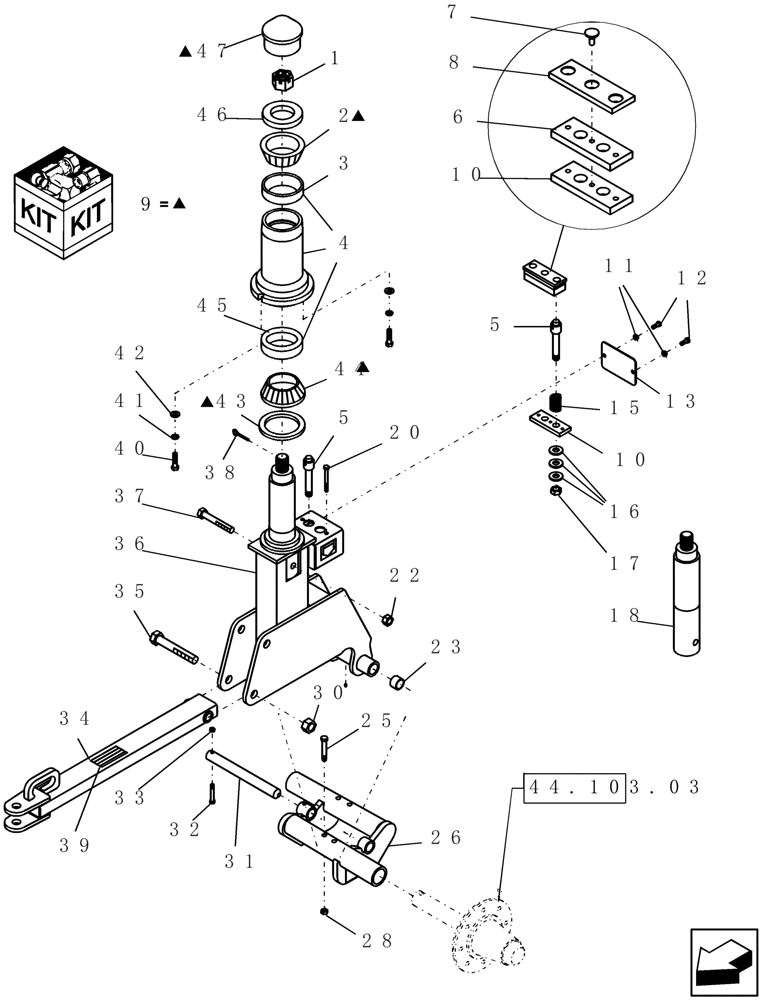

Схема запчастей Case IH 2330 - (44.103.01) - FRONT CASTER ASSEMBLY (44) - WHEELS
38
47
26
30
15
42
43
46
23
6
34
31
10
32
4
25
28
33
44
13
5
20
39
5
12
3
10
35
17
36
9
22
45
7
18
1
40
41
37
2
8
44.103.03
16
11

Артикул

Название

Примечание

Количество

1

25-1324

SLOTTED NUT,1 1/2"-12, G5

1шт.

2

510884

BEARING CONE,66.69mm ID x 30.05mm W

#3984

1шт.

3

3304

BEARING CUP

#3920

1шт.

4

GD-687A

PIVOT

assembly, caster fork

1шт.

Includes 3304, GD-687 and 13303D

1шт.

5

GE-407A

SPRING

rod assembly

2шт.

6

GL-438

SPACER

caster brake pad

1шт.

7

9920

SCREW,3/8" - 16 x 1.5, Gr 5

3/8" x 1 1/2" GR5 countersunk

1шт.

8

GE-408

BRAKE PAD

seeder dual caster

1шт.

9

6752

BEARING SET

c/w cones, seals, and dust cap

1шт.

Includes 435536A1, 80752, 5765, 67190R91, CC-109 and 412741A1

1шт.

10

GE-406

BRAKE PAD

backing plate

2шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

GE-405

BRAKE PLATE

housing cover

1шт.

15

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

15

87506208

COMPRESSION SPRING

5/16" wire 7/8" id x 3l

1шт.

16

3443

WASHER,0.75" ID x 1.25" OD x 0.07" Thk

3/4" id 14ga

1шт.

17

280954

NUT,3/4"-10, G5

1шт.

18

6992

SPINDLE

front caster pivot 3 1/4" x 17.63" SP

1шт.

Includes 1680

1шт.

20

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

1шт.

22

280375

NUT,3/4"-10, GC

1шт.

23

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

25

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

26

87436683

BEAM

walking dual caster 2-1/2"

1шт.

28

86992215

LOCK NUT,1/2"-13, GC

1шт.

30

280286

NUT,1"-8, GB

1шт.

31

GE-413

PIVOT PIN,31.8mm OD x 314.3mm L

dual caster walkbeam

1шт.

32

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

33

88902

NUT,3/8"-16

1шт.

34

GE-410

HITCH

transport - dual front caster

1шт.

35

18681

BOLT,Hex, 1" - 8 x 6 1/2", Gr 5

1шт.

36

GL-180

HOUSING

dual caster

1шт.

Includes 6992, 231-41412, 6636 and 413-1280

1шт.

37

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

38

80752

COTTER PIN,1/4" x 2 1/2"

1шт.

39

GD-300.15

DECAL

attention transport

1шт.

40

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

42

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

1шт.

43

5765

SEAL

4 3/8" id x 5 3/4" od x 7/16" thick

1шт.

44

612200

ROLLER BEARING,82.55mm ID x 36.17mm W

#580

1шт.

45

60751

BEARING ASSY,139.99mm OD x 28.57mm W

#572

1шт.

46

CC-109

WASHER

flat 1 5/8" id 3 1/16" od

1шт.

47

87561764

ADAPTER

ring caster

1шт.

47

300767A1

CAP

vacuum manifold end

1шт.

Выбрано товаров: 47
