(35.948.AB[01]) - DELUXE AUGER HYDRAULIC CYLINDER LAYOUT

Запчасти Case IH 2330 (35.948.AB[01]) - DELUXE AUGER HYDRAULIC CYLINDER LAYOUT (35) - HYDRAULIC SYSTEMS

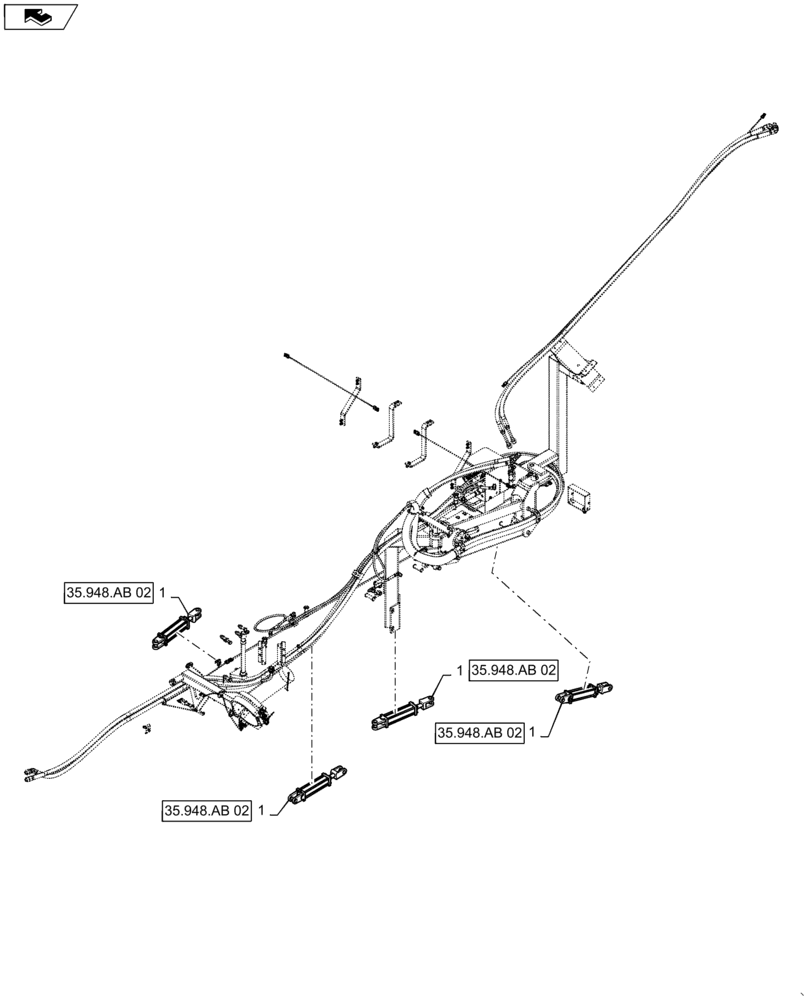

Схема запчастей Case IH 2330 - (35.948.AB[01]) - DELUXE AUGER HYDRAULIC CYLINDER LAYOUT (35) - HYDRAULIC SYSTEMS
35.948.ab 02
35.948.ab 02
35.948.ab 02
1
home
1
1
1
35.948.ab 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84490493

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

3000 No Pins

4шт.

2

47430171

SEAL KIT

1шт.

Выбрано товаров: 2
