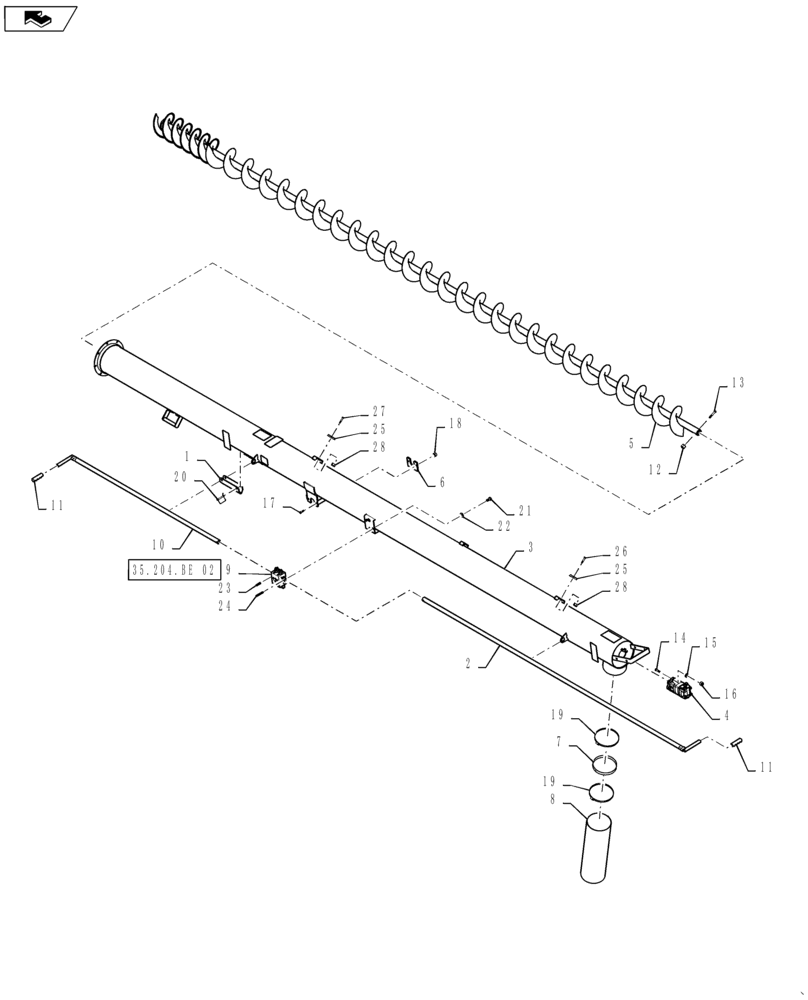

Запчасти Case IH 2330 (35.910.AB[01]) - DELUXE AUGER MOTOR ASSEMBLY AND MOUNTING (35) - HYDRAULIC SYSTEMS

1

47432133

STOP

Cylinder Red

1шт.

2

47434211

CONTROL VALVE

Auger

1шт.

3

47384016

CHUTE

10 Inch Auger Tube

1шт.

4

84583852

HYDRAULIC MOTOR

Eaton 2000

1шт.

5

84384047

AUGER FLIGHT

10 Inch

1шт.

6

GL-657

RETAINER

Auger Tube

2шт.

7

84300017

ADHESIVE STRIP

Anti Slip 638MM

1шт.

8

84300016

HOSE,890.00 mm

Auger Discharge

1шт.

9

84583850

HYDRAULIC VALVE

1шт.

10

84589126

CONTROL

Auger Valve Lower

1шт.

11

23781

GRIP

Handle Yellow

2шт.

12

280561

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

1шт.

13

87333768

NUT,1/2" - 20

1/2

1шт.

14

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

16

280431

NUT,1/2"-13, G5

4шт.

17

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

18

9637692

NUT,3/8"-16, GB

4шт.

19

76088794

HOSE CLAMP,8.12" - 9"

#136

2шт.

20

87574044

PIN

Square Wire Hook

2шт.

21

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

22

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

23

6248

LOCK PIN,5/16" x 1 1/2", Slotted

Roll

1шт.

24

8559

PIN,5/16" x 3"

Roll

1шт.

25

86983984

CLAMP

Hose

3шт.

26

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

27

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

28

88902

NUT,3/8"-16

3шт.

29

47430062

SEAL KIT

Dlx Auger

1шт.
