Запчасти Case IH 2330 (35.525.05) - TBH HYD LINES ACROSS SDX40 (35) - HYDRAULIC SYSTEMS

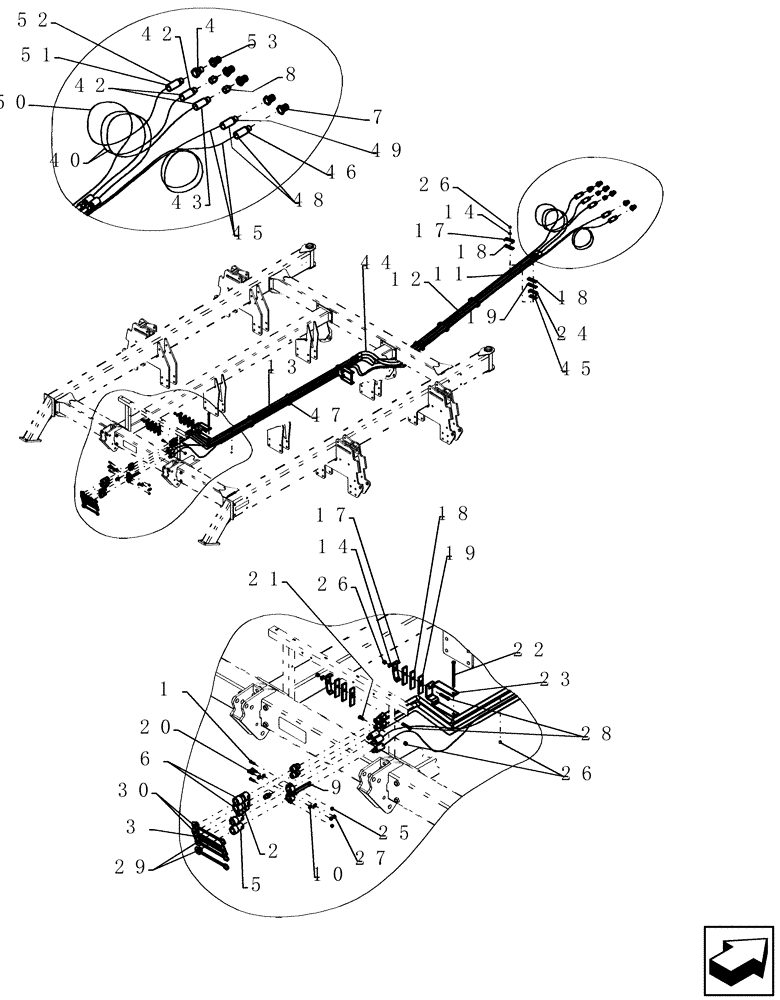

Схема запчастей Case IH 2330 - (35.525.05) - TBH HYD LINES ACROSS SDX40 (35) - HYDRAULIC SYSTEMS
12
8
19
3
51
20
45
45
9
26
47
19
44
26
49
22
18
50
48
10
17
1
7
14
5
42
25
21
18
46
13
2
30
24
14
23
42
26
43
53
17
52
27
11
6
18
29
40
4
28

Артикул

Название

Примечание

Количество

1

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

2шт.

2

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

3

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

4

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

1шт.

5

6935

COUPLING, QUICK, FEM

3/4"

2шт.

6

9359

COUPLING, QUICK, FEM

1"

2шт.

7

9412

QUICK MALE COUPLING

1/2"

4шт.

8

21668

REDUCER FITTING,1/2" - 14 Male NPT x 3/4" - 14 Female NPT

hydraulic 1/2" mpt x 3/4" fpt

2шт.

9

GE-202

CLAMP

for two 3/4" couplers

1шт.

10

1013043

WASHER

3/8" SAE

1шт.

11

1026677

STUD

3/8" x 3 1/4" nc gr d zp

1шт.

12

350191A1

HYD TUBE,25.4 mm OD, 2743 mm Length

assy 1" x 108" -16 jicfsw

2шт.

13

425680A2

HYD TUBE

assy 1" x 132"

2шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

15

86512927

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11-1/2 NPT

2шт.

17

1026712

CLAMP

5"

5шт.

18

1026714

ISOLATOR

neoprene 1/4" tk pln

10шт.

19

1026713

CLAMP

backing

5шт.

20

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

21

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

22

280284

BOLT,Hex, 3/8" - 16 x 7", Gr 5

2шт.

23

312995A1

MOUNTING PARTS

hyd clamp

2шт.

24

1024285

CLAMP

hose large

2шт.

25

280129

NUT,1/4"-20

2шт.

26

232-1446

NUT,3/8"-16, GC

8шт.

27

280736

NUT,5/16"-18, GC

2шт.

28

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

3шт.

29

6934

PLUG

dust, pioneer coupler - 3/4"

2шт.

30

9360

PLUG

dust, pioneer coupler - 1"

2шт.

40

51200104

HYDRAULIC HOSE,25.4mm ID x 2438.4mm L, SAE 100R1

1" x 96" fl

1шт.

41

GL-700.32

DECAL

fan pressure

1шт.

42

GL-374

COVER

hydraulic hose label - 2"

1шт.

43

GL-700.33

DECAL

fan return

1шт.

44

350326A1

ISOLATOR

clamp, hose small

2шт.

45

23773

HYDRAULIC HOSE,0.75" ID x 384.00"

1шт.

46

GL-700.35

DECAL

auger return

1шт.

47

87557085

CABLE TIE

CABLE STRAP 24" with stainless locking clip

10шт.

48

GL-373

COVER

hydraulic hose label - 1 1/2"

4шт.

49

GL-700.34

DECAL

auger pressure

2шт.

50

87502333

HYDRAULIC HOSE,19mm ID x 9830mm L

250 PSI

1шт.

51

GL-700.42

DECAL

drain

1шт.

52

87501182

COVER

hose label, 1 1/2"

1шт.

53

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

Выбрано товаров: 43
