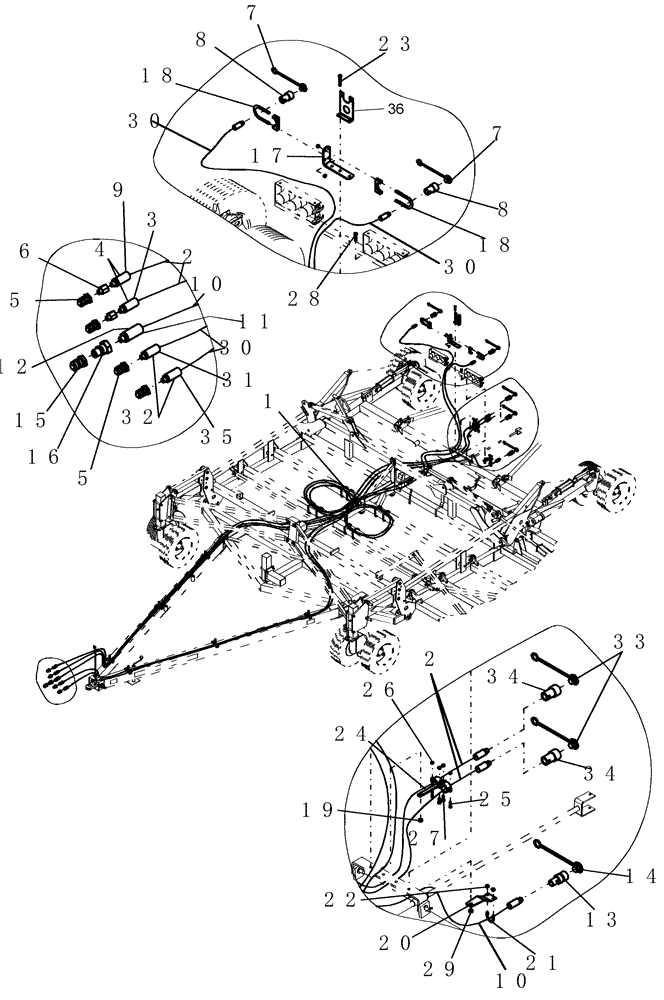

Запчасти Case IH 2330 (35.525.03) - TBH HYD LINES ACROSS SD440A (35) - HYDRAULIC SYSTEMS

2

21555

HYDRAULIC HOSE,25.4mm ID x 12319mm L, SAE 100R17

1" x 485" fl, 3/4" mpt x 1" mpt

2шт.

3

GL-700.32

DECAL

fan pressure

2шт.

4

87501182

COVER

hose label, 1 1/2"

4шт.

5

9412

QUICK MALE COUPLING

1/2"

4шт.

6

21668

REDUCER FITTING,1/2" - 14 Male NPT x 3/4" - 14 Female NPT

hydraulic 1/2" mpt x 3/4" fpt

2шт.

7

9360

PLUG

dust, pioneer coupler - 1"

2шт.

8

9359

COUPLING, QUICK, FEM

1"

2шт.

9

GL-700.33

DECAL

fan return

2шт.

10

87500095

HYDRAULIC HOSE,19mm ID x 12319mm L

3/4" x 485" fl, 1/2" mpt x 1/2" mpt

1шт.

11

GL-700.42

DECAL

drain

2шт.

12

87501182

COVER

hose label, 1 1/2"

2шт.

13

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

14

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

15

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

16

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

1шт.

17

GL-508

CLAMP

plate

1шт.

18

425021A1

CLAMP

clamp, 2" complete

2шт.

19

88902

NUT,3/8"-16

5шт.

20

GH-601

COUPLING

hydraulic mount third line

1шт.

21

1569

U-BOLT

ur 5/16" x 1 3/8" w x 2 1/16" d 3/4" thread

1шт.

22

280736

NUT,5/16"-18, GC

4шт.

23

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

24

GE-202

CLAMP

for two 3/4" couplers

1шт.

25

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

2шт.

26

280129

NUT,1/4"-20

2шт.

27

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

28

9706729

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

1шт.

29

280980

NUT,7/16"-14, GC

1шт.

30

21560

HYDRAULIC HOSE,19.05mm ID x 12319mm L, SAE 100R17

3/4" x 485" fl, 1/2" mpt x 3/4" mpt

2шт.

31

GL-700.34

DECAL

auger pressure

2шт.

32

GL-373

COVER

hydraulic hose label - 1 1/2"

4шт.

33

6934

PLUG

dust, pioneer coupler - 3/4"

2шт.

34

6935

COUPLING, QUICK, FEM

3/4"

2шт.

35

GL-700.35

DECAL

auger return

2шт.

36

GL-509

BRACKET

1шт.
