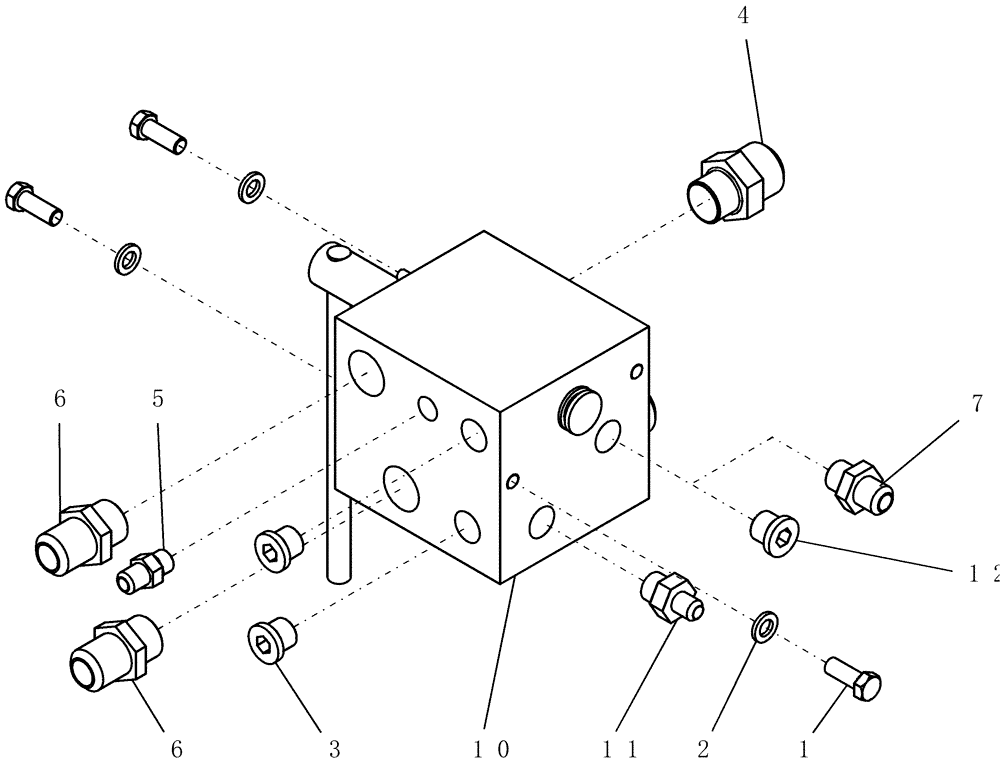

Запчасти Case IH 2330 (35.104.02) - HYDRAULICS - VALVE ASSEMBLY (2 TANK) (35) - HYDRAULIC SYSTEMS

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

2

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

3

71100209

PLUG,Hex Soc, 3/4"-16 ORB

2шт.

4

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

6

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

Variable Drive Only

1шт.

10

87500027

VALVE

3 position selector

1шт.

11

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

Mech carts only

1шт.
