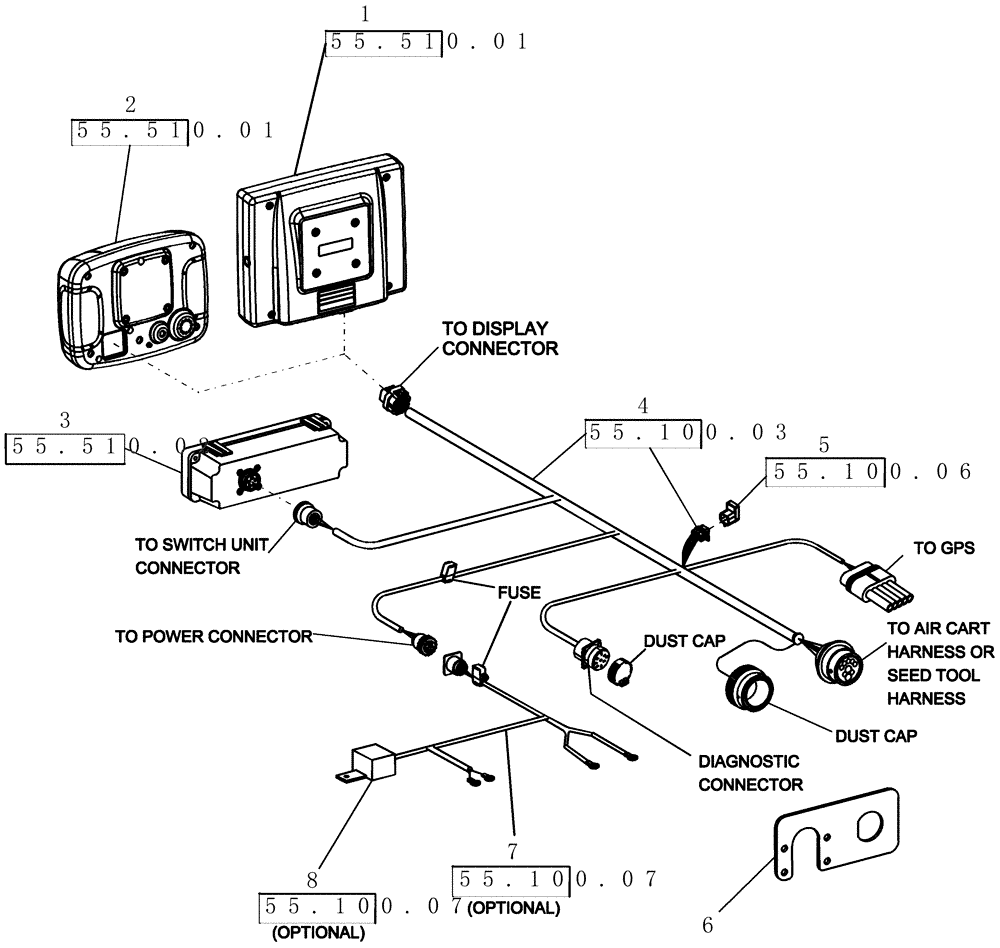

Запчасти Case IH 2330 (00.100.06) - LAYOUT - DISPLAY MONITOR, SWITCH UNIT AND TRACTOR HARNESS (00) - GENERAL & PICTORIAL INDEX

1

87668610

DISPLAY

field service black, Years: -01-AUG-08

1шт.

Refer to 55.510.01

1шт.

1

87385125

DISPLAY

field service black, Start Year: 01-AUG-08

1шт.

1

87385125R

REMAN-ELECT MONITOR

Reman-Monitor 2280, 2380, 3380, 3480, Precision Air Carts

1шт.

1

87385125C

CORE-MONITOR

Return Part Number

1шт.

1

84604338R

REMAN-ELECT MONITOR

2330, 2280 Both(1/08), 3380, 3430 Both(7/08), Reman For 87385125

1шт.

1

84604338C

CORE-MONITOR

Return Part Number

1шт.

2

87703363

CONTROL MONITOR

small wide configurable, Years: -01-FEB-10

1шт.

Refer to 55.510.01

1шт.

2

87703363R

REMAN-ELECT MONITOR

2280, 2330 BOTH (1/08-), 3380, 3430 BOTH (7/08-)

1шт.

2

87703363C

CORE-MONITOR

Return Part Number

1шт.

2

84240403

CONTROL MONITOR

Small Wide Configurable Display 1.5TS-CIH, Start Year: 01-FEB-10

1шт.

2

84486874R

REMAN-ELECT MONITOR

2280, 2330, Both (1/08-), 3380, 3430, Both (7/08-), Reman for New PN 84240403

1шт.

2

84486874C

CORE-MONITOR

Return Part Number

1шт.

3

87588879

SWITCH

unit, auxiliary

1шт.

Refer to 55.510.02

1шт.

If drop shipping, make arrangements for programming.

1шт.

This ECU does not contain any application software and **MUST** be programmed before use.

1шт.

4

87532170

HARNESS

tractor 7.6 m

1шт.

Refer to 55.100.03

1шт.

5

87601142

ELEC CONNECTOR,Female, 6 Cavities

electronic control unit

1шт.

Refer to 55.100.06

1шт.

6

GL-521

MOUNTING PARTS

implement receptacle

1шт.

7

14294

HARNESS

power adapter, Years: -01-APR-10

1шт.

Refer to 55.100.07

1шт.

7

84261537

HARNESS

power adapter, Start Year: 01-APR-10

1шт.

Refer to 55.100.07

1шт.

8

1983420C2

RELAY

12v 85 ohm c/w bracket

1шт.

Refer to 55.100.07

1шт.
