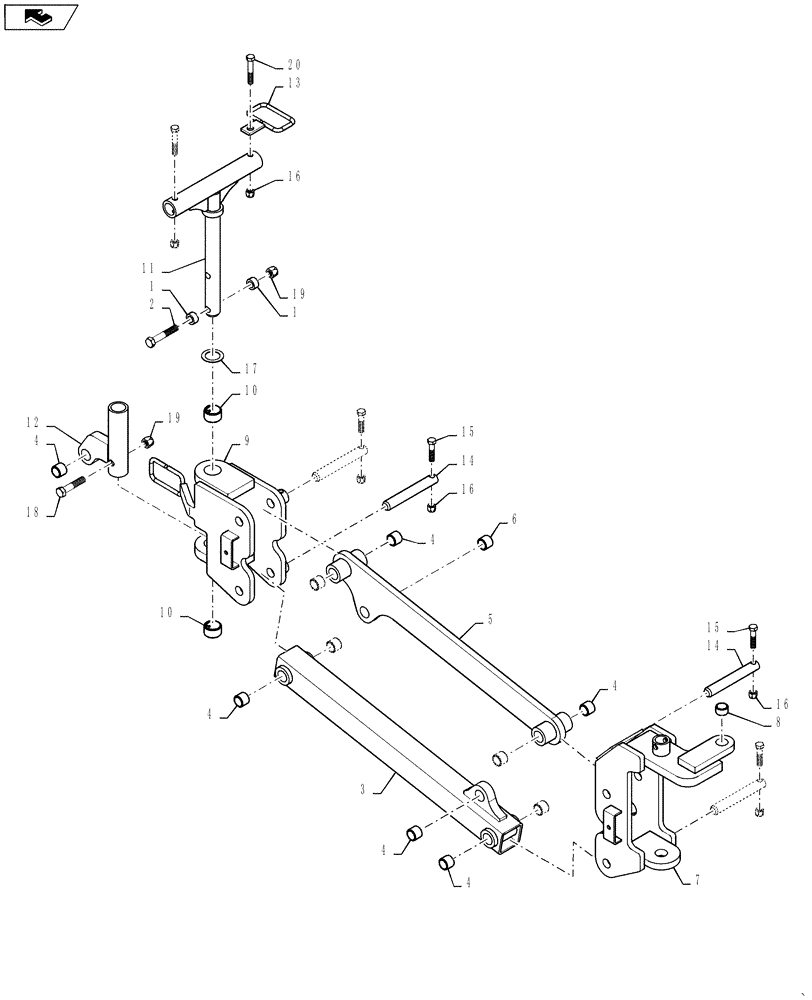

Запчасти Case IH 2330 (80.180.AU[01]) - DELUXE AUGER LINKAGE ARMS (80) - CROP STORAGE/UNLOADING

1

47446459

SPACER

Auger T Lock Black

2шт.

2

87314823

BOLT

.625 X 3 Grade 8

1шт.

3

47377873

LINKAGE

Lower Incl Bushings

1шт.

4

6635

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

1.25 X 1 X 1L

10шт.

5

47377900

LINKAGE

Upper Arm Incl Bushings

1шт.

6

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1.25.X1 X .75L

1шт.

7

47377942

LINK

Arm Inner Incl Bushing

1шт.

8

7995

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1.25 X 1 X.75

1шт.

9

47377957

LINK

Arm Outer Incl Bushing

1шт.

10

22093

BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk

1.75 X 1.5 X l LG

2шт.

11

47369793

SUPPORT

Auger T Black

1шт.

12

47369298

CLEVIS

Auger Pivot Incl Bushing

1шт.

13

84271625

BRACKET

Hose Guide

1шт.

14

84384076

PIN,25.4mm OD x 180mm L

25.4 X 163

4шт.

15

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

4шт.

16

9636698

NUT,1/2"-13, GB

6шт.

17

86632585

WASHER,1.53" ID x 2.25" OD x 0.06" Thk

1шт.

18

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

19

85700693

NUT,5/8" - 11, Gr C

2шт.

20

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.
