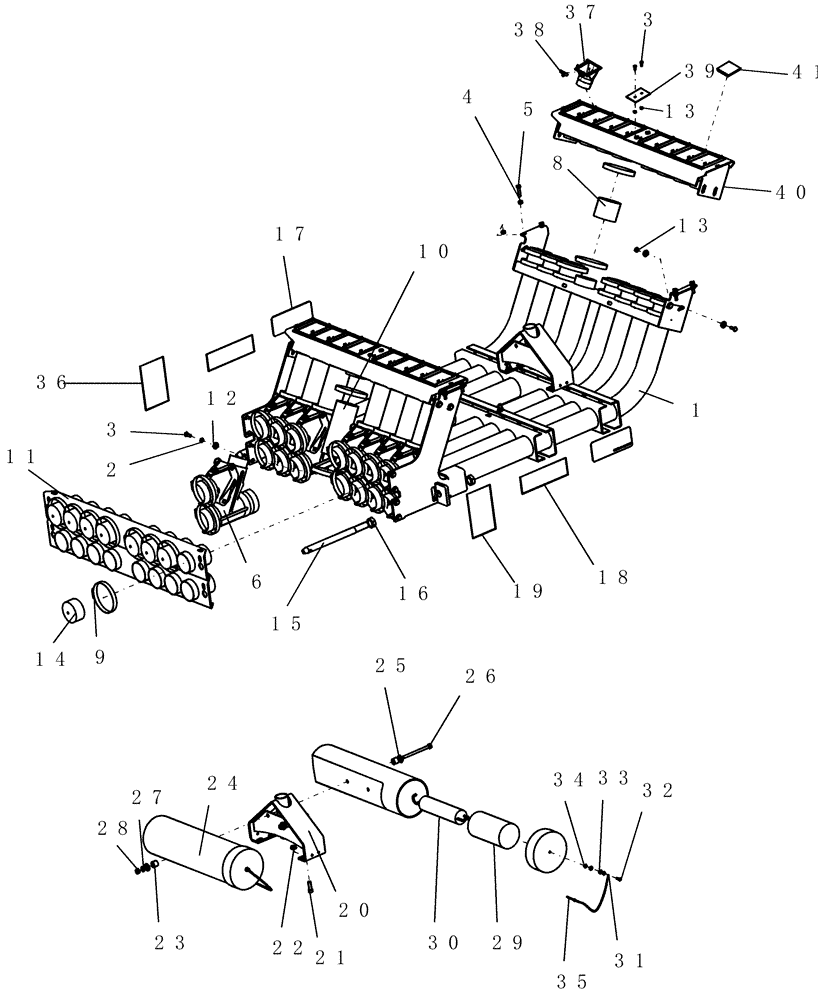

Запчасти Case IH 2330 (75.100.24) - CENTER MANIFOLD (2 TANK) (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
1
87616668
MANIFOLD
center 2 tank
1шт.
2
80682
LOCK WASHER,1/4"
8шт.
3
9707580
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
16шт.
4
7770
NUT,Hex, 1/4 - 20, Cl 5
16шт.
5
22577
BOLT
1/4"-20 x 1 1/4", G5, all thread
8шт.
6
448080A1
VALVE
single / double shoot
8шт.
8
GD-602
HOSE,2.50" ID x 2.25"
8шт.
Sold as Bulk Hose
1шт.
10
GL-452
HOSE,2.50" ID x 6.44"
8шт.
Sold as Bulk Hose
1шт.
11
GL-443
MANIFOLD
outlet
2шт.
12
80701
WASHER,0.31" ID x 0.73" OD x 0.07" Thk
24шт.
13
280129
NUT,1/4"-20
8шт.
14
4731
CAP
vinyl 2 1/2" id x 1" long
8шт.
15
8275
PIN,3/4" - 10 x 9.75"
pin locator, center manifold
2шт.
16
84972
JAM NUT,Jam, 3/4"-10, G2
4шт.
17
22409
DECAL
center manifold cleanout
2шт.
18
GL-700.21
CAUTION DECAL
keep hands
2шт.
19
GL-700.22
DECAL
two outlet valve a
1шт.
20
GL-444
CARRIER
center manifold
2шт.
21
21319
BOLT
5/16"-18 x 1" ss hx-skt
8шт.
22
9586
FLANGE NUT
flange 5/16" serrated
8шт.
23
GL-460
SPACER
tube mount
4шт.
24
425043A1
TUBE
storage & cap, 17 3/16"
2шт.
26
88964
BOLT,Hex, 5/16" - 18 x 4", Gr 5
2шт.
27
80681
LOCK WASHER,5/16"
2шт.
28
9635082
NUT,5/16" - 18, Gr 5
2шт.
29
425090A1
PLASTIC-BAG
collector with clasp
2шт.
30
412785A1
SCALE
hanging weight
1шт.
31
GD-388
CHAIN
safety, inlet shield - 9"
2шт.
32
412750A1
SCREW,Sl, #8 - 32 x 3/4"
mch #8-32 x 3/4" ph sq-slt
2шт.
33
280299
WASHER,0.19" ID x 0.44" OD x 0.05" Thk
4шт.
34
87653
NUT,#8-32
4шт.
35
80755
COTTER PIN,1/8" OD x 1" L
2шт.
36
GL-700.44
DECAL
two outlet valve b
1шт.
37
9475
TUBE
manifold transition, velocity sensor
16шт.
38
425095A1
PLUG
manifold transition - velocity sensor
16шт.
39
GL-116
SPACER
plate transition manifold rear
2шт.
40
GL-442
PANEL
mount, transition manifold
1шт.
41
7187
PLUG
manifold transition
1шт.
Выбрано товаров: 42
