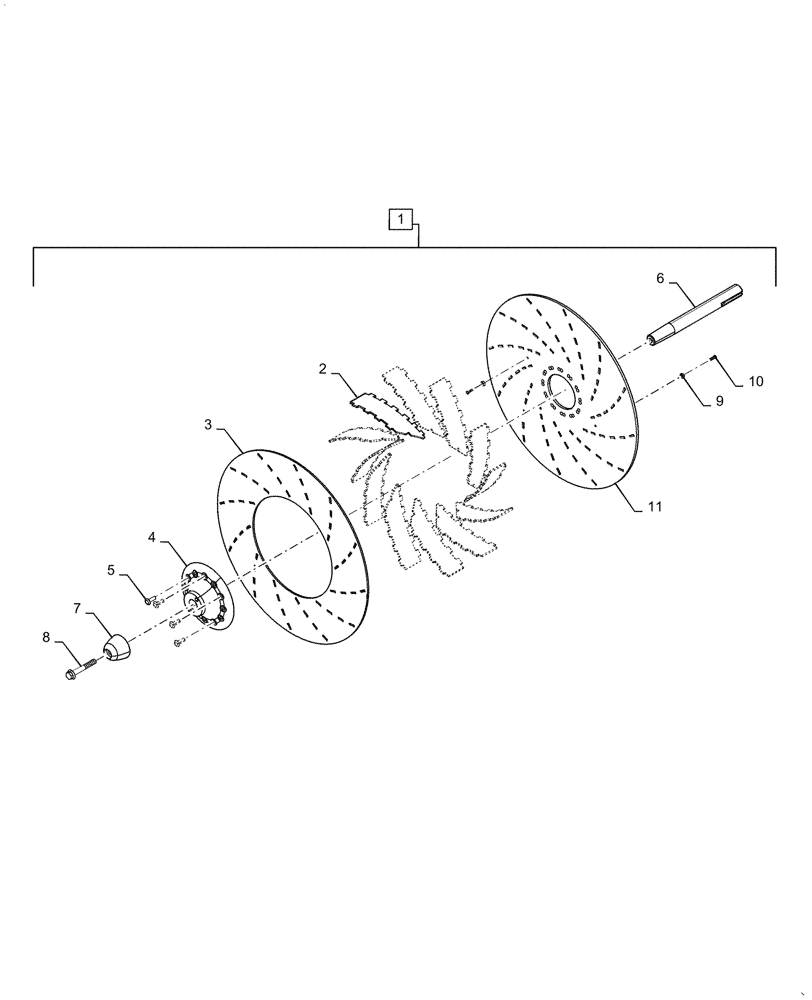

Запчасти Case IH 2330 (75.100.28) - FAN IMPELLER L - Field Processing

1

GI-117A

Assembly, Incl 2 - 11

IMPELLER

1шт.

2

GD-890-01

Fan Blade

FAN BLADE

12шт.

3

NSS

NOT SOLD SEPARAT

Back Disk, Serviced w/ Ref 1

1шт.

4

6181

Fan Impeller Hub

FAN

1шт.

5

4994

RIGID TUBE

0.25" x 0.75"

12шт.

6

GI-117

SHAFT

Fan Belt Drive

1шт.

7

GE-396

HUB

Spinner

1шт.

8

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

1шт.

9

87653

NUT,#8-32

2шт.

10

8453

RIVET

0.125" x 0.5"

2шт.

11

NSS

NOT SOLD SEPARAT

Back Disk, Serviced w/ Ref 1

1шт.
