Запчасти Case IH 2280 (55.100.01) - AIR CART LIGHTING HARNESS (55) - ELECTRICAL SYSTEMS

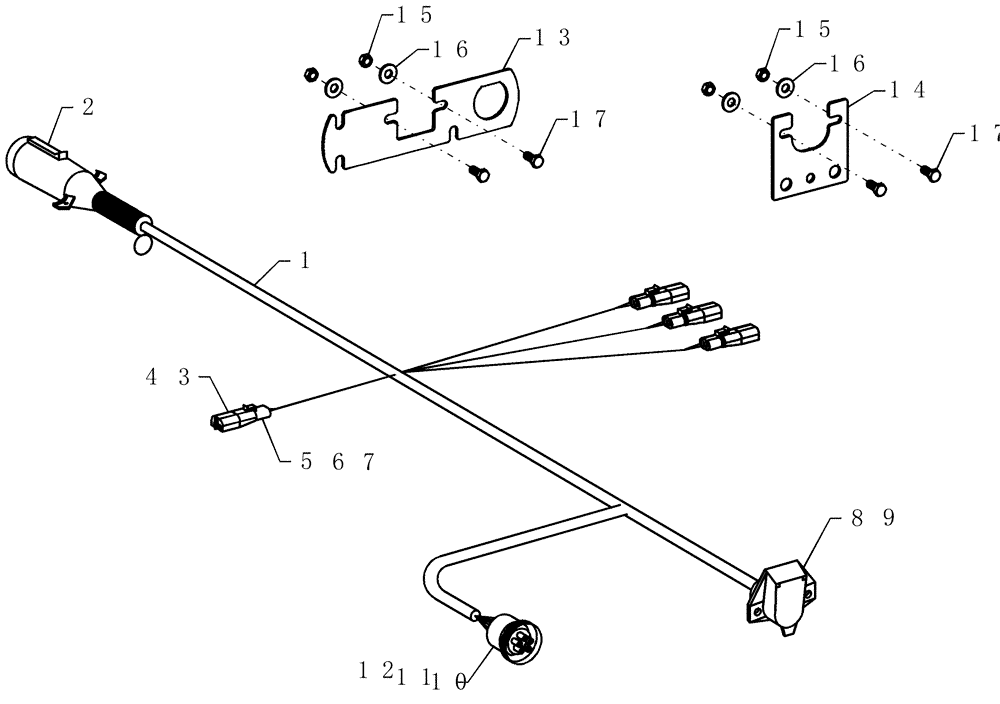

Схема запчастей Case IH 2280 - (55.100.01) - AIR CART LIGHTING HARNESS (55) - ELECTRICAL SYSTEMS
16
2
8
17
11
6
7
3
16
14
12
1
5
17
13
4
9
15
10
15

Артикул

Название

Примечание

Количество

1

419978A1

HARNESS

lighting, cart, tow behind

1шт.

1

419979A1

HARNESS

lighting, cart, tow between

1шт.

2

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

4шт.

Includes 481849C1

1шт.

3

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

8шт.

4

225127C1

PLUG

cavity, green rubber

4шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

8шт.

6

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

8шт.

7

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

1шт.

8

412766A1

MULTIPOLE CONNECTOR

metal 7c receptacle

1шт.

9

481849C1

PROTECTIVE COVER

rubber boot

1шт.

10

225224C1

ELEC CONNECTOR,Female, 5 Pin

plastic 5c plug

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

1шт.

12

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

4шт.

13

GL-803

HITCH BRACKET

mount, rear

1шт.

Tow Behind with rear hitch

1шт.

14

GR-250

BRACKET

mount, receptacle

1шт.

Tow Behind without rear hitch

1шт.

15

281010

LOCK NUT,7/8"-14, GC

2шт.

16

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

17

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

Выбрано товаров: 21
