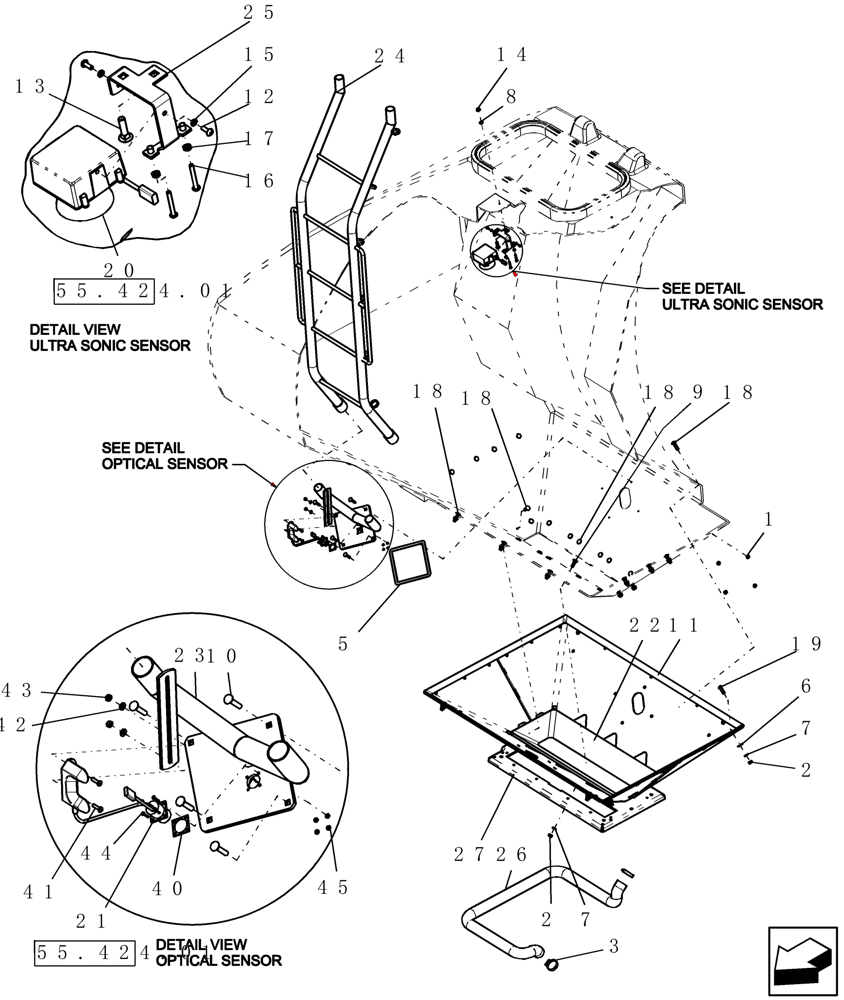

Запчасти Case IH 2280 (39.100.05) - INTERNAL LADDERS AND BIN SENSORS (39) - FRAMES AND BALLASTING

1

281010

LOCK NUT,7/8"-14, GC

4шт.

2

9628503

NUT,3/8"-16, G5

35шт.

3

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

5

425468A1

SEAL

sponge 1/2" wide x 1/4" thick x 66" long

1шт.

Cut 66" from 25' roll marked 86992328

1шт.

5

86992328

SEAL

sponge 1/2" w x 1/4" thick adhesive

1шт.

Must be ordered in multiples of 25

1шт.

6

8633

WASHER

7/16" id x 1" od x 5/64" thick, ss

8шт.

7

280681

LOCK WASHER,3/8", Stainless

20шт.

8

22404

WASHER

sealing 5/16" ss neop

1шт.

9

51200135

CARRIAGE BOLT,3/8" - 16 x 1.25", Full Thd, Stainless

6шт.

10

87012914

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Stainless

12шт.

11

425487A1

KIT

sponge 1 1/4" x 3/4" cell, adhesive

1шт.

Must be ordered in multiples of 12.5

1шт.

12

9528

HEX SOC SCREW,Sl Rnd Hd, #10 - 32 x 0.50", SST

machine #10-32 x 1/2" rh skt-slt ss

2шт.

13

9533

CARRIAGE BOLT

5/16" x 1 1/4" ss

1шт.

14

9068

LOCK NUT

lock 5/16", Start Year: 02-SEP-04

1шт.

15

9587

LOCK WASHER

#10 ss

2шт.

16

9588

SCREW,Sl Sq, #10 - 32 x 1.50"

mch #10-32 x 1 1/2" rh sq-slt ss

2шт.

17

9589

NUT

#10-32 ss

2шт.

18

9793

CARRIAGE BOLT

3/8" x 1 1/2" ss

21шт.

19

173-248

SCREW,Sl Rd Hd, 3/8 - 16 x 1 1/4"

8шт.

20

425096A1

SENSOR

bin level, sonar

1шт.

Refer to 55.424.01

1шт.

20

84529354R

REMAN-SENSOR

2280, 2330, Both (1/08-), 3380, 3430, Both (7/08-), All PRECISION AIR CART, bin level, sonar, INTERNAL LADDERS AND BIN SENSORS, Reman for New PN 425096A1

1шт.

20

84529354C

CORE-SENSOR

Return Number

1шт.

21

87508154

KIT

Optical Bin Level

1шт.

Includes mounting hardware

1шт.

Refer to 55.424.01

1шт.

22

22705K

SEAL KIT

sub hopper

1шт.

23

GL-146

BRACKET

air inlet/internal ladder

1шт.

24

GL-159

LADDER

internal tank

1шт.

24

87420668

LADDER

internal 430 bushel cart

1шт.

25

GL-349

BRACKET

mount, bin level sensor - ultrasonic

1шт.

26

GM-426

HOSE,1740.00 mm

Tank Pressurization Long 1740 mm

1шт.

26

GM-425

HOSE,241.00 mm

Tank Pressurization Short 241 mm

1шт.

For Tow Behind use GL-421 at Tank #3, for Tow Between use GL-421 at Tank #2 and #3

1шт.

27

GL-990FR

HOPPER

sub tank mount

1шт.

40

51200017

GASKET,25.4mm ID x 1.6mm Thk

rubber, 25 mm id X 2.5 mm thick

1шт.

41

9447

SCREW,Pan Hd, #10 - 24 x 0.75", Sl Sq Drive

mch #10-24 x 3/4" ph sq-slt ss

2шт.

42

9527

WASHER

#10 ss

2шт.

43

9448

NUT

#10-24 stainless steel

2шт.

44

9445

SCREW,Pan Hd, #4 - 40 x 5/8", Stainless

mch #4-40 x 5/8" ph pi ss

4шт.

45

412912A1

LOCK NUT

#4-40, stainless steel

4шт.

100

NSS

NOT SOLD SEPARAT

SENSOR, sonar bin level aiming

1шт.

Not Shown

1шт.
