Запчасти Case IH 2280 (39.100.03[01]) - PLATFORMS AND EXTERNAL LADDERS (2 TANK) PRIOR TO 07/2011 (39) - FRAMES AND BALLASTING

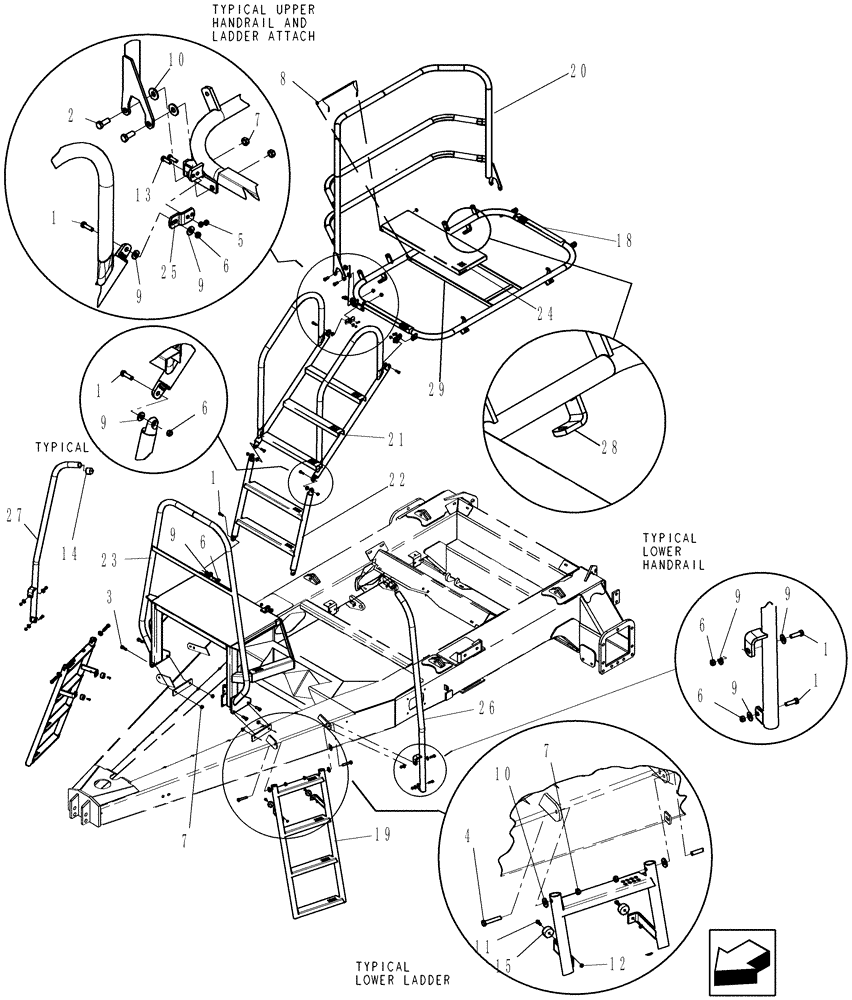

Схема запчастей Case IH 2280 - (39.100.03[01]) - PLATFORMS AND EXTERNAL LADDERS (2 TANK) PRIOR TO 07/2011 (39) - FRAMES AND BALLASTING
1
29
9
24
18
26
9
19
1
9
6
9
2
23
3
20
7
10
5
21
27
9
9
28
1
8
25
12
6
11
1
1
22
14
15
9
10
7
6
13
6
4
7
6

Артикул

Название

Примечание

Количество

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

11шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

4

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

4шт.

5

86629544

NUT,5/16” – 18, GR B

4шт.

6

9637692

NUT,3/8"-16, GB

10шт.

7

9636698

NUT,1/2"-13, GB

12шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

14шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

11

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

12

20356

NUT,1/4"-20, GB

4шт.

13

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

14

3419

CAP

vinyl 1 5/8" x 1 1/2"

2шт.

15

8763

FOOT

rubber, 1 1/2" od x 1/4" id x 3/4"

4шт.

18

87613959

TOP

platform 2 tank

1шт.

19

GL-188

LADDER

hitch frame

2шт.

20

87614474

HANDRAIL

2 tank

1шт.

21

GL-192

LADDER

upper

1шт.

22

GL-193

LADDER

lower tank

1шт.

22

87420825

LADDER

lower tank 430 bushel cart

1шт.

23

GL-330

PLATFORM

frame

1шт.

24

GL-350

GRATING

top platform - flip up

2шт.

25

84496340

BRACKET

Ladder Bracket Top RH

1шт.

25

84496341

BRACKET

Ladder Bracket Top LH

1шт.

26

GL-356

HANDRAIL

frame LH

1шт.

27

GL-755

RAIL ASSY.

right - frame mount

1шт.

28

84333264

LUG

Mounting, Top Platform

2шт.

29

84333266

BRACKET

Brace, Floor, Platform

2шт.

Выбрано товаров: 28
