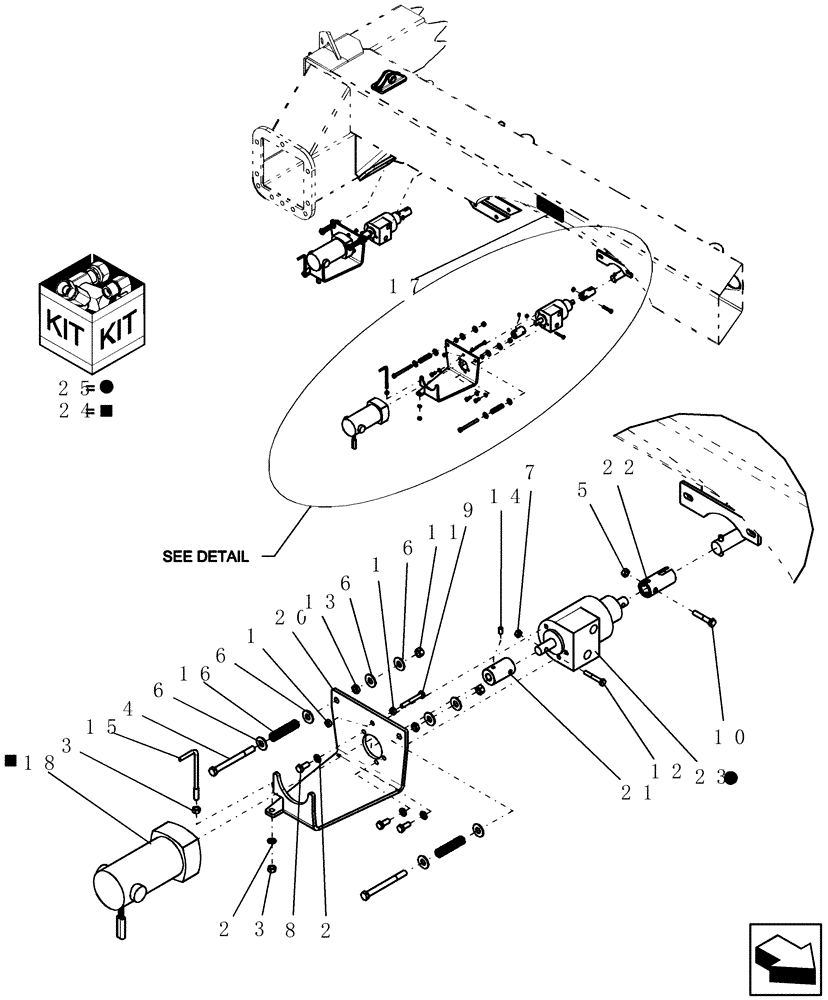

Запчасти Case IH 2280 (75.100.16) - VARIABLE DRIVE COMPONENTS (2 TANK) (75) - SOIL PREPARATION

1

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

2

80681

LOCK WASHER,5/16"

8шт.

3

9635082

NUT,5/16" - 18, Gr 5

4шт.

4

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

4шт.

5

281010

LOCK NUT,7/8"-14, GC

2шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

16шт.

7

280129

NUT,1/4"-20

2шт.

8

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

9

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

10

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

2шт.

11

9628503

NUT,3/8"-16, G5

4шт.

12

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

2шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

14

6986

SET SCREW

1/4"-20 x 1/2"

2шт.

15

9456

BOLT

5/16"-18 x 4 1/4"l x 1 35/64"d 1 9/16" leg

2шт.

16

87506229

COMPRESSION SPRING

1/16" Wire x 5/8" od x 2 3/4" long

4шт.

17

22408

DECAL

vr drive filter maintenance

1шт.

18

87445140

ELECTRIC MOTOR

121rpm @12v 1/15hp

1шт.

87445140R

REMAN-ELECTRIC MOTOR

2280, 2330 both (1/08-)

1шт.

87445140C

CORE-ELECTRIC MOTOR

Return Number

1шт.

20

GL-102

BRACKET

mount, variable rate drive

2шт.

21

GL-484

COUPLING

2шт.

22

GL-485

COUPLING,22.56mm ID x 31.75mm OD x 66.67mm L

2шт.

For 3.0 cubic inch torque generator

1шт.

22

GM-350

COUPLING,23.11mm ID x 31.8mm OD x 70.6mm L

tg to meter roller

2шт.

For 2.2 cubic inch torque generator

1шт.

23

GM-363

HYDRAULIC MOTOR

torque generator 2 3/16" 3/rev

2шт.

24

87504964

SEAL KIT

seals output sht vr motor

1шт.

24

GM-399K

KIT

VR Motor Bearing Replacement

1шт.

25

22396

SEAL KIT

torque generator

1шт.
