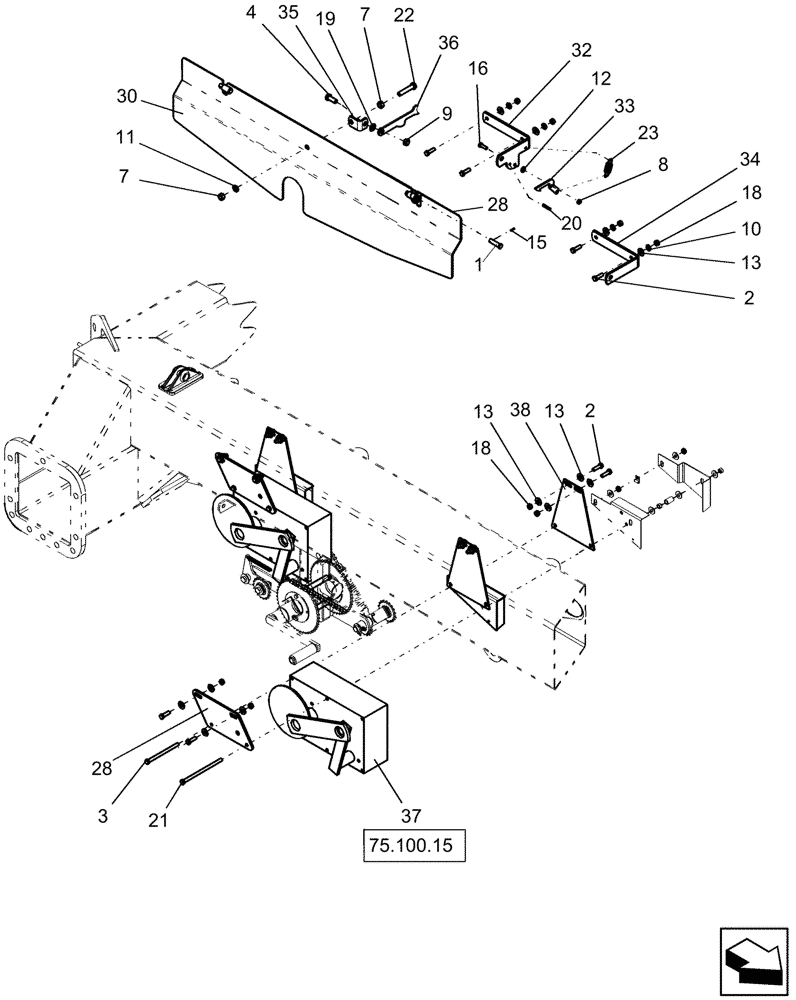

Запчасти Case IH 2280 (75.100.13) - MECHANICAL DRIVE - ON FRAME - DRIVE BOXES (2 TANK) (75) - SOIL PREPARATION

1

427-8175

CLEVIS PIN,1/2" x 1 3/4'"

3шт.

2

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

3

20304

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

3шт.

4

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

7

280431

NUT,1/2"-13, G5

12шт.

8

281010

LOCK NUT,7/8"-14, GC

5шт.

9

86992215

LOCK NUT,1/2"-13, GC

1шт.

10

81547

LOCK WASHER,7/16"

6шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

5шт.

12

95-21031

WASHER,1/4"

1шт.

13

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

12шт.

15

300868

ROLL PIN,6mm OD x 36mm L, Slotted

1шт.

16

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5шт.

18

9628503

NUT,3/8"-16, G5

8шт.

19

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

1шт.

20

38-11010

LOCK PIN,5/32" x 5/8", Slotted

3шт.

21

7087

BOLT

3/8"-16 x 7", G5, 2 1/2" thread

3шт.

22

9439

BOLT

1/2"-13 x 2 1/2" G2 all thread

1шт.

23

87506268

COIL SPRING

1/16" wire x 3/4" od x 2 1/2" long

1шт.

28

GL-319

PLATE

mounting outer

3шт.

30

87609544

SHIELD

flip up mech drive

1шт.

32

GL-376

BRACKET

shield lock down

1шт.

33

GL-377

LOCKING DEVICE

shield - mechanical drive

1шт.

34

GL-486

BRACKET

flip up shield mechanical drive

2шт.

35

GL-488

BRACKET

shield brace

1шт.

36

84148350

SUPPORT

brace, 2 tank mechanical drive

1шт.

37

GL-732A

TRANSFER BOX

meter drive assembly

2шт.

Refer to 75.100.15

1шт.

38

GM-278

PLATE

mounting inner - mechanical drive

3шт.
