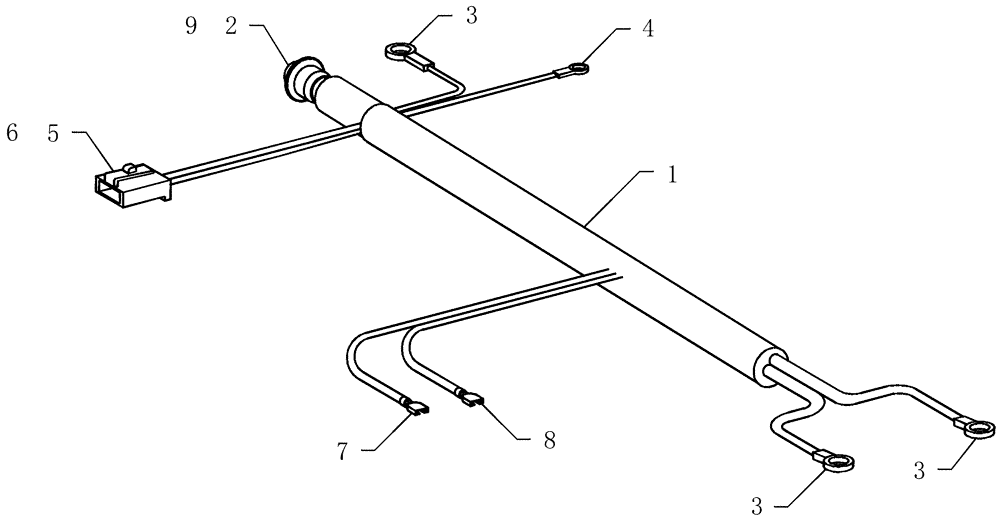

Запчасти Case IH 2230 (55.100.19) - ALTERNATOR HARNESS, VARIABLE DRIVE (55) - ELECTRICAL SYSTEMS

1

419982A1

HARNESS

alternator VR air cart

1шт.

2

425053A1

LENS

indicator round red

1шт.

3

425051A1

RING

terminal 10-12awg 1/2 yellow

3шт.

4

412732A1

ELEC. TERMINAL PIN,3 - 6 mm2

terminal ring 10-12awg 5/16" yellow

1шт.

5

402314C1

CONNECTION

elec plastic plug 2c

1шт.

6

87505179

SOCKET

18-20awg

2шт.

7

425044A1

TERMINAL CONNECTOR,22 - 18 SAE

terminal disc 22-18awg 1/4" f

1шт.

8

225185C1

TERMINAL CONNECTOR

disc 12-10awg

1шт.

9

86000377

BULB

C2F, #1893, 14V

1шт.
