Запчасти Case IH 2230 (55.100.16) - AIR CART HITCH HARNESS - TBH (55) - ELECTRICAL SYSTEMS

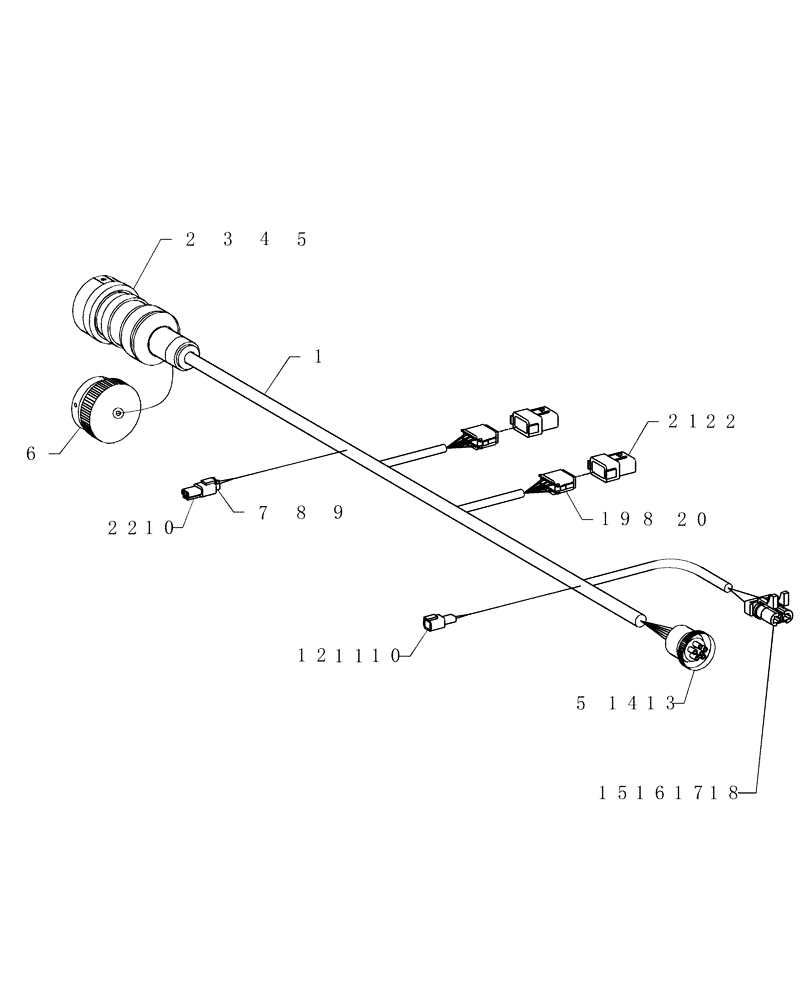

Схема запчастей Case IH 2230 - (55.100.16) - AIR CART HITCH HARNESS - TBH (55) - ELECTRICAL SYSTEMS
12
22
20
6
7
18
19
9
17
21
2
3
15
13
5
14
5
16
8
10
4
11
22
1
10
8

Артикул

Название

Примечание

Количество

1

419974A1

HARNESS

hitch tow behind

1шт.

2

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

3

425083A1

POWER SOCKET

contact socket 8-10 Deutsch

2шт.

4

900302

TERMINAL

12-14awg

2шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

8шт.

6

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

7

222135A1

CONNECTOR, ELEC

CONNECTOR plastic 2c plug

1шт.

8

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

26шт.

9

222846A1

STOP LOCK

2c plug connector

1шт.

10

222136A1

ELEC CONNECTOR,Male, 2 Pin

plastic 2c receptacle

2шт.

11

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

2шт.

12

222848A1

ELEC CONNECTOR

lock 2c receptacle

1шт.

13

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

14

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

2шт.

15

87688710

MULTIPOLE CONNECTOR,Female, 2 Pole

cab plastic 2c plug

1шт.

16

225444C1

CONNECTOR, ELEC

CONNECTOR contact skt 12-10awg brs tin p

2шт.

17

419992A1

SEAL

connector ppl 4.5-3.6 mm

2шт.

18

14890

STOP LOCK

2c plug connector

1шт.

19

87700156

CONTACT HOUSING,Female, 12 Pole

Deutsch 12 way dtm plug, grey

2шт.

20

223674A1

WEDGE

lock 12c plug

2шт.

21

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

2шт.

22

225055C1

PLUG

connector 20awg

26шт.

Выбрано товаров: 22
