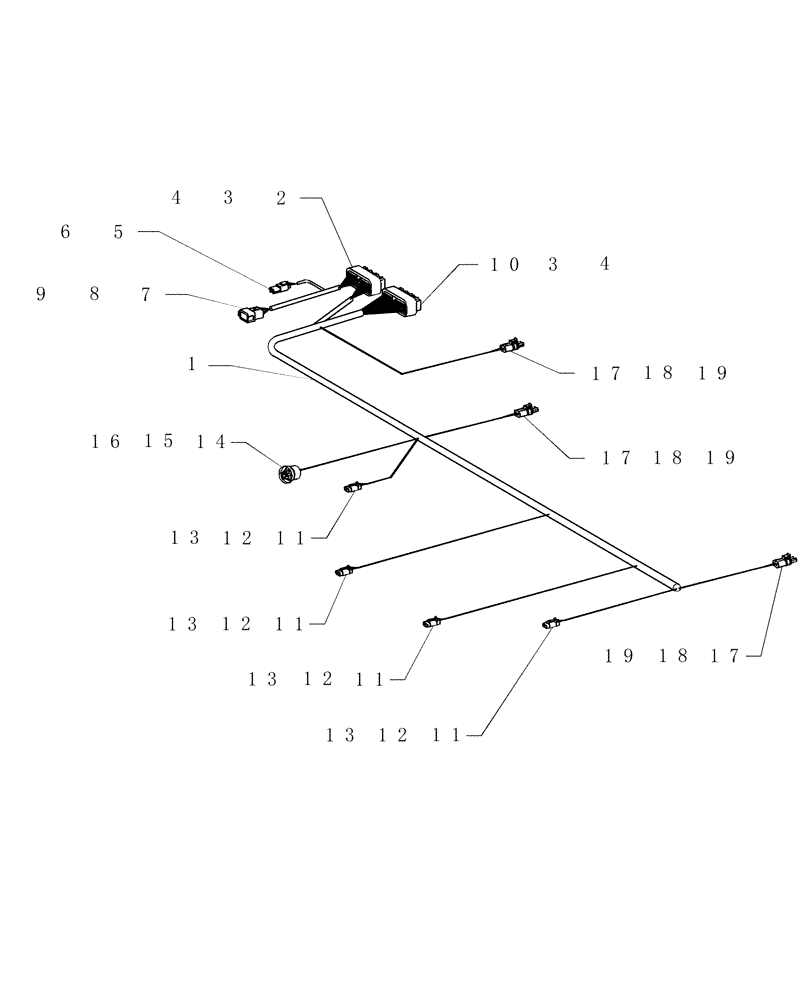

Запчасти Case IH 2230 (55.100.13) - THIRD TANK HARNESS (55) - ELECTRICAL SYSTEMS

1

14910V2

HARNESS

cart 3rd tank

1шт.

2

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

3

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

35шт.

4

14999

ELEC CONNECTOR

plug, cavity, cinch

25шт.

5

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

6

225055C1

PLUG

connector 20awg

3шт.

7

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

8

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

12шт.

9

223676A1

WEDGE

elec lock 12c receptacle

1шт.

10

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

11

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

5шт.

12

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

15шт.

13

87705586

WEDGE

lock 3c plug

5шт.

14

225224C1

ELEC CONNECTOR,Female, 5 Pin

plastic 5c plug

1шт.

15

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

4шт.

16

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

1шт.

17

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

3шт.

18

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

6шт.

19

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

6шт.
