(55.100.11) - PRESSURE SWITCH CABLE

Запчасти Case IH 2230 (55.100.11) - PRESSURE SWITCH CABLE (55) - ELECTRICAL SYSTEMS

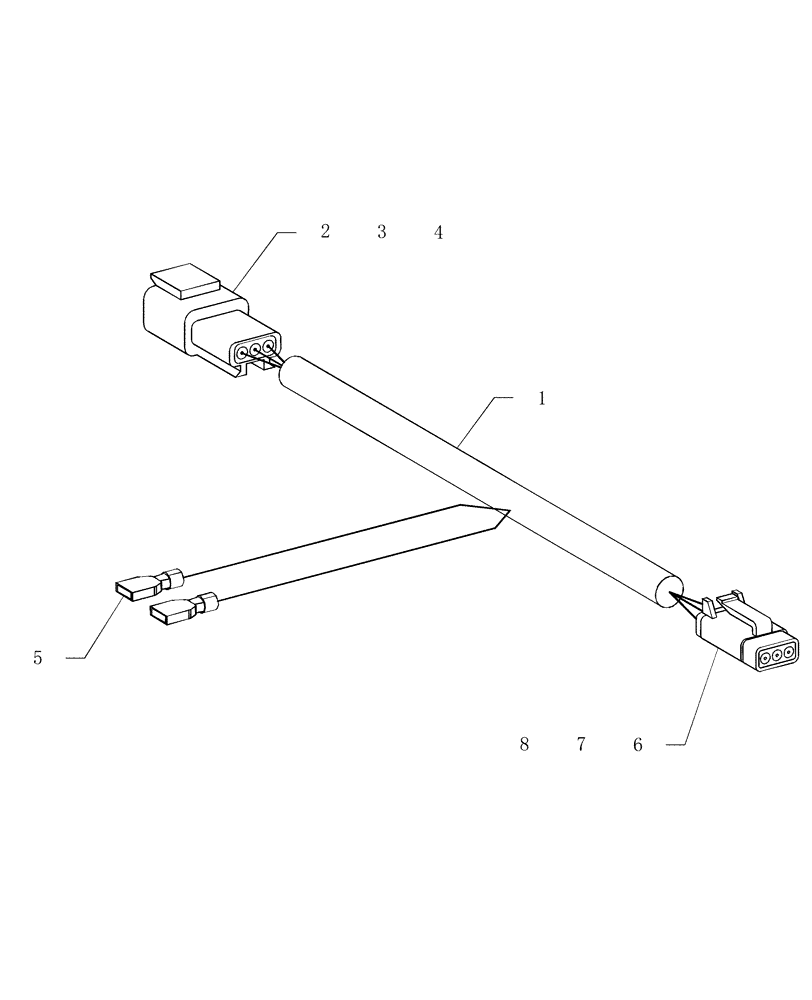

Схема запчастей Case IH 2230 - (55.100.11) - PRESSURE SWITCH CABLE (55) - ELECTRICAL SYSTEMS
1
6
8
3
4
7
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

419983A1

WIRE HARNESS

pressure switch

1шт.

2

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

3

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

3шт.

4

280448A1

STOP LOCK

3c receptacle connector

1шт.

5

425044A1

TERMINAL CONNECTOR,22 - 18 SAE

terminal disc 22-18awg 1/4" f

2шт.

6

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

7

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

3шт.

8

87705586

WEDGE

lock 3c plug

1шт.
