Запчасти Case IH 2230 (39.110.19) - TOW BEHIND SDX, ATX AND NFX FIELD HITCH (39) - FRAMES AND BALLASTING

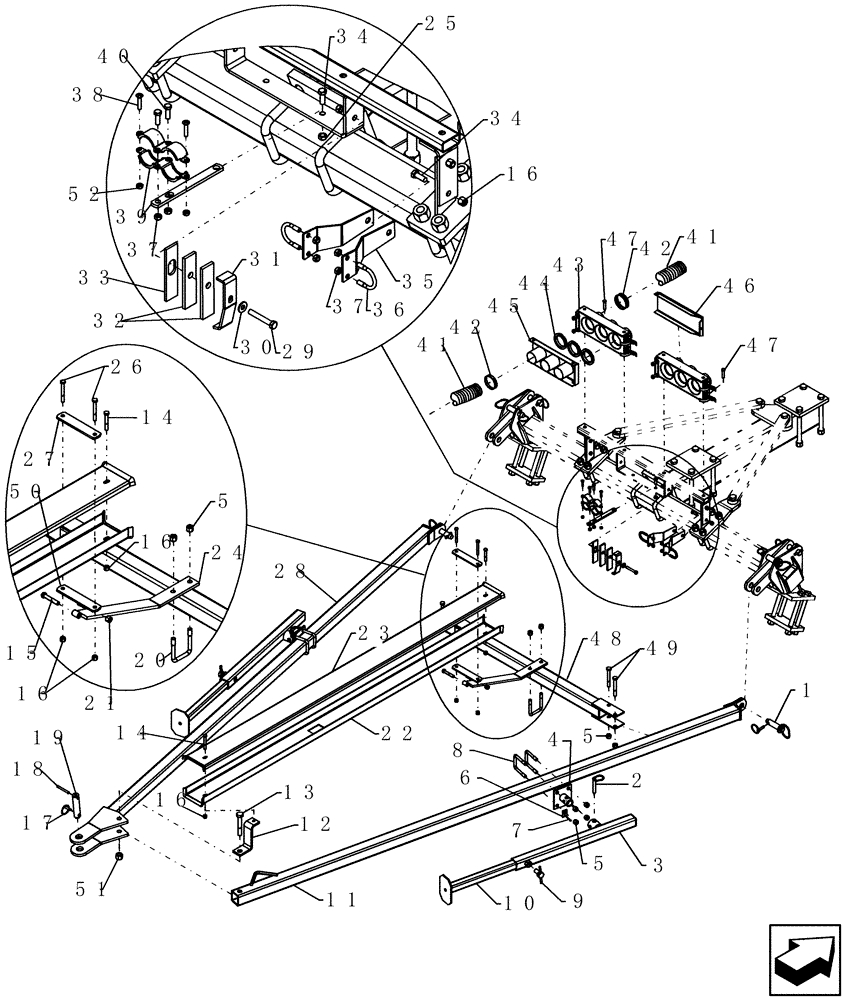

Схема запчастей Case IH 2230 - (39.110.19) - TOW BEHIND SDX, ATX AND NFX FIELD HITCH (39) - FRAMES AND BALLASTING
49
19
41
14
45
38
31
15
2
1
37
26
5
16
30
42
16
37
34
43
28
5
34
24
16
6
36
14
47
50
40
3
21
51
17
25
39
44
5
9
29
33
32
4
7
23
8
22
20
41
46
42
48
18
10
27
13
11
52
16
47
12
35

Артикул

Название

Примечание

Количество

1

412768A1

HITCH PIN

1" x 2 3/4" usable

2шт.

2

412752A1

PIN

and chain assembly jack mount

2шт.

3

GE-359

STAND

field hitch - upper

2шт.

4

GH-528

MOUNTING PLATE

hitch support

2шт.

5

87530607

NUT

1/2"-13, GB

10шт.

6

GH-530

BRACKET

mount, fan shield chain

2шт.

7

80755

COTTER PIN,1/8" OD x 1" L

2шт.

8

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

4шт.

9

GE-193A

HANDLE

height adjustment

2шт.

10

GE-358

STAND

field hitch - lower

2шт.

11

351930A1

HITCH

rail RH

1шт.

12

GH-529

BRACKET

mount, hose tray

1шт.

13

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

14

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

15

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

16

231-1446

NUT,3/8" - 16, Gr 5

5шт.

17

6425

LINCH PIN

7/16" x 1 3/8"

1шт.

18

86544809

LOCK PIN,9.53mm OD x 76.2mm L, Slotted

1шт.

19

GE-293A

HITCH PIN

draw assembly

1шт.

Includes linch pin and roll pin

1шт.

20

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

1шт.

21

86637736

NUT,7/16"-14, GB

1шт.

22

GH-144

TRAY

bottom hose field hitch

1шт.

23

GH-189

TRAY

hose, top

1шт.

24

GH-245

MOUNTING PARTS

crossmember

1шт.

25

88902

NUT,3/8"-16

1шт.

26

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

27

GH-526

CLAMP

plate, hose shield

2шт.

28

351932A1

HITCH

rail formed LH

1шт.

29

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

30

1013043

WASHER

3/8" SAE

1шт.

31

1026712

CLAMP

5"

1шт.

32

1026714

ISOLATOR

neoprene 1/4" tk pln

2шт.

33

1026713

CLAMP

backing

1шт.

34

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

35

GH-601

COUPLING

hydraulic mount third line

2шт.

36

7938

U-BOLT

ur 5/16"-18 x 1 3/8" w x 1 5/8" d

2шт.

37

281010

LOCK NUT,7/8"-14, GC

6шт.

38

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

2шт.

39

GE-202

CLAMP

for two 3/4" couplers

1шт.

40

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

41

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

42

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

43

GD-672A

HOLDER

quick connect 2 1/2" female

1шт.

Includes two 88011, four 87016560, two 5625 and four 4630

1шт.

44

6177

OIL SEAL

quick connect 2 1/2" id

1шт.

45

GD-673

FITTING

hose connector 2 1/2"

1шт.

46

GD-254

COVER

plate hose connect

1шт.

47

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

48

351666A1

BRACKET

SDX hitch

1шт.

49

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

50

GH-527

HOSE CLAMP

shield

1шт.

51

86754

NUT,3/4"-10, GB

1шт.

52

280129

NUT,1/4"-20

2шт.

Выбрано товаров: 54
