Запчасти Case IH 2230 (39.110.07) - TOW BEHIND PLANTER FIELD HITCH CONNECTIONS (39) - FRAMES AND BALLASTING

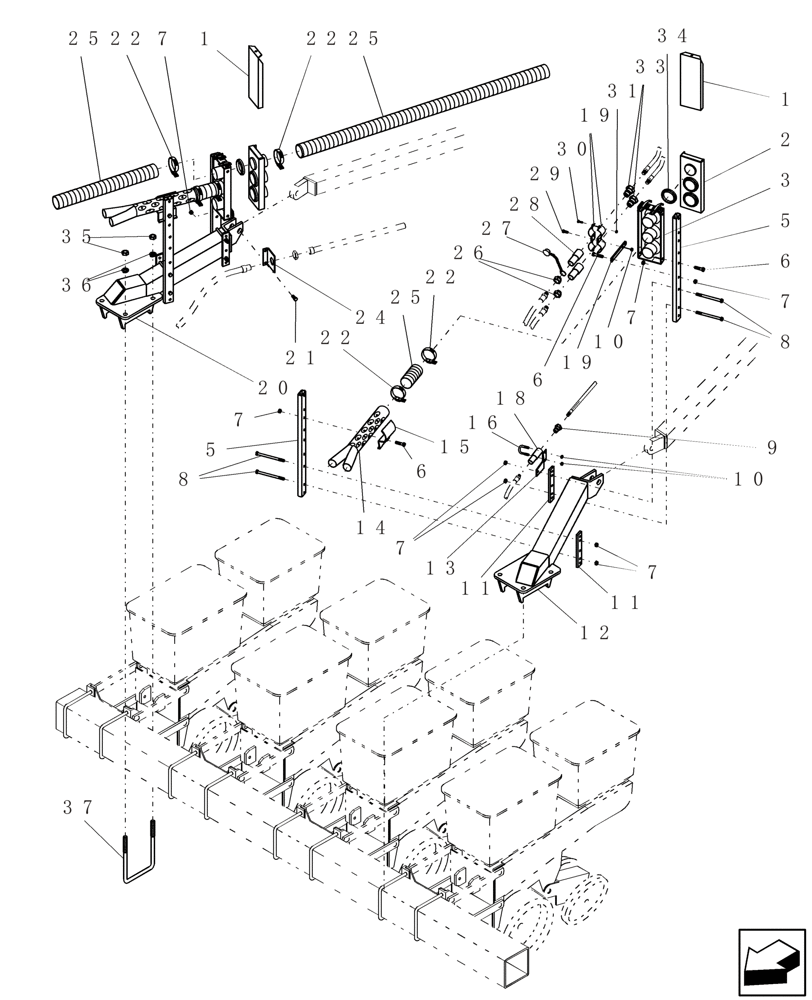

Схема запчастей Case IH 2230 - (39.110.07) - TOW BEHIND PLANTER FIELD HITCH CONNECTIONS (39) - FRAMES AND BALLASTING
22
25
15
13
22
30
9
14
20
8
10
29
11
37
5
28
21
5
1
31
8
18
10
7
26
6
11
22
22
2
6
25
1
35
7
36
7
7
27
19
3
7
24
19
34
12
25
7
16
33
6

Артикул

Название

Примечание

Количество

1

GD-254

COVER

plate hose connect

1шт.

2

GD-673

FITTING

hose connector 2 1/2"

1шт.

3

GD-672A

HOLDER

quick connect 2 1/2" female

1шт.

Includes two 88011, four 87016560, two 5625 and four 4630

1шт.

5

GR-102

SUPPORT TUBE,26" L

tube

1шт.

6

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

7

88902

NUT,3/8"-16

1шт.

8

280258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

1шт.

9

51200890

QUICK MALE COUPLING

3/8"

1шт.

10

281010

LOCK NUT,7/8"-14, GC

1шт.

11

GR-109

STRAP

bolt

1шт.

12

GH-442

BRACKET

mount, field hitch RH

1шт.

13

GH-601

COUPLING

hydraulic mount third line

1шт.

14

GR-101

MANIFOLD

header 1:2 primary 2 1/4" : 1 3/4"

1шт.

15

GR-103

HOSE CLAMP

primary single

1шт.

16

7938

U-BOLT

ur 5/16"-18 x 1 3/8" w x 1 5/8" d

1шт.

18

51200889

COUPLING, QUICK, FEM

3/8"

1шт.

19

GE-202

CLAMP

for two 3/4" couplers

1шт.

20

GH-441

BRACKET

mount, field hitch LH

1шт.

21

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

22

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

24

GH-139

BRACKET

plug support

1шт.

25

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

This is used from the quick connects to the header elbow (Must be ordered in multiples of 100)

1шт.

26

3800

FITTING

reducer hydraulic bushing 3/4" mpt x 1/2" fpt

1шт.

27

6934

PLUG

dust, pioneer coupler - 3/4"

1шт.

28

6935

COUPLING, QUICK, FEM

3/4"

1шт.

29

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

30

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

1шт.

31

280129

NUT,1/4"-20

1шт.

33

6936

QUICK MALE COUPLING,3/4" - 14 NPTF

3/4"

1шт.

Tow Behind

1шт.

34

6177

OIL SEAL

quick connect 2 1/2" id

1шт.

35

280954

NUT,3/4"-10, G5

1шт.

36

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

37

7887

U-BOLT

us 3/4"-10 7 1/8" w 11" d gr5

1шт.

100

GE-518K

HOSE KIT

hose - 2 1/2"

1шт.

Includes splice tube GE-518 and two 214-1444 hose clamps

1шт.

100

GE-518

TUBE

splice hose - 2 1/2"

1шт.

100

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

Выбрано товаров: 40
